DSCF3813

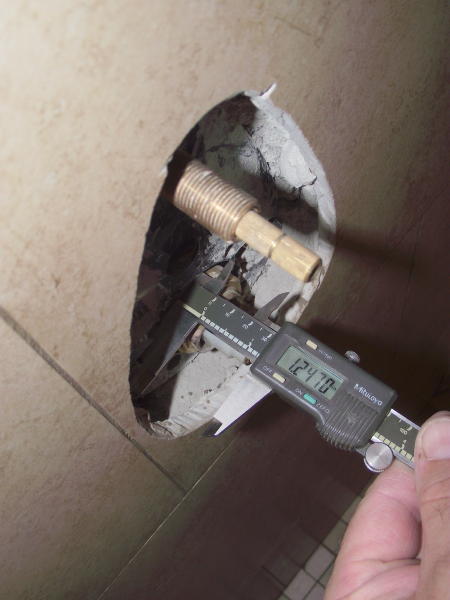

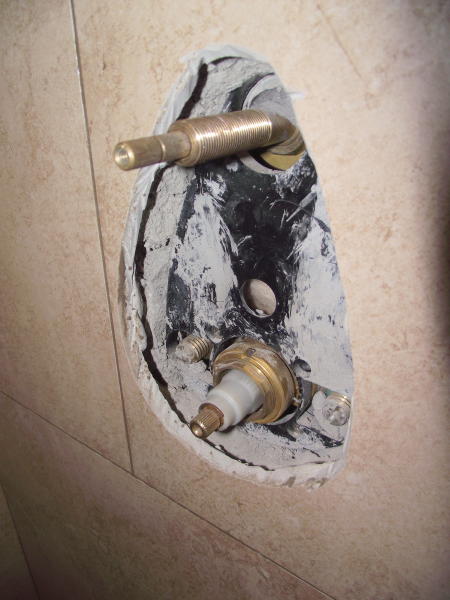

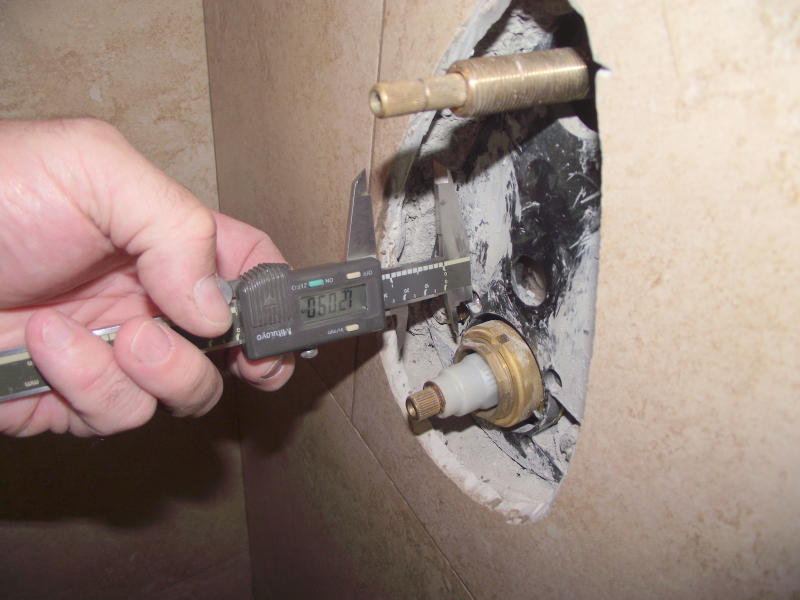

Before floating the walls it became apparent to bring everything into plumb and square  and without moving the shower controls that it would be necessary to use an extension kit. When the valves were installed we had originally planned to use hardihacker thus the placement of the valves in the walls.

I contacted Danze custoemr service where it became apparent that my valves were outdated and had been replaced with newer parts and that there were no extension kits available for them. The customer service agent offered to send me new cartriges which after installation were supposed to allow me to use the extension kits for the current model valves.

Well as it turned out that  the new cartridges with entension kits were only ¼” longer than the old style valves which didn’t solve the problem.after many calls to tech support and several shipments of bits and pieces I was able to put everything together and only had to fabricate the temperature control stop part.

This is a Danze D5600 40 BNT Shower valve and trim kit.

DSCF3814

FinePix S1800
10/14/2012 11:52:27 AM

DSCF3815

FinePix S1800
10/14/2012 11:53:03 AM

DSCF3783

FinePix S1800
10/14/2012 11:41:16 AM

DSCF3781

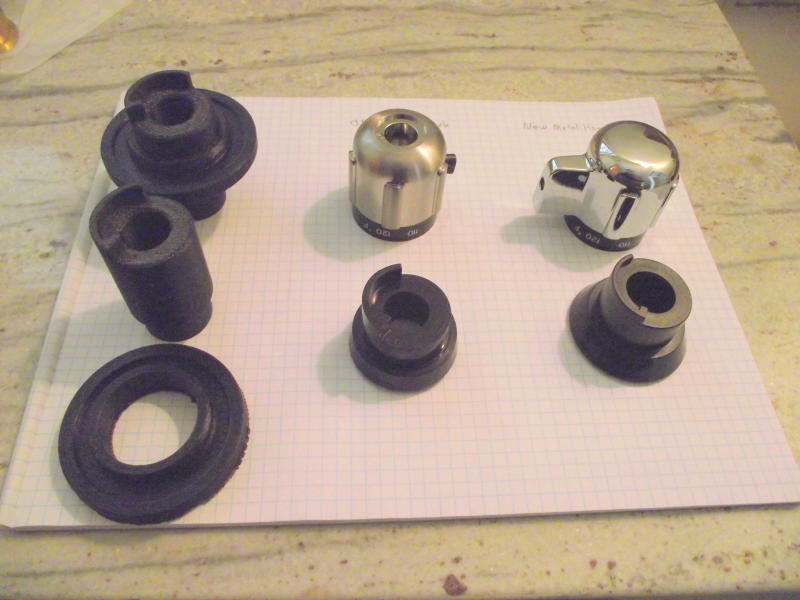

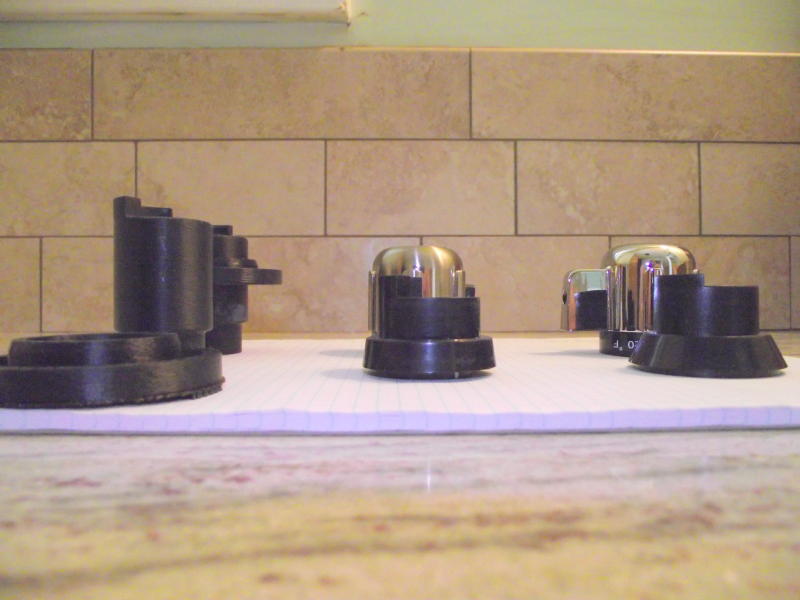

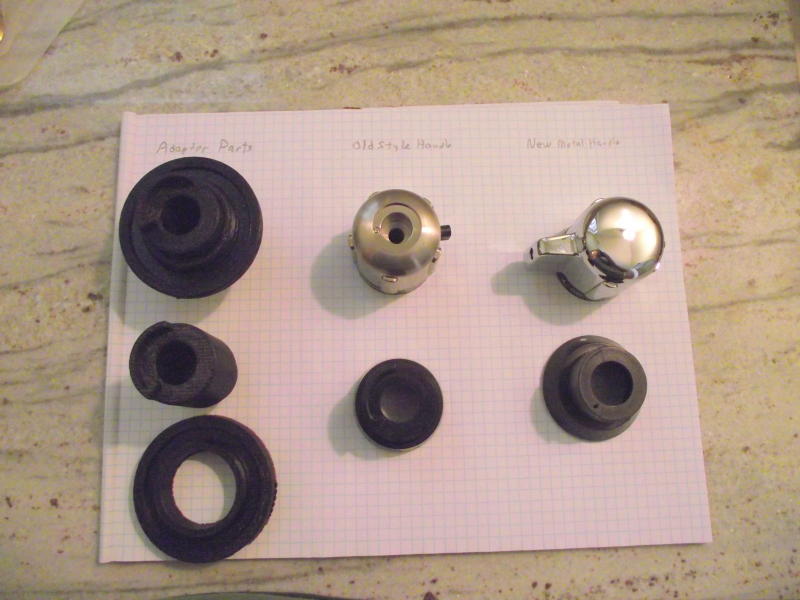

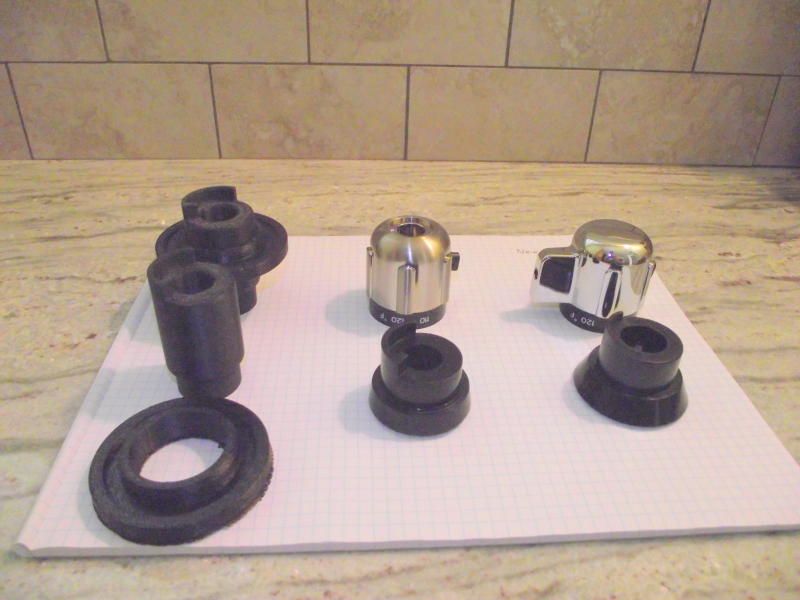

Here you can see the adapter pieces as well as the original temp control knob and the new style metal temp contrl handle.

DSCF3784

FinePix S1800
10/14/2012 11:41:30 AM

DSCF3785

FinePix S1800
10/14/2012 11:41:41 AM

DSCF3786

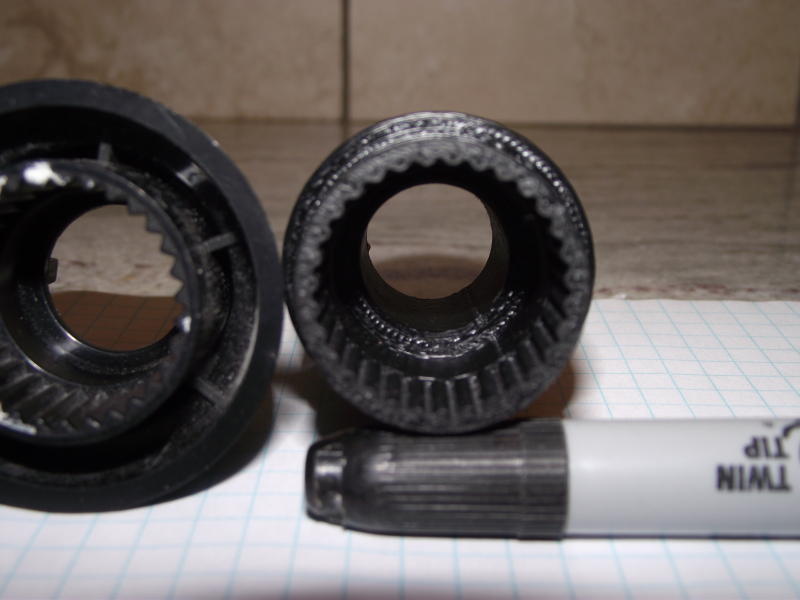

DSCF3803

FinePix S1800
10/14/2012 11:50:06 AM

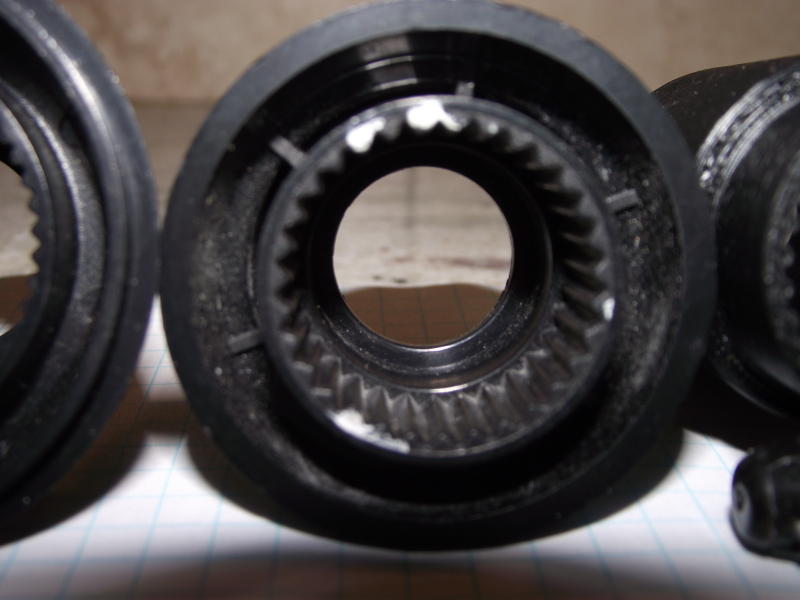

DSCF3805

FinePix S1800
10/14/2012 11:50:26 AM

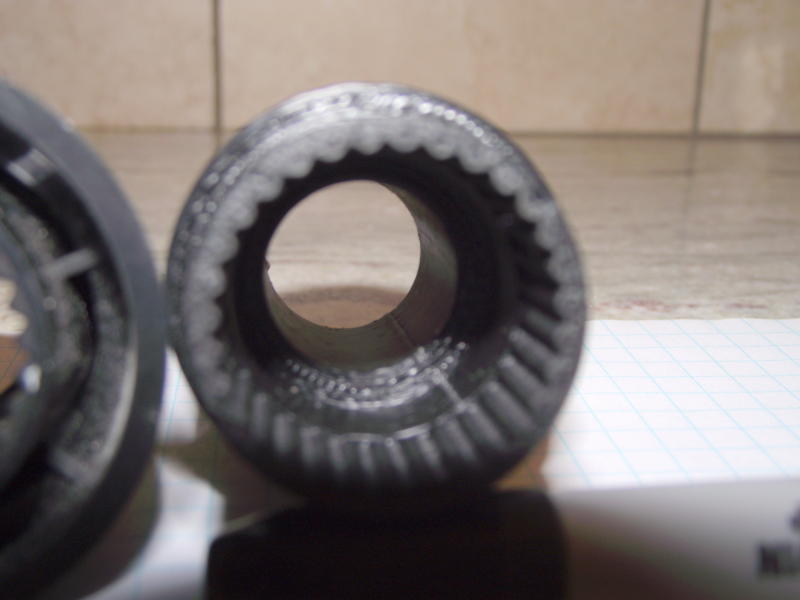

DSCF3806

FinePix S1800
10/14/2012 11:50:33 AM

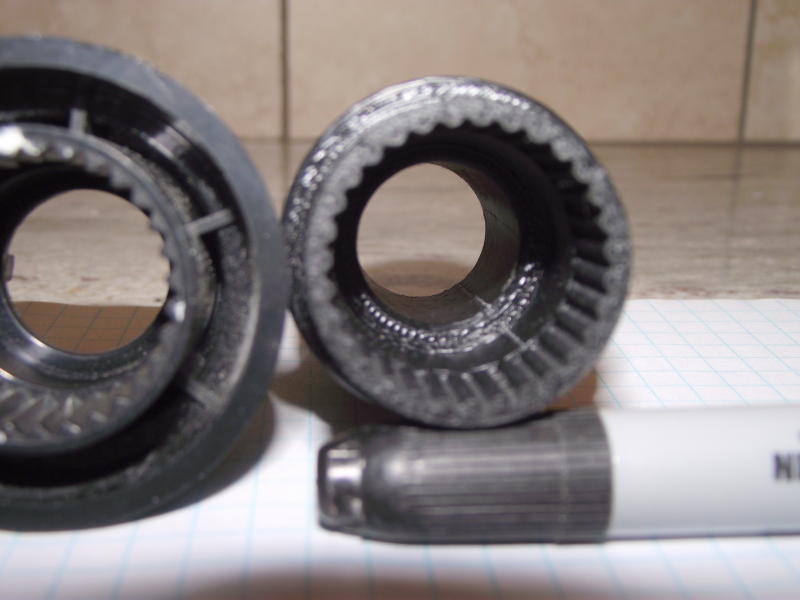

DSCF3807

FinePix S1800
10/14/2012 11:50:39 AM

DSCF3808

FinePix S1800
10/14/2012 11:50:47 AM

DSCF3811

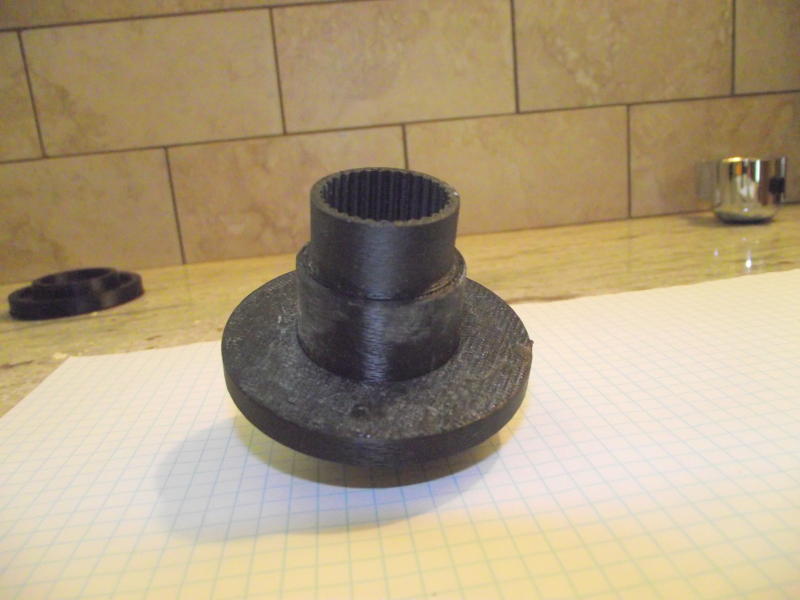

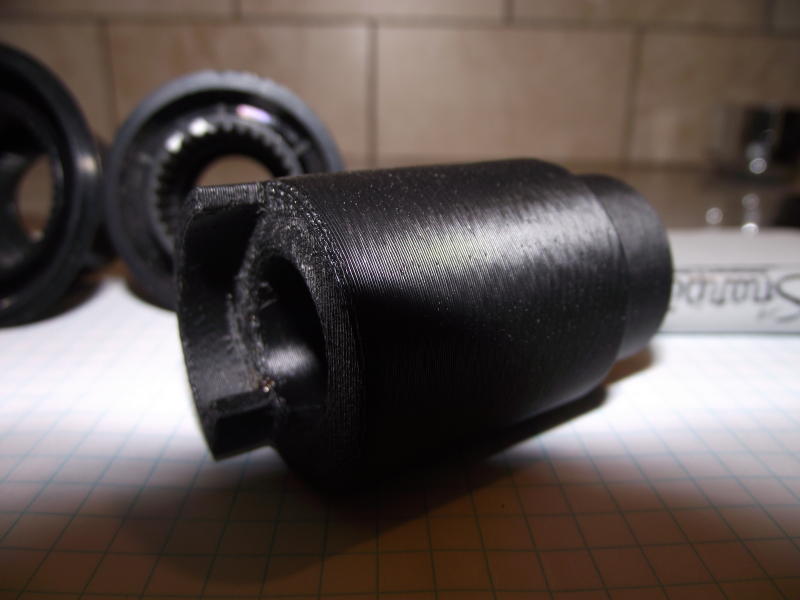

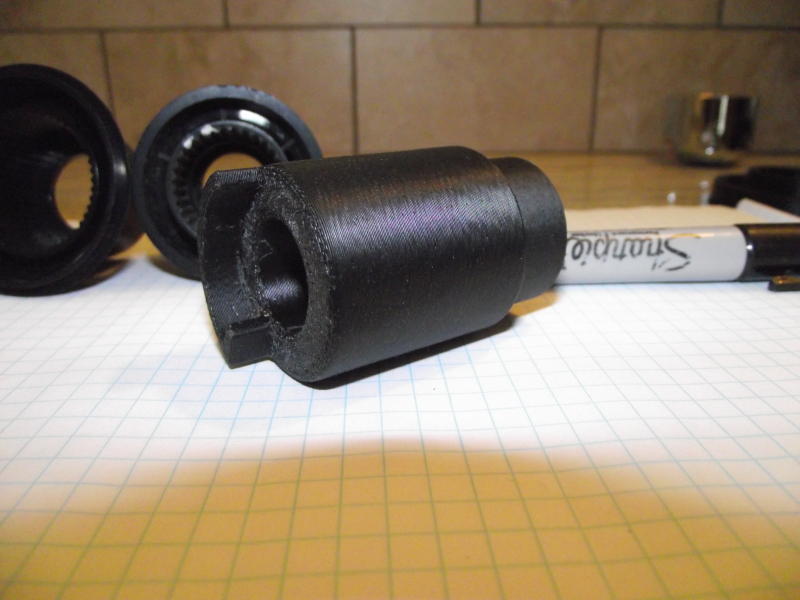

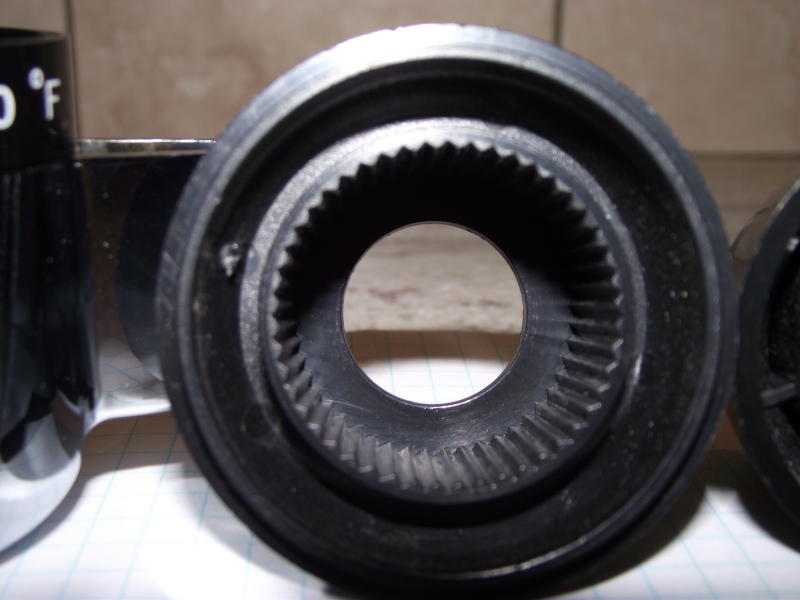

This is the adapter piece that was designed and printed using a 3d FDM style printer.

DSCF3812

FinePix S1800
10/14/2012 11:51:37 AM

DSCF3802

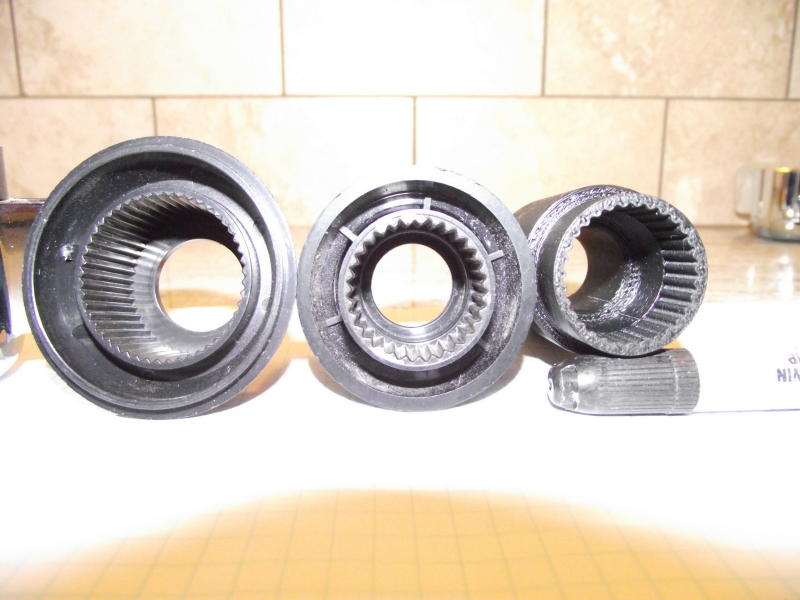

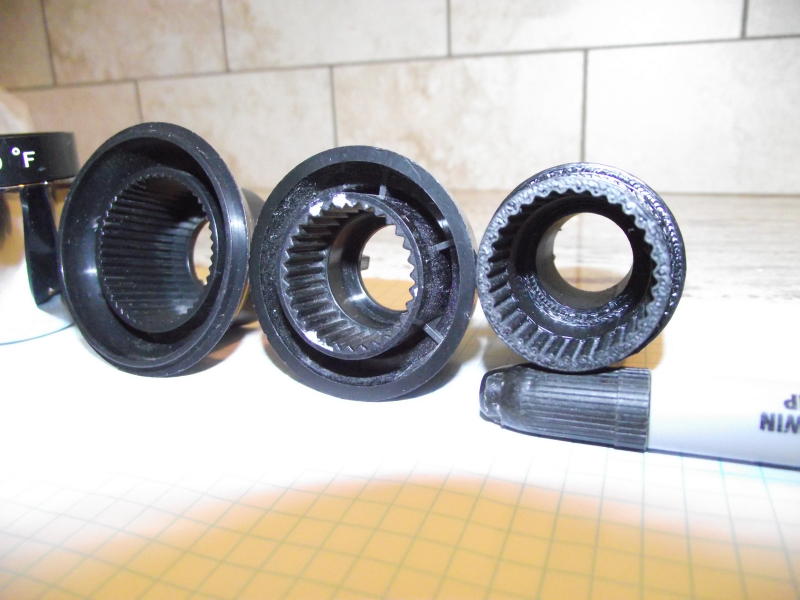

Here you can see the new style stop, the old style stop and the 3d printed stop on the right.

DSCF3801

FinePix S1800
10/14/2012 11:49:41 AM

DSCF3800

DSCF3799

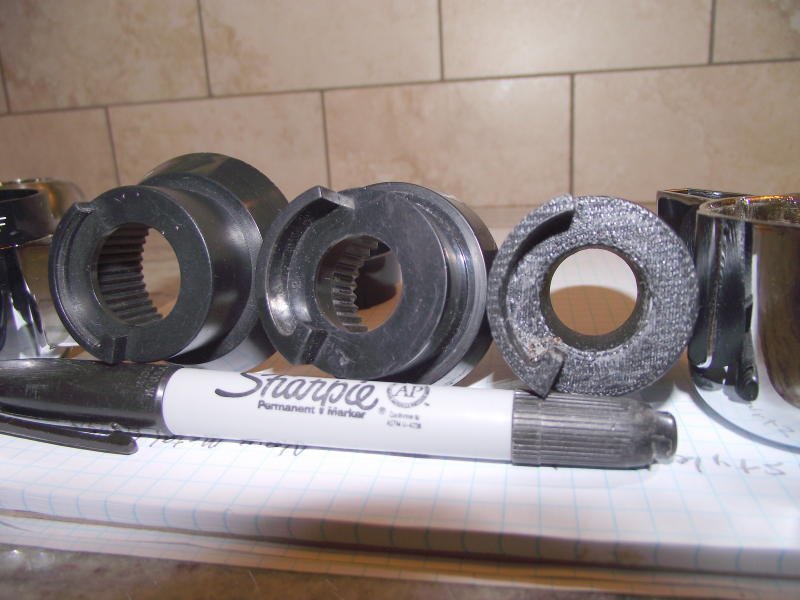

Here is the front view of the temp control stops. New style on left, old in the middle and the 3d printed piece on the right.

DSCF3798

DSCF3797

FinePix S1800
10/14/2012 11:47:03 AM

DSCF3793

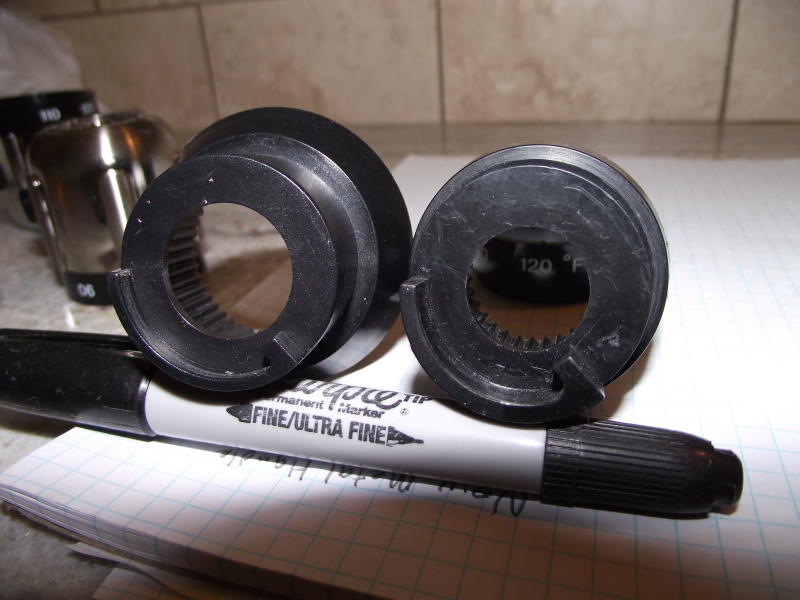

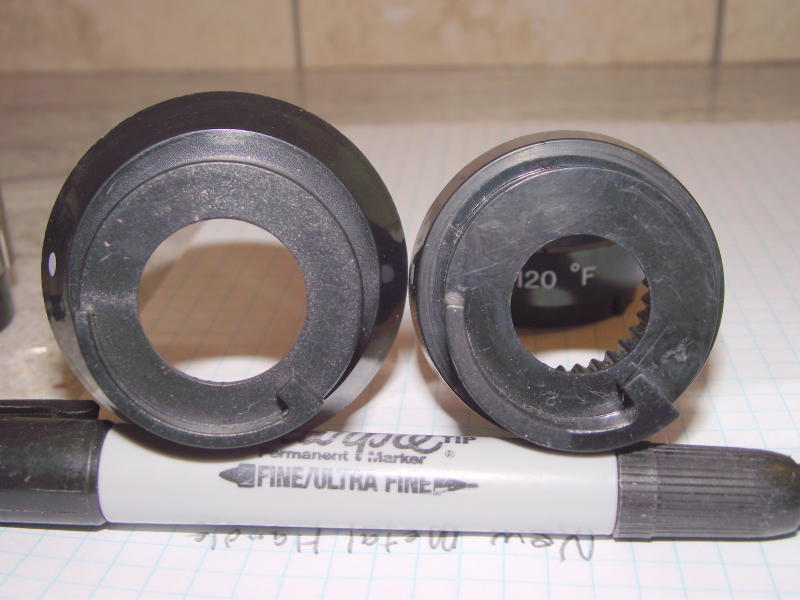

Here you can see the difference between the new style on the left and the old on the right. The stop wall thickness is thicker on the old style as well as on the 3d printed piece.

DSCF3791

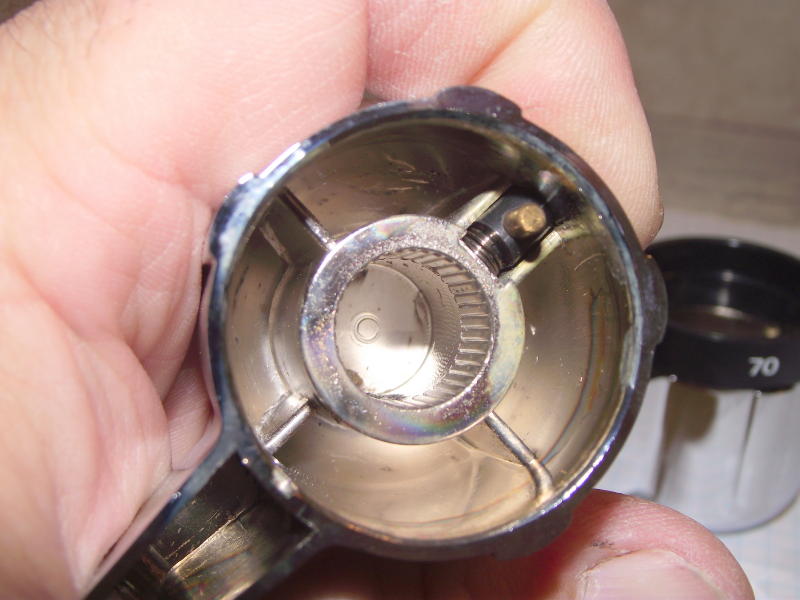

This is the new style metal temp control handle. It uses the same button and spring combination as the old style. The new style uses a larger diameter internal spline and therefore the spring collapsed height dosent allow the pin to move as far so the reduced the wall thickness of the stop to accommodate this decreased travel.

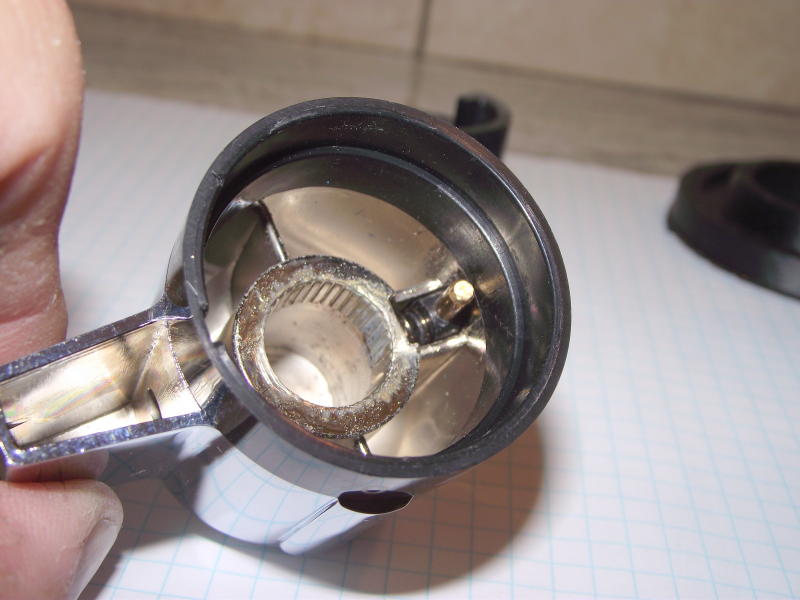

DSCF3788

FinePix S1800
10/14/2012 11:42:51 AM

DSCF3790

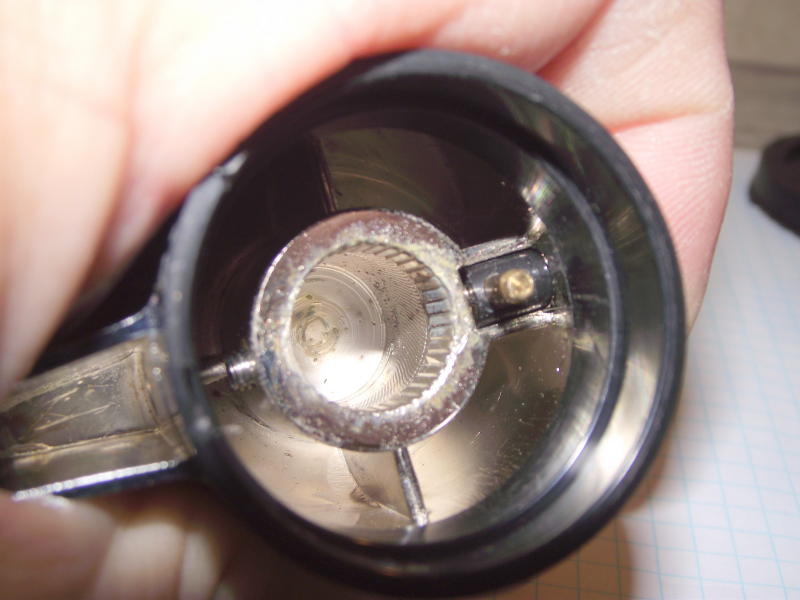

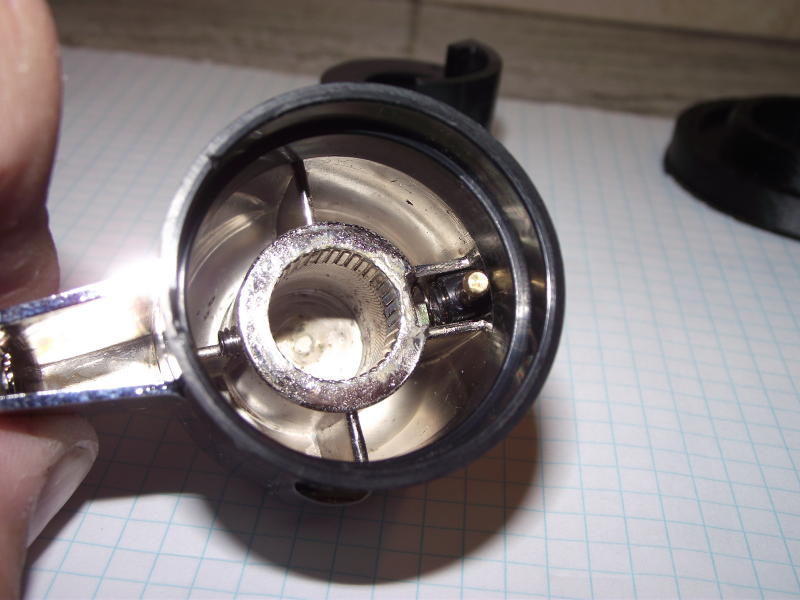

I didn’t want to reduce the 3d printed parts stop wall thickness due to strength limitations of the process and material. I simply removed 1 ¼ coils from the spring to gain the necessary travel of the pin to clear the stop when overide is desired.

DSCF3789

FinePix S1800
10/14/2012 11:42:58 AM

DSCF3837

An uncut spring

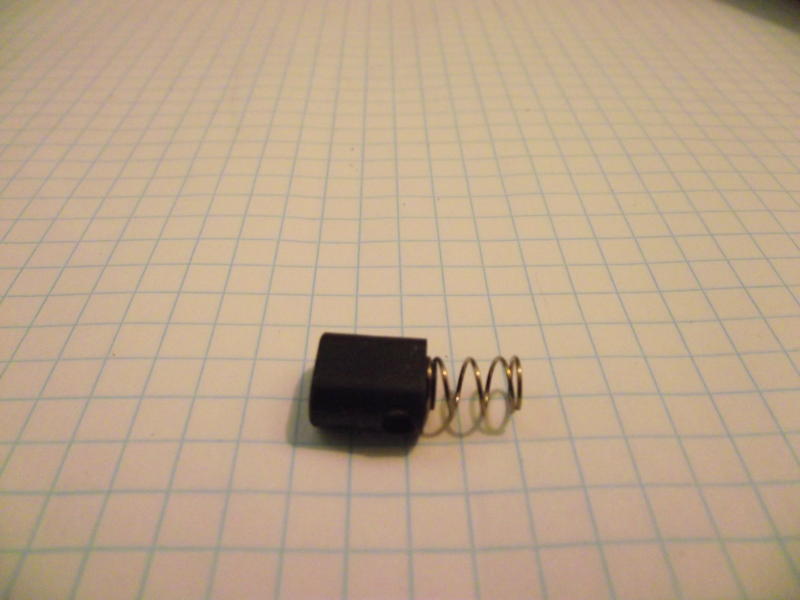

DSCF3836

FinePix S1800
10/14/2012 12:33:57 PM

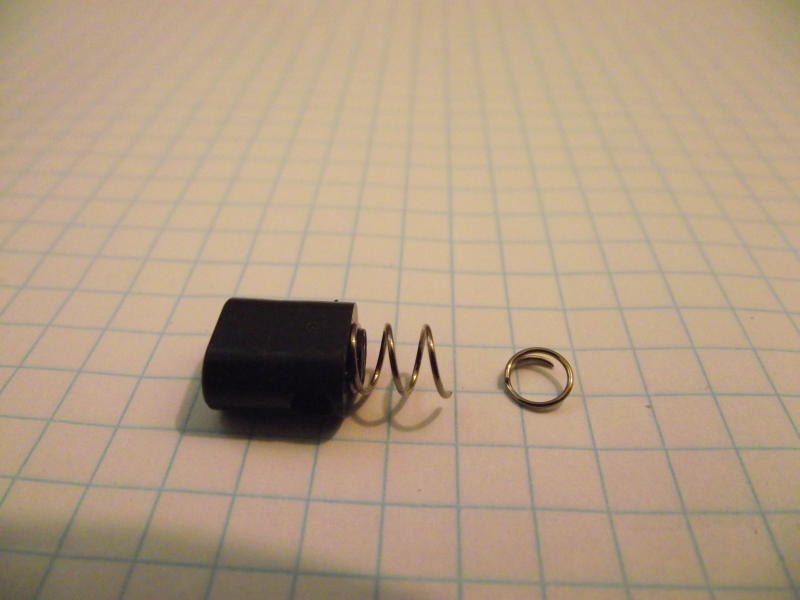

DSCF3838

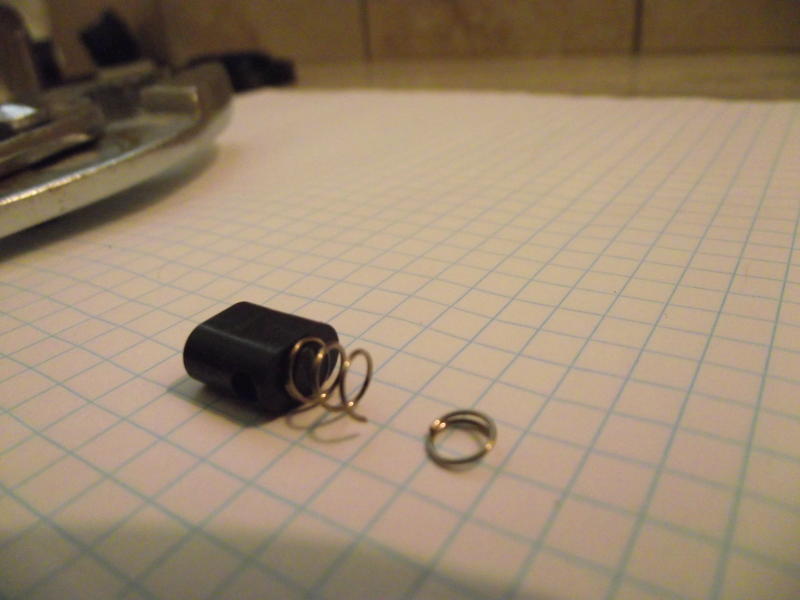

! ¼ coils cut from the spring.

DSCF3839

FinePix S1800
10/14/2012 12:34:54 PM

DSCF3792

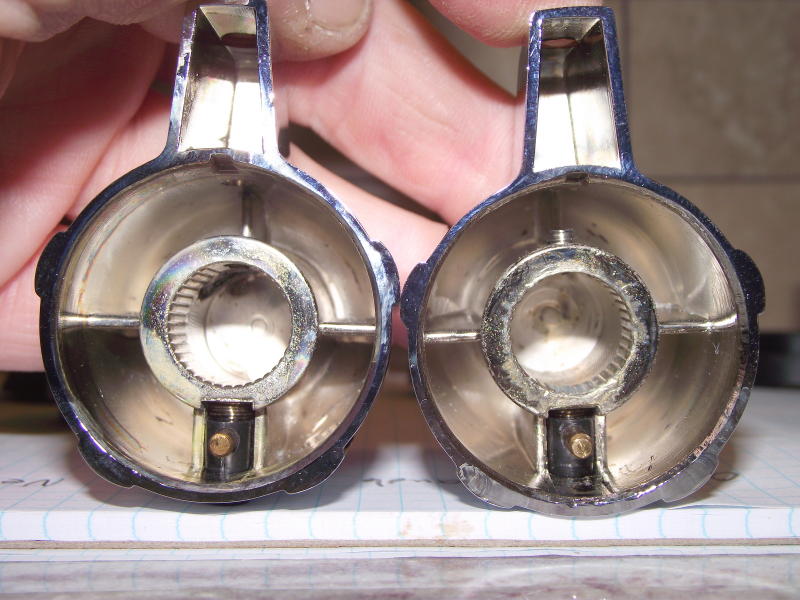

Un-Cut spring stack up shown on the left and cut spring stack up shown on the right. This adds the necessary clearance to go into temp bypass.

DSCF3816

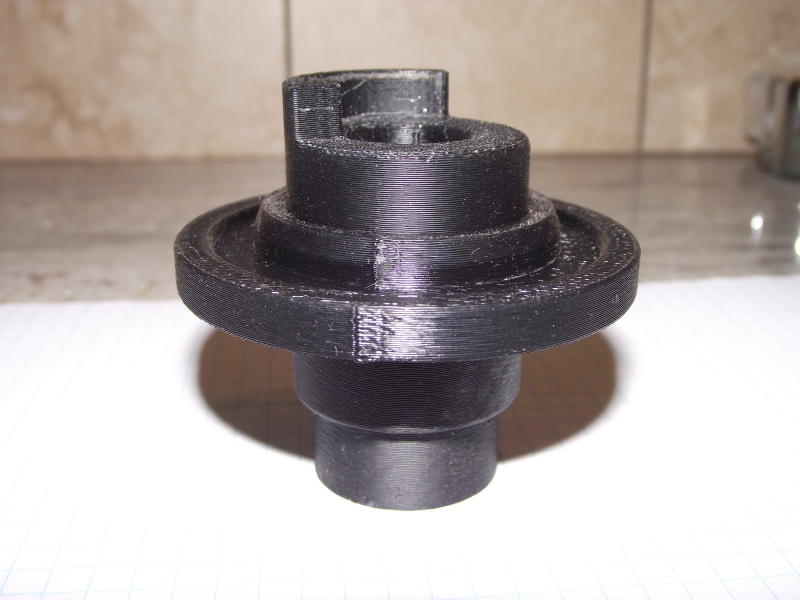

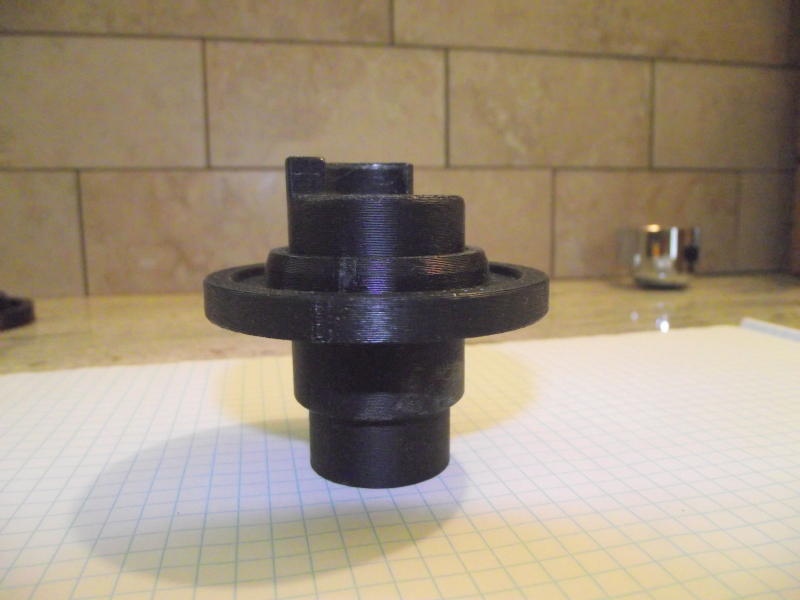

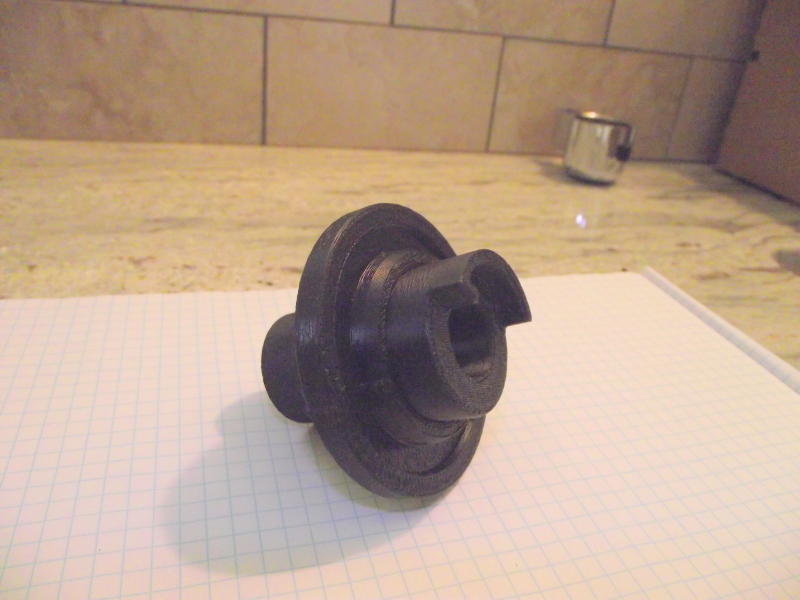

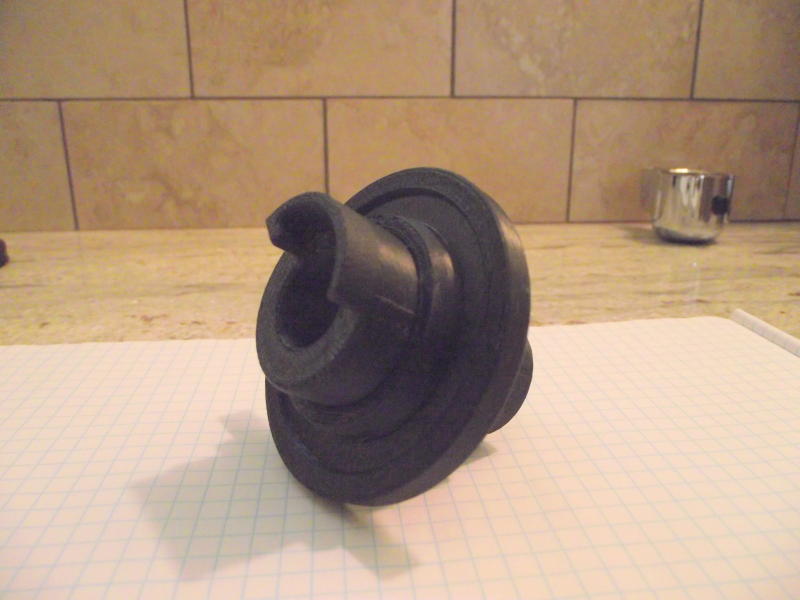

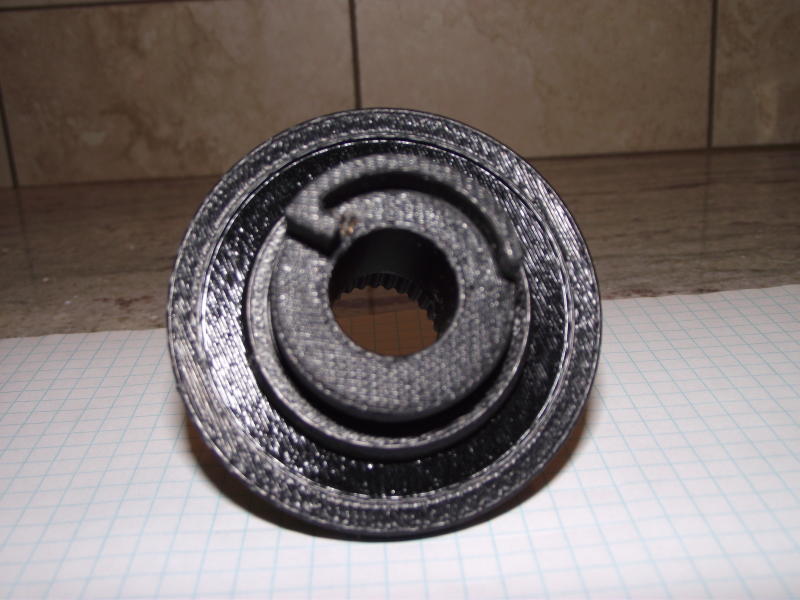

Here is the stop with an added ring bezel which has a well that is filled with silicone to provide a watertight seal between the back of the escutcheon plate and the stop. This should completely eliminate any possibility of water ingress. This would not be necessary if I had the new style escutcheon plate which has the stop installed from the outside not the inside.

DSCF3817

FinePix S1800
10/14/2012 11:53:56 AM

DSCF3828

FinePix S1800
10/14/2012 11:55:31 AM

DSCF3824

FinePix S1800
10/14/2012 11:54:56 AM

DSCF3826

FinePix S1800
10/14/2012 11:55:12 AM

DSCF3827

FinePix S1800
10/14/2012 11:55:20 AM

DSCF3829

FinePix S1800
10/14/2012 12:30:19 PM

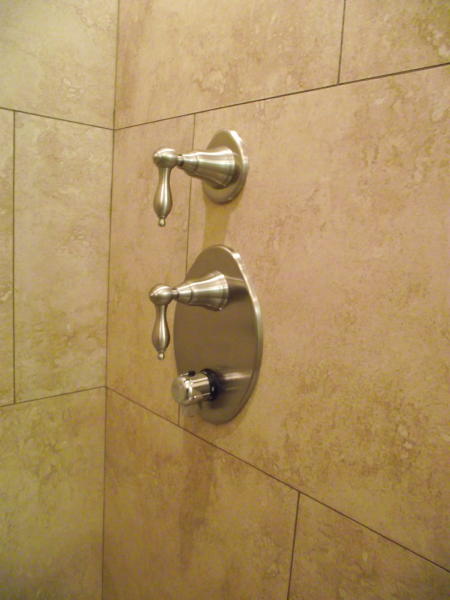

DSCF3830

FinePix S1800
10/14/2012 12:30:27 PM

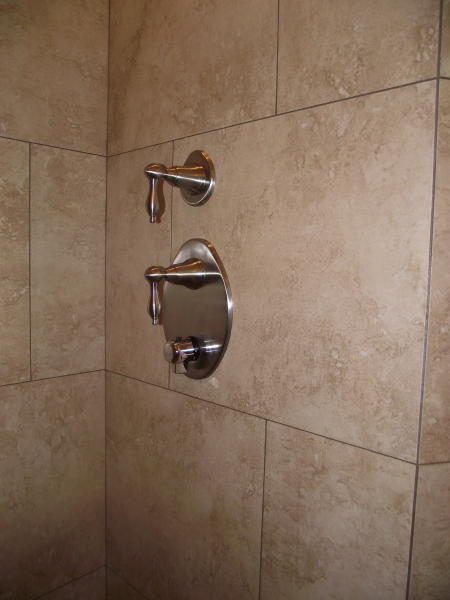

DSCF3831

FinePix S1800
10/14/2012 12:30:35 PM

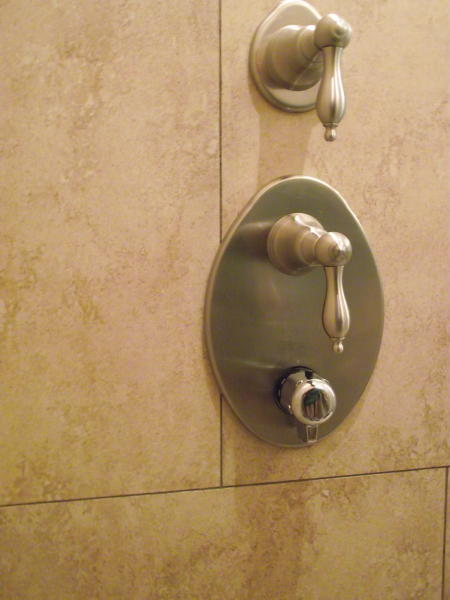

DSCF3833

FinePix S1800
10/14/2012 12:31:15 PM

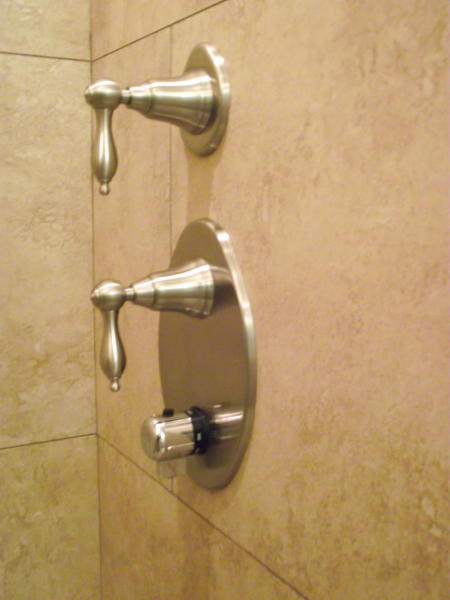

DSCF3835

FinePix S1800
10/14/2012 12:31:28 PM

DSCF3840

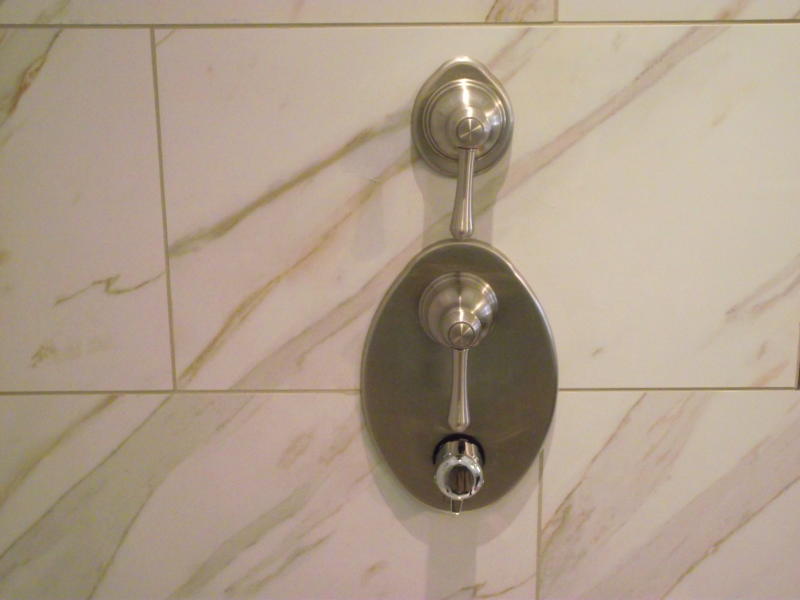

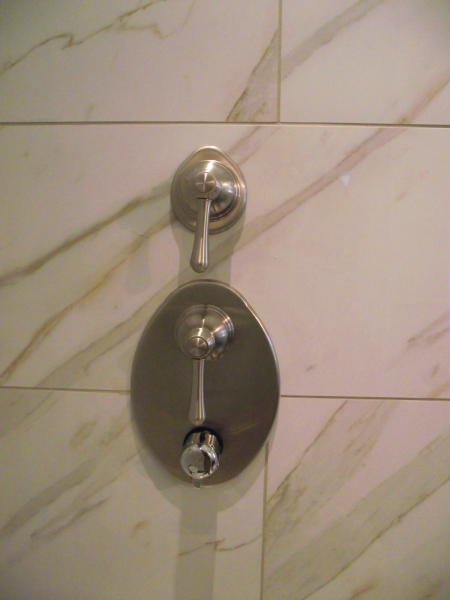

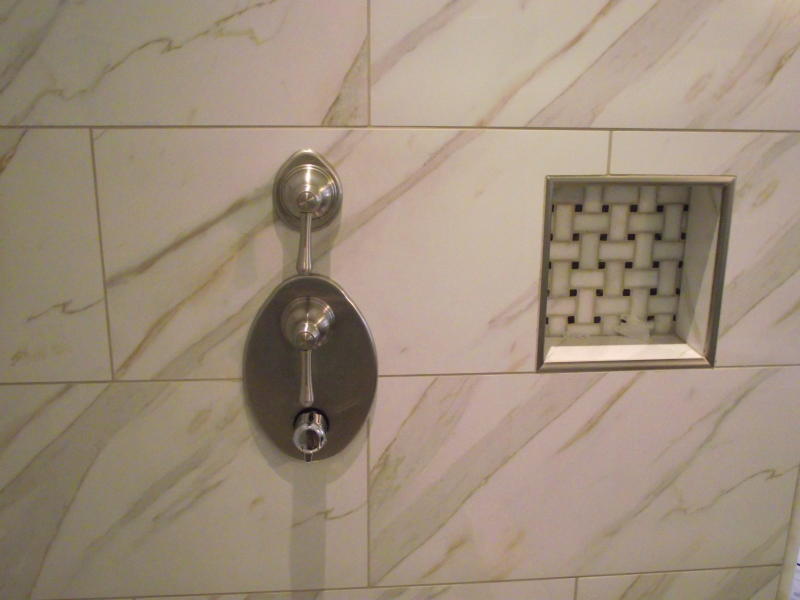

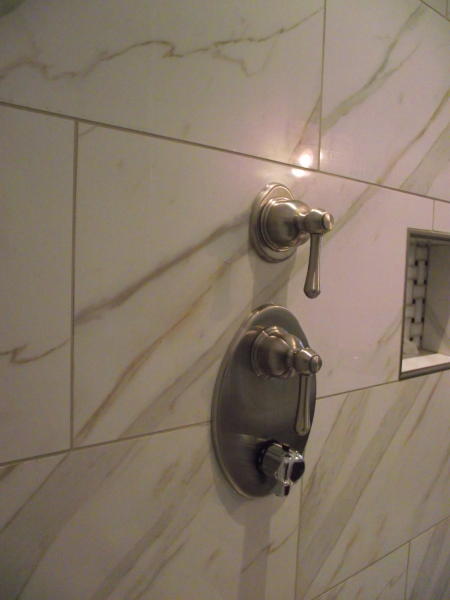

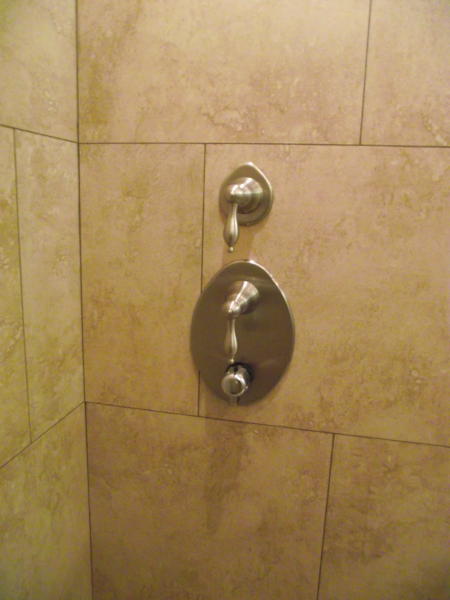

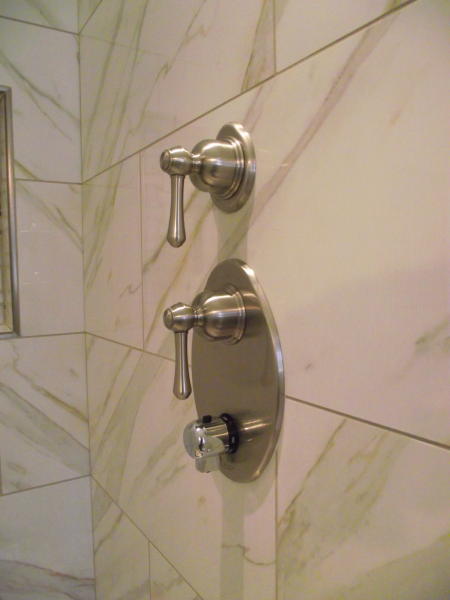

In the master shower I was able to install all of the new style parts and make it work by placing the new style stop behind the escutcheon plate  and sealing it with silicone.

DSCF3841

FinePix S1800
10/14/2012 1:42:33 PM

DSCF3842

FinePix S1800
10/14/2012 1:42:39 PM

DSCF3843

FinePix S1800
10/14/2012 1:42:50 PM

DSCF3844

FinePix S1800
10/14/2012 1:43:00 PM

DSCF3845

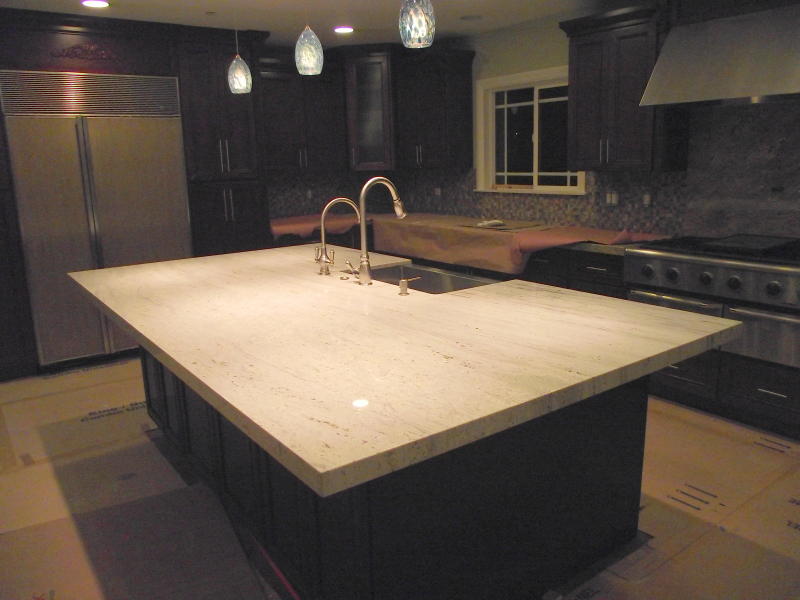

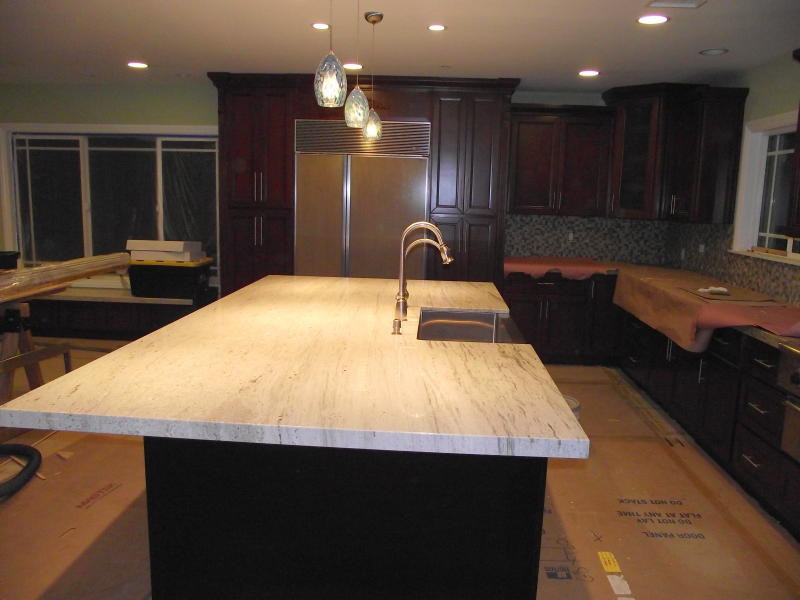

Water creations faucet. Hot and cold filtered drinking water comes from the smaller bar style faucet on the left in the picture

DSCF3846

FinePix S1800
10/14/2012 11:49:15 PM

DSCF3847

FinePix S1800
10/14/2012 11:49:24 PM

DSCF3848

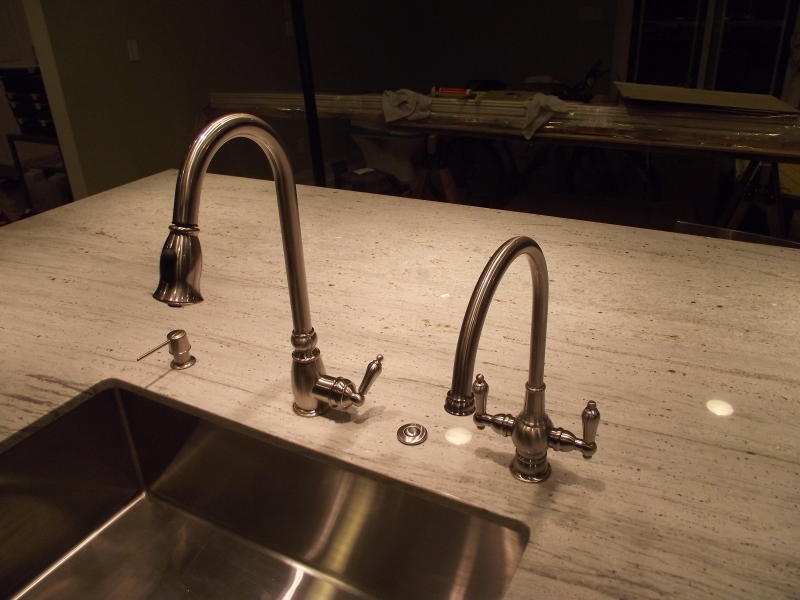

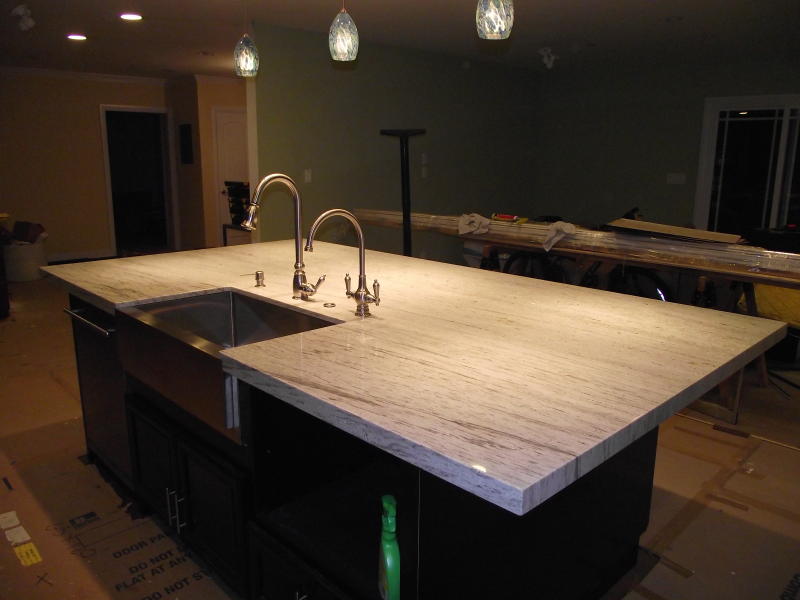

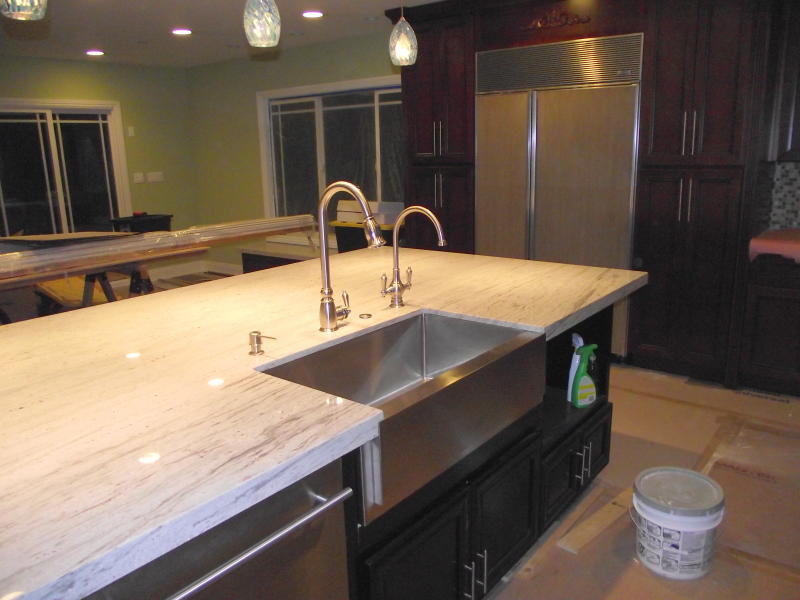

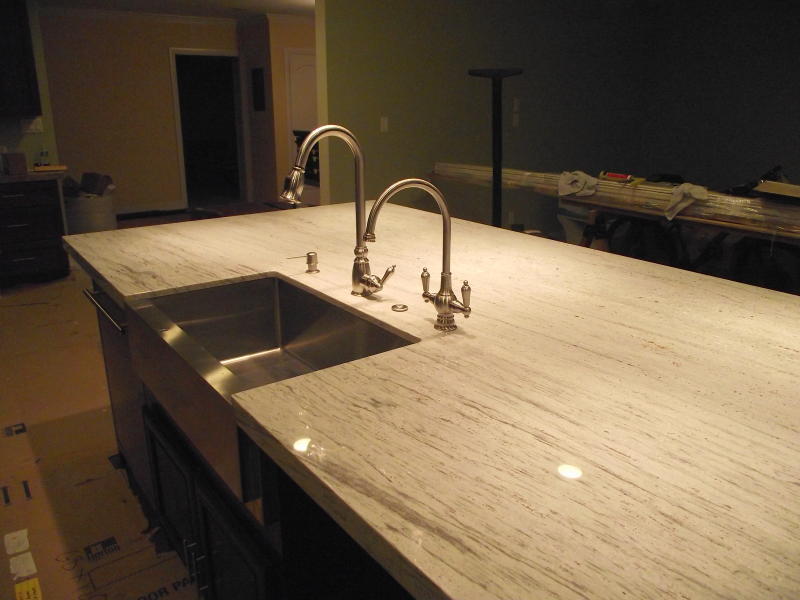

Soap dispencer on the left and air actuated disposal switch between the two faucets.

Refrigerator skins will be changed to match once they are back in stock at the cabinet shop.
