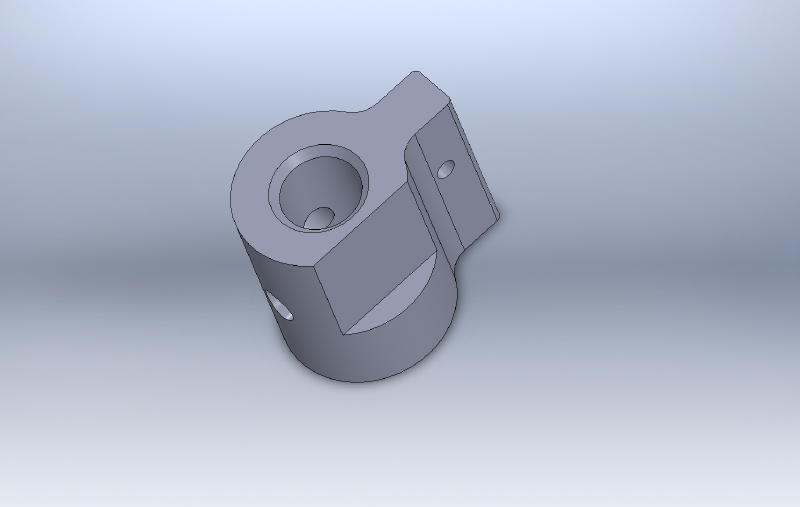

33070796-1
|
|
Drill
and ream  0.1878” Drill 0.052”
4-40 tapped holes 2 pl
|
|
5/9/2013 5:07:39 PM
|
|
|
|
|

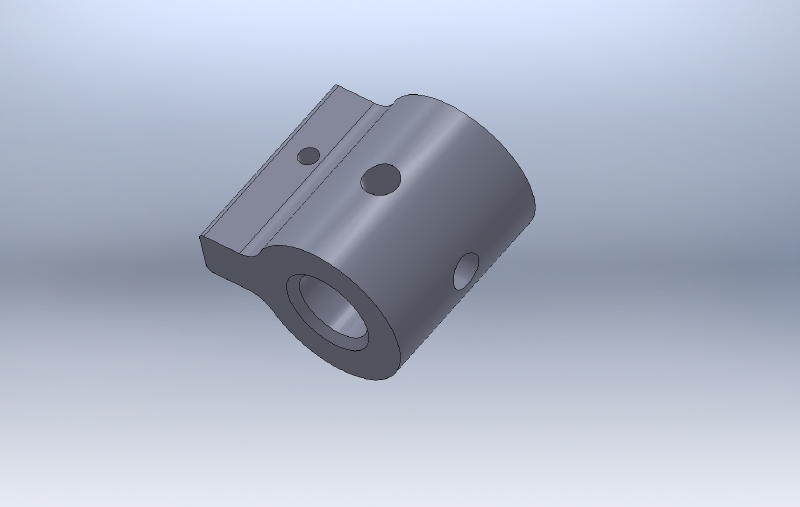

33070796-2
|
|
|
|
|
5/9/2013 5:07:39 PM
|
|
|
|
|
|
|
|

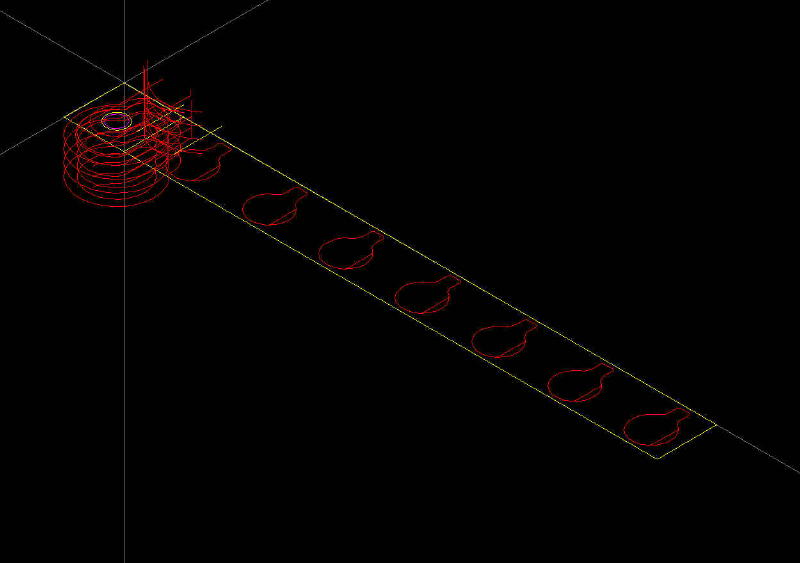

gp1
|
|
Tool
path created for a single part.
Tool path was then multiplied
x8 to machine
8 parts in the vise using the
make multiple
macro in Geopath.
|
|
|
|
|
|

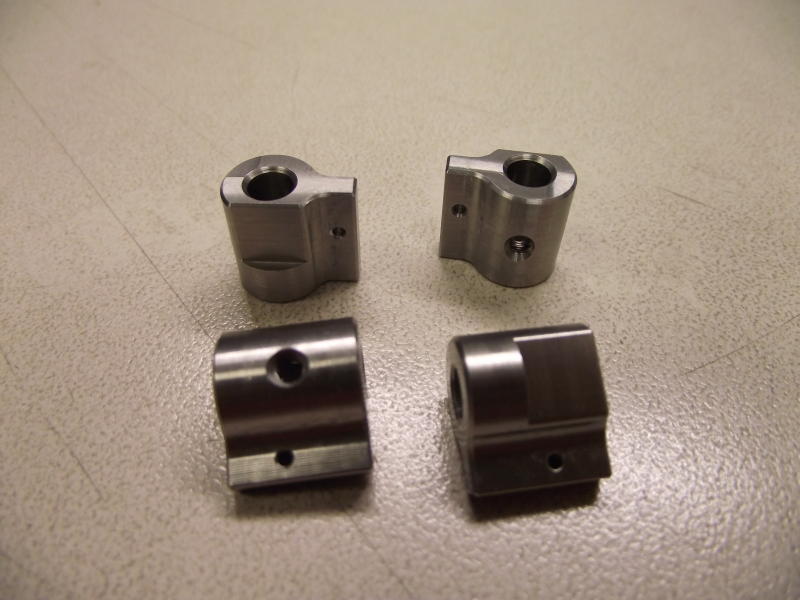

DSCF3984
|
|
|
|
|
FinePix S1800
5/9/2013 4:28:08 PM
|
|
|
|
|
|
|
|

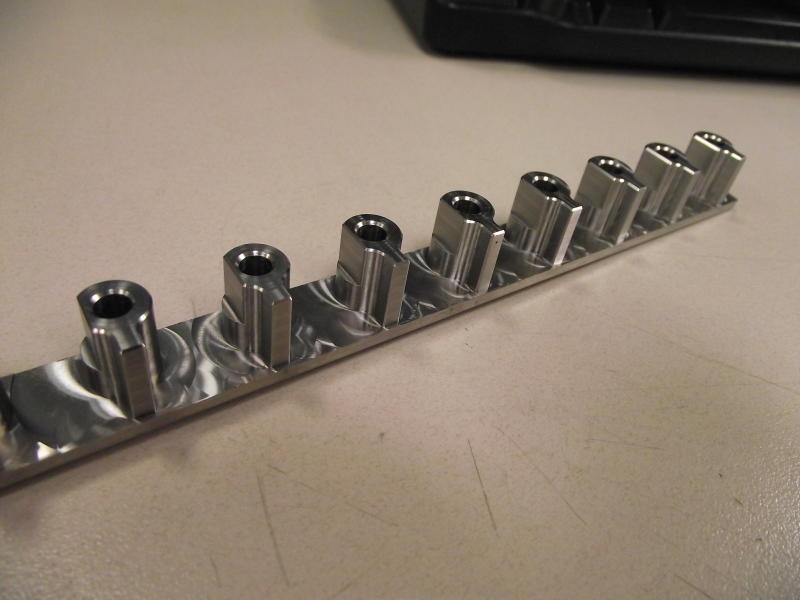

DSCF5002
|
|
8 Parts machined per cycle.
|
|
FinePix S1800
5/9/2013 5:53:15 PM
|
|
|
|
|

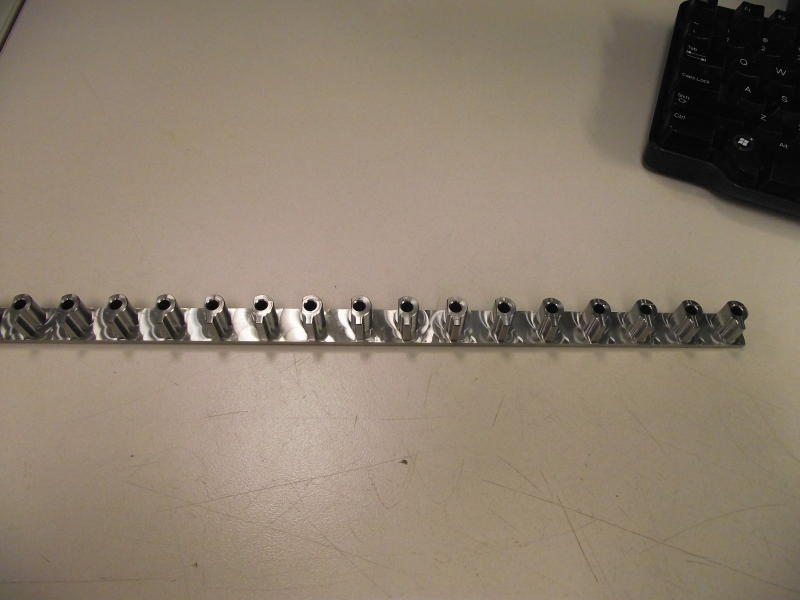

DSCF5001
|
|
After each cycle the bar was
slid down and re-clamped
And run again
|
|
|
FinePix S1800
5/9/2013 5:53:02 PM
|
|
|
|
|
|
|
|

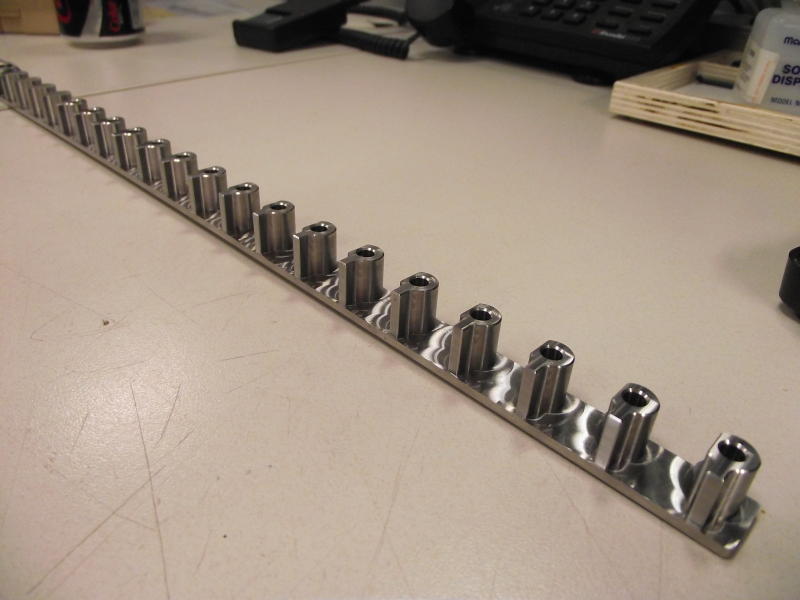

DSCF5003
|
|
|
|
FinePix S1800
5/9/2013 5:53:25 PM
|
|
|
|
|

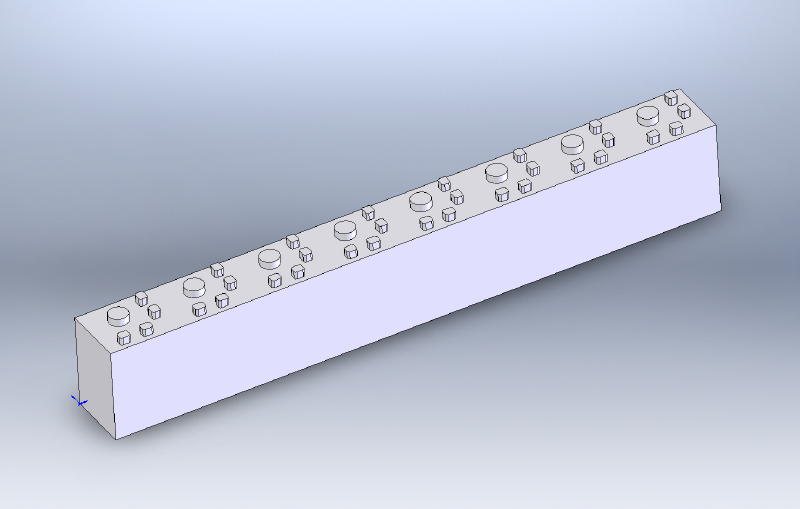

3070796_drill_tap_fixt-1
|
|
Fixture to allow part to be indexed for
drilling and tapping
|
|
|
5/9/2013 5:07:39 PM
|
|
|
|
|
|
|
|

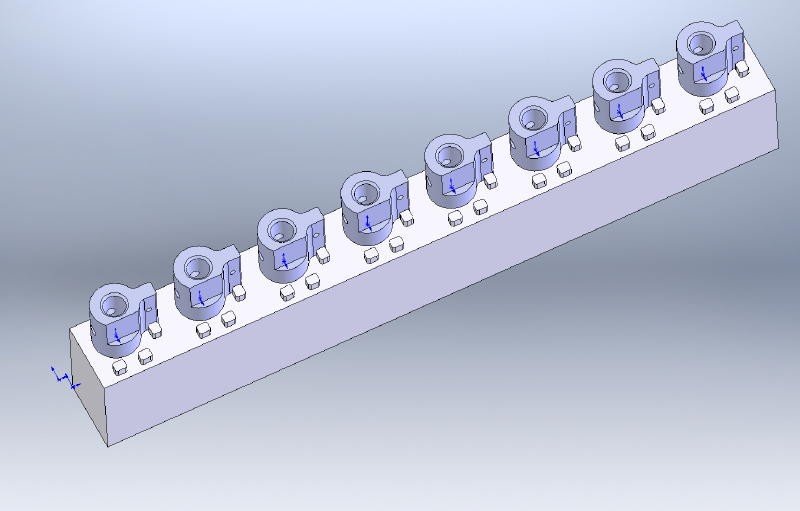

33070796_drill_tap_fixt-2
|
|
3d Model of parts on fixture
for drilling and tapping the 4-40 hole and the 0.052” drilled hole
|
|
5/9/2013 5:07:39 PM
|
|
|
|
|

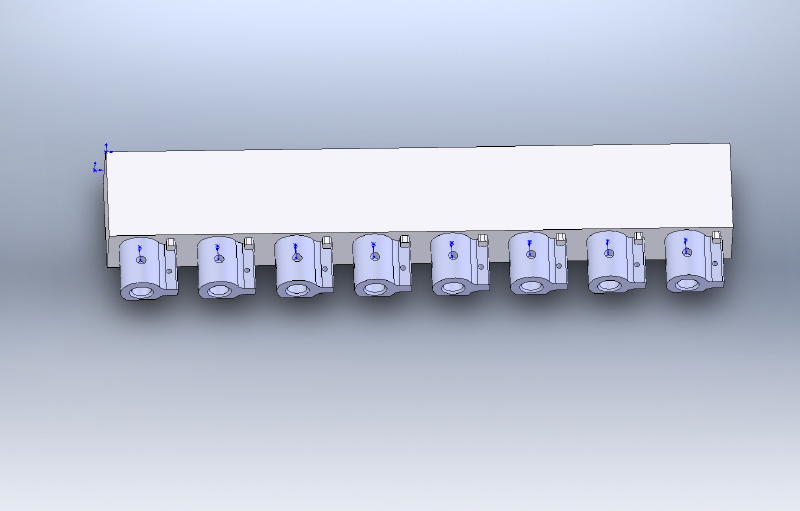

33070796_drill_tap_fixt-3
|
|
Fixture
is used with parts in this orientation in the vise for the first drilling
and tapping operation.
|
|
|
5/9/2013 5:07:39 PM
|
|
|
|
|
|
|
|

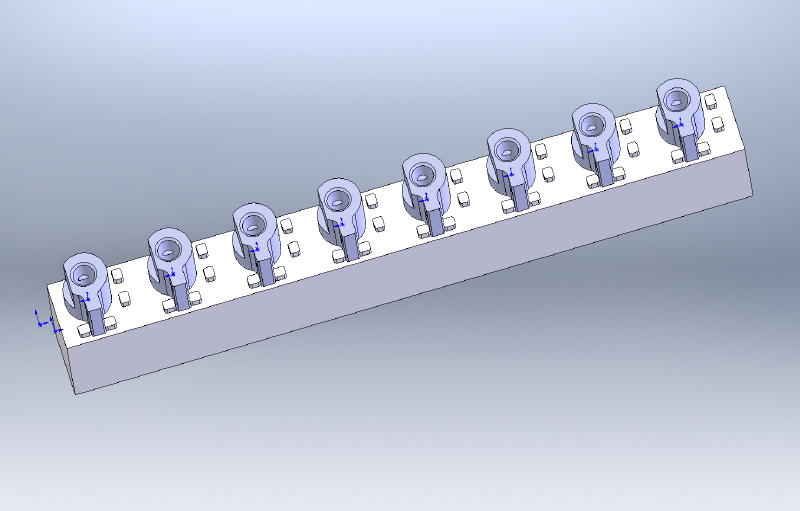

33070796_drill_tap_fixt3
|
|
3d Model of parts on fixture
for drilling and tapping the second 4-40 hole.
|
|
5/9/2013 5:07:39 PM
|
|
|
|
|

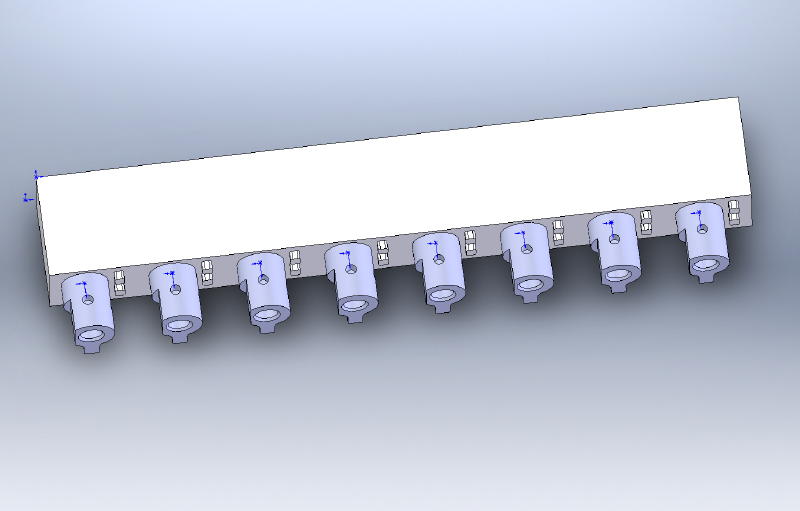

33070796_drill_tap_fixt4
|
|
Fixture is used with parts in this orientation
in the vise for the second drilling and tapping operation.
|
|
|
5/9/2013 5:07:39 PM
|
|
|
|
|
|
|
|

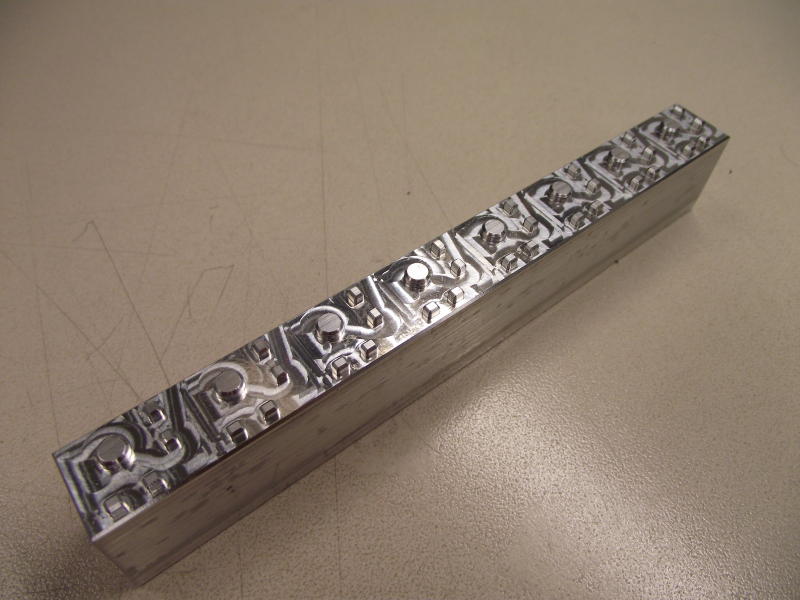

DSCF3994
|
|
Actual
machined fixture
|
|
FinePix S1800
5/9/2013 4:34:22 PM
|
|
|
|
|

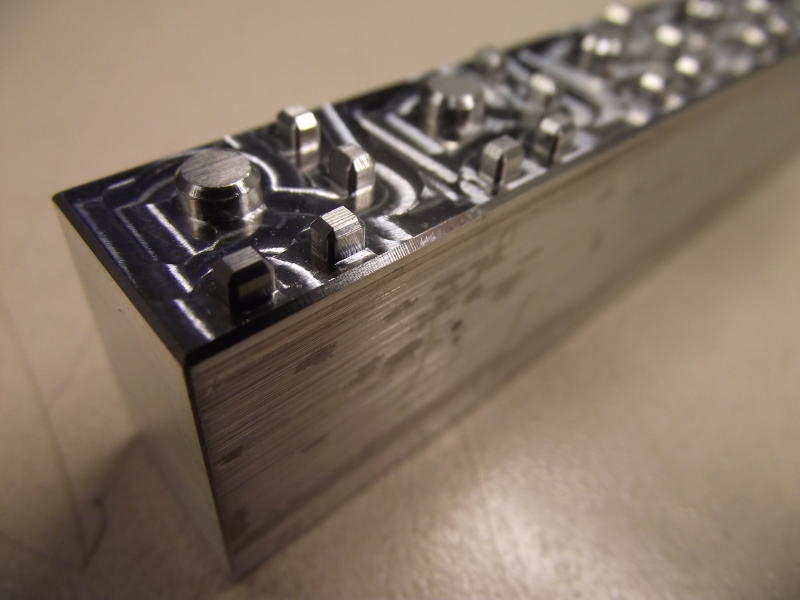

DSCF3993
|
|
Actual machined fixture
|
|
|
FinePix S1800
5/9/2013 4:34:12 PM
|
|
|
|
|
|
|
|

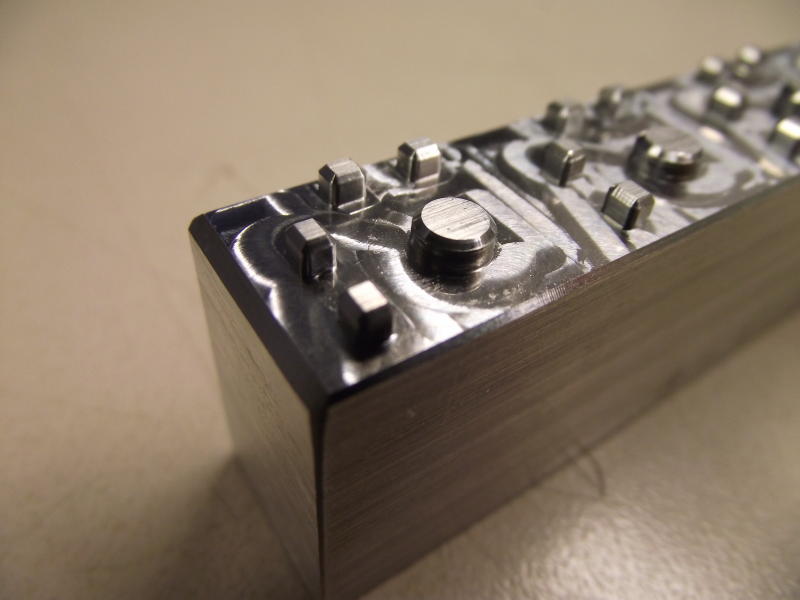

DSCF3992
|
|
Close-up of Actual
machined fixture
|
|
FinePix S1800
5/9/2013 4:34:00 PM
|
|
|
|
|

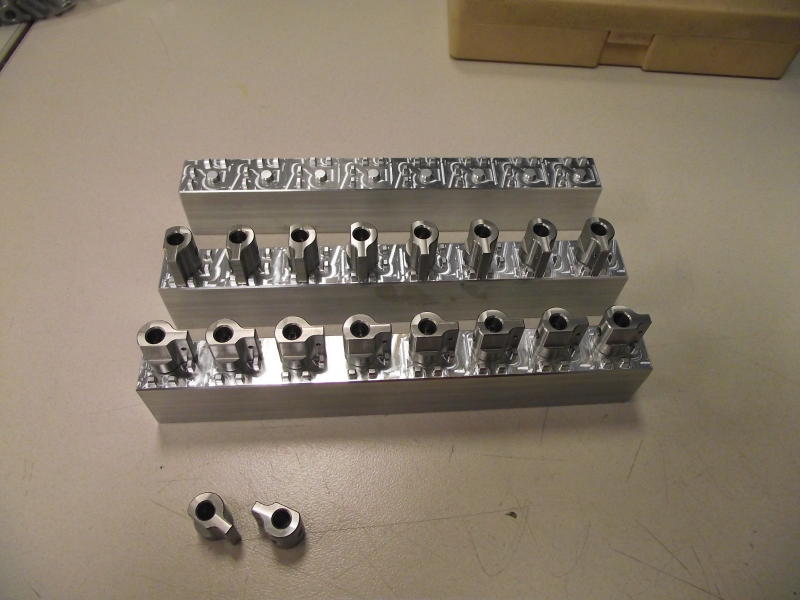

DSCF3981
|
|
Close-up of Actual
machined fixture
|
|
|
FinePix S1800
5/9/2013 4:27:11 PM
|
|
|
|
|
|
|
|

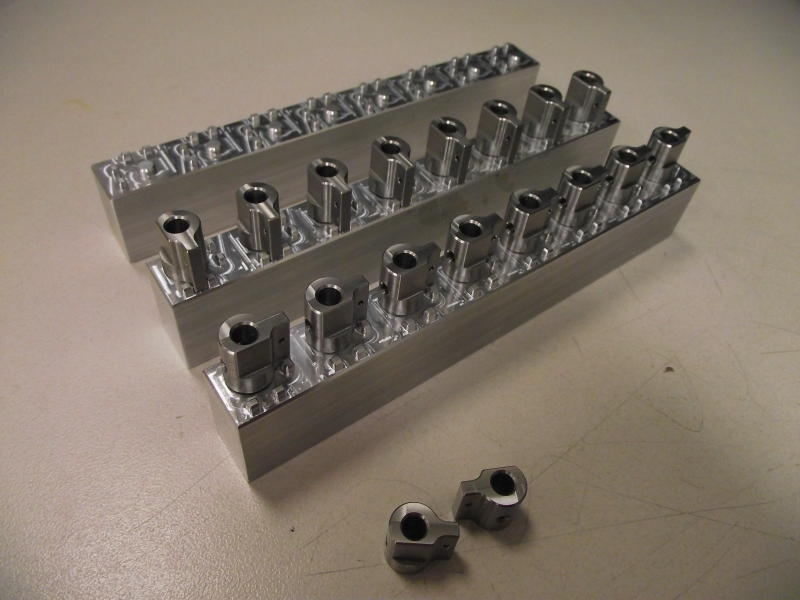

DSCF3982
|
|
Parts in each orientation on
fixture blocks. I used a 5/8 Snapjaws step jaw
with a 1/32 lexan strip between the moveable
jaw and the parts to ensure a good grip across all parts
|
|
FinePix S1800
5/9/2013 4:27:23 PM
|
|
|
|
|

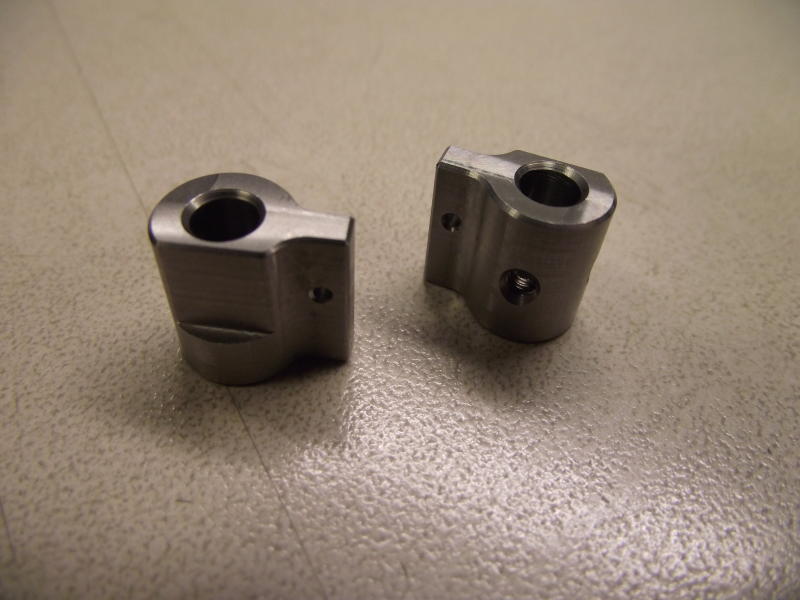

DSCF3983
|
|
|
|
|
FinePix S1800
5/9/2013 4:27:43 PM
|
|
|
|
|
|
|
|

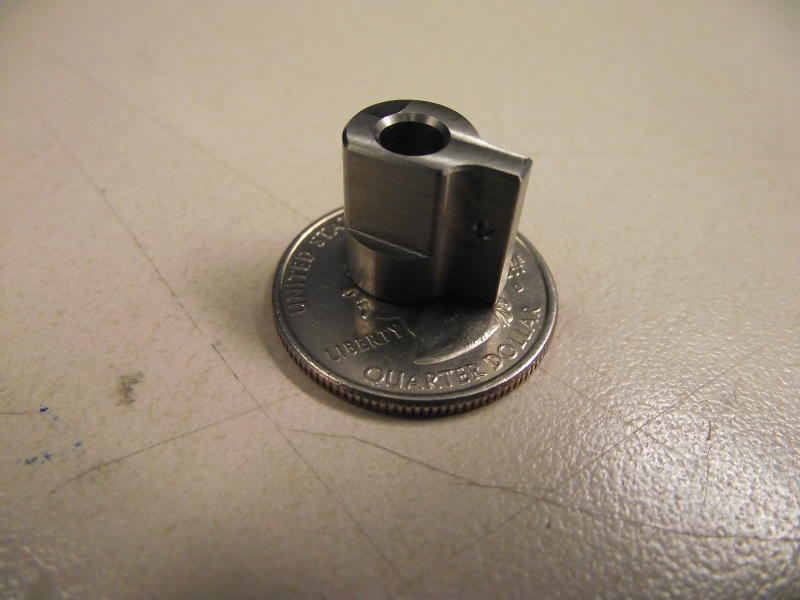

DSCF3985
|
|
Relatively small part. All edges
accessible were chamfered during machining
|
|
FinePix S1800
5/9/2013 4:32:05 PM
|
|
|
|
|

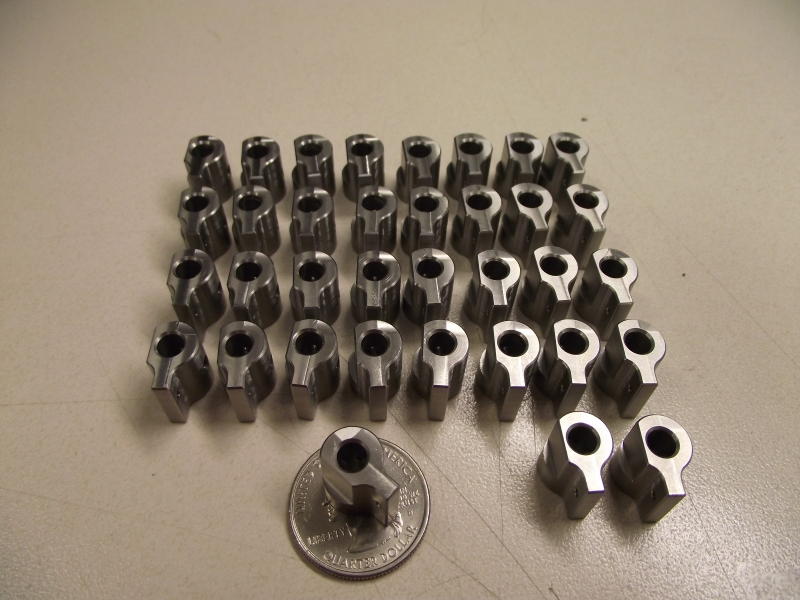

DSCF3986
|
|
|
|
|
FinePix S1800
5/9/2013 4:32:18 PM
|
|
|
|
|
|
|
|

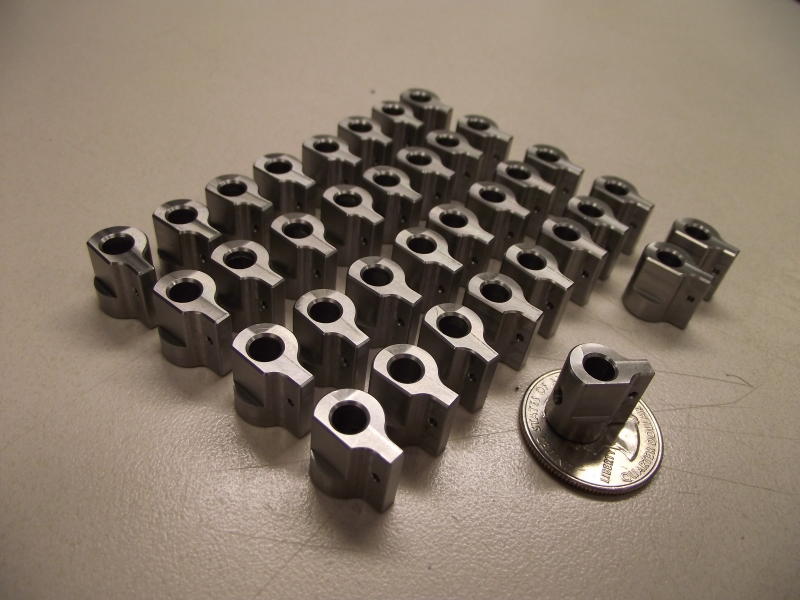

DSCF3988
|
|
|
|
FinePix S1800
5/9/2013 4:32:38 PM
|
|
|
|
|

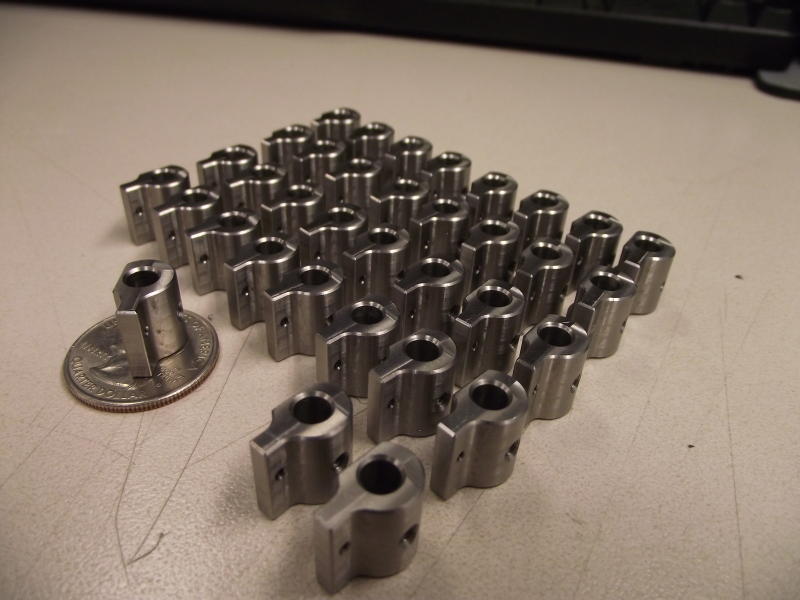

DSCF3989
|
|
|
|
|
FinePix S1800
5/9/2013 4:32:46 PM
|
|
|
|
|
