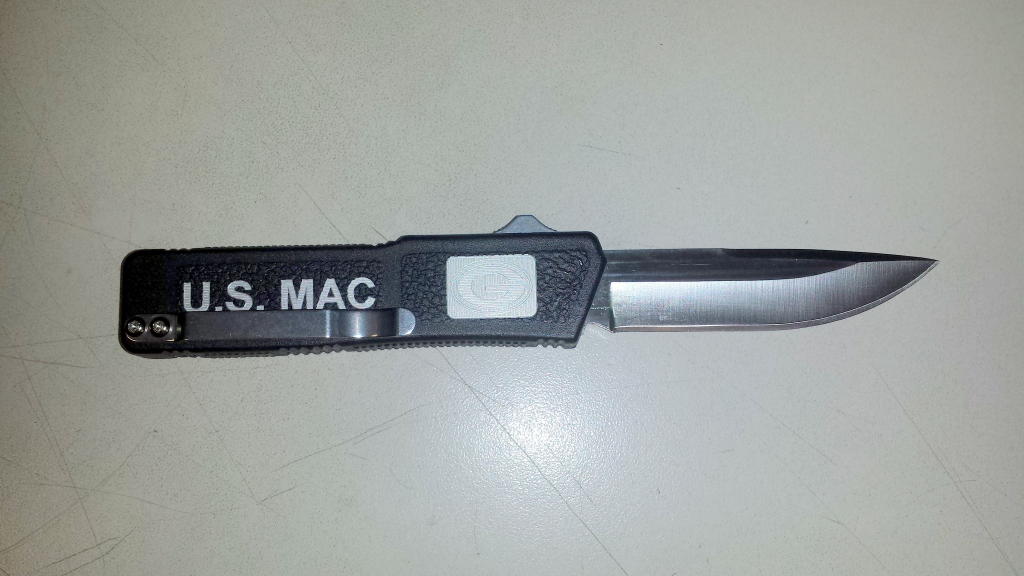

20151008_144607

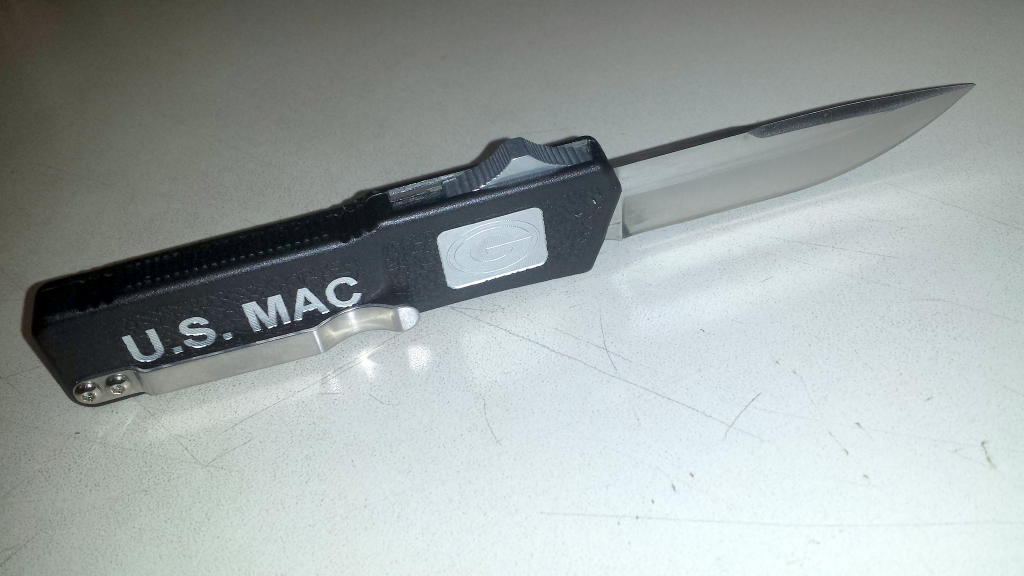

Lightning OTF knife engraved with the Green Bay Packer’s logo and U.S Martial Arts Center name This knife was a gift from my son to his godfather. He asked me to engrave it for him.

20151008_144556

SAMSUNG-SGH-I337
10/08/15 2:45:56 PM

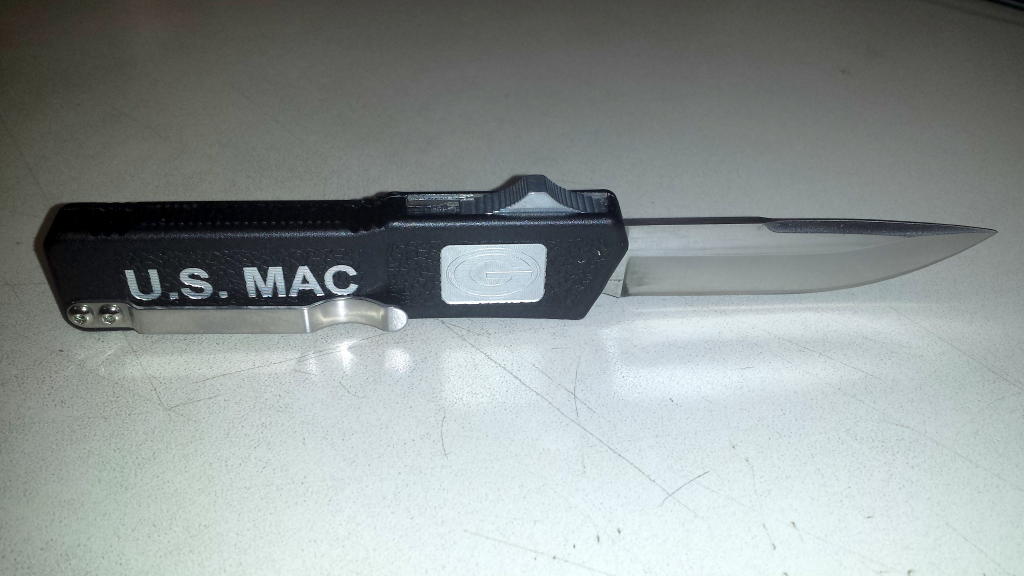

20151008_144546

SAMSUNG-SGH-I337
10/08/15 2:45:46 PM

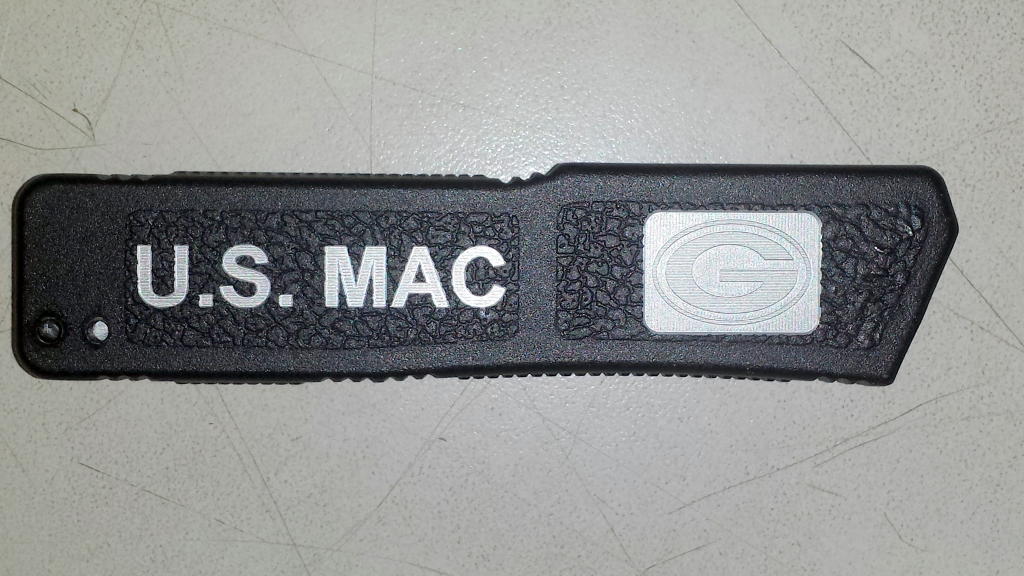

20151008_143009

I didn’t want to engrave the Green Bay logo down inside the pocket, but the surface of the knife is not flat. The engraving would not have come out correctly if I didn’t engrave on the flat surface created by the first machined pocket. I machined the pocket 90 degrees to the logo. This will be more apparent in the photos below.

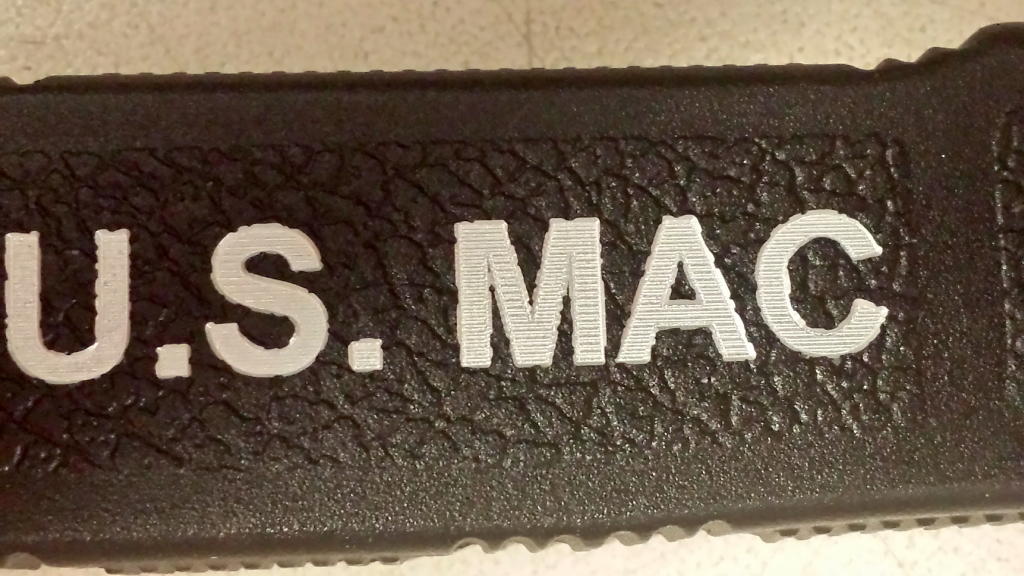

20151008_142951

SAMSUNG-SGH-I337
10/08/15 2:29:50 PM

The edges of the engraved letters do not look clean because of the texture on the surface of the handle.

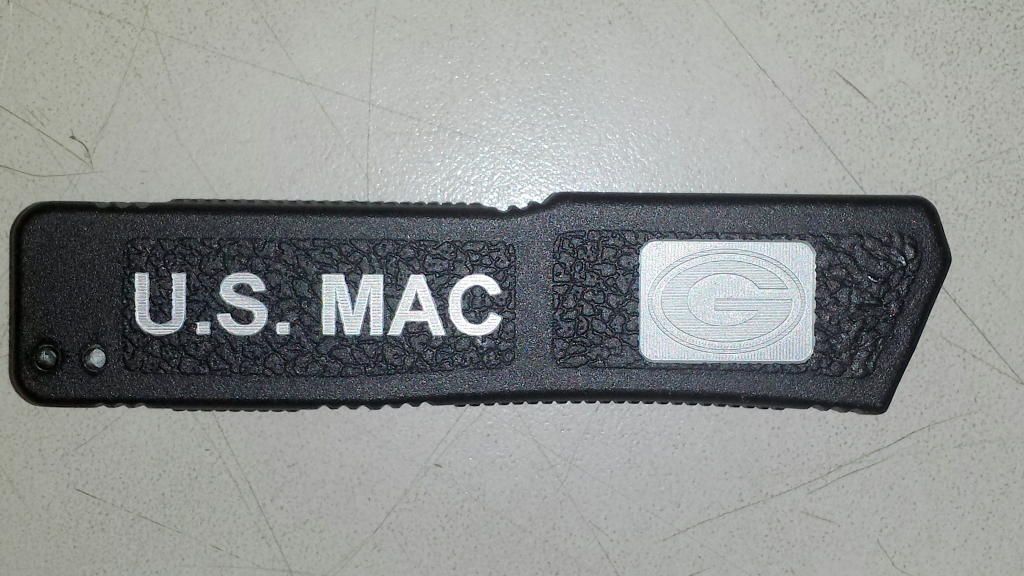

20151008_143012

SAMSUNG-SGH-I337
10/08/15 2:30:11 PM

The engravings look pretty clean from a short distance away and the scalloping of the edges due to the texture are less apparent.

20151008_134100

SAMSUNG-SGH-I337
10/08/15 1:41:00 PM

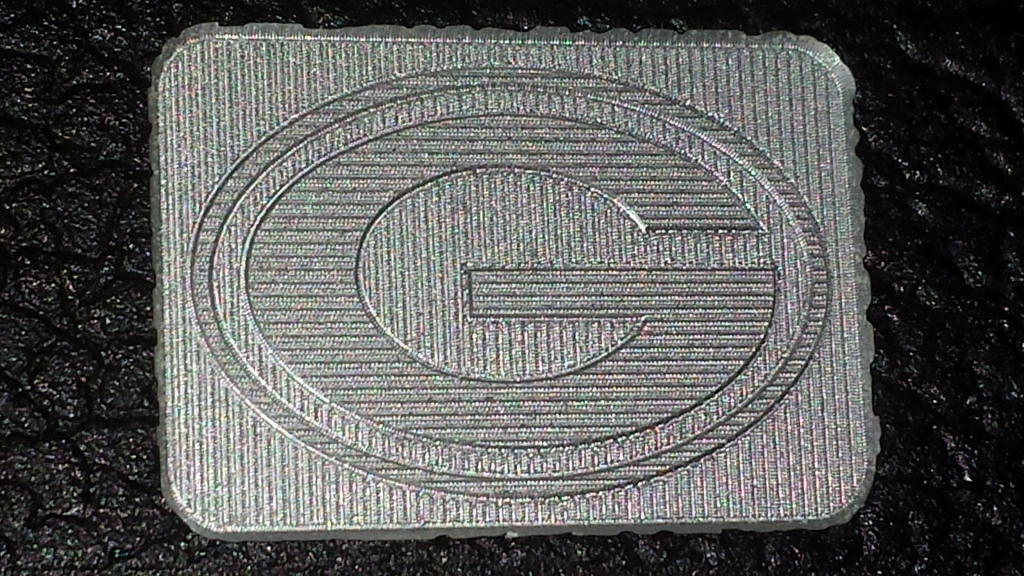

This is a close up of the Green Bay Packers logo

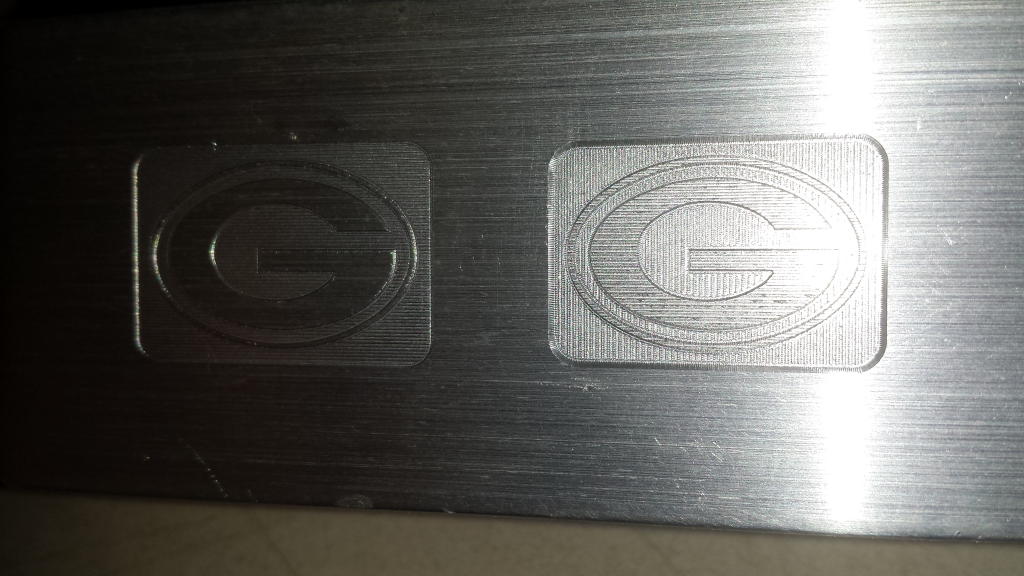

20151008_115746

SAMSUNG-SGH-I337
10/08/15 11:57:45 AM

Test engravings to determine an acceptable tool path for the logo.

20151008_115814

SAMSUNG-SGH-I337
10/08/15 11:58:14 AM

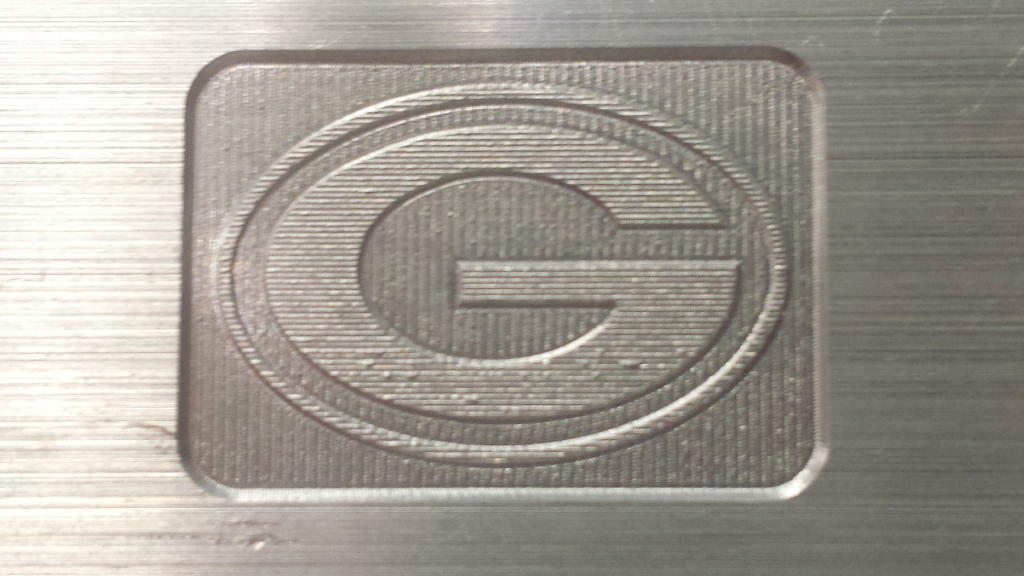

Test engravings to determine an acceptable tool path for the logo.

20151008_115821

SAMSUNG-SGH-I337
10/08/15 11:58:20 AM

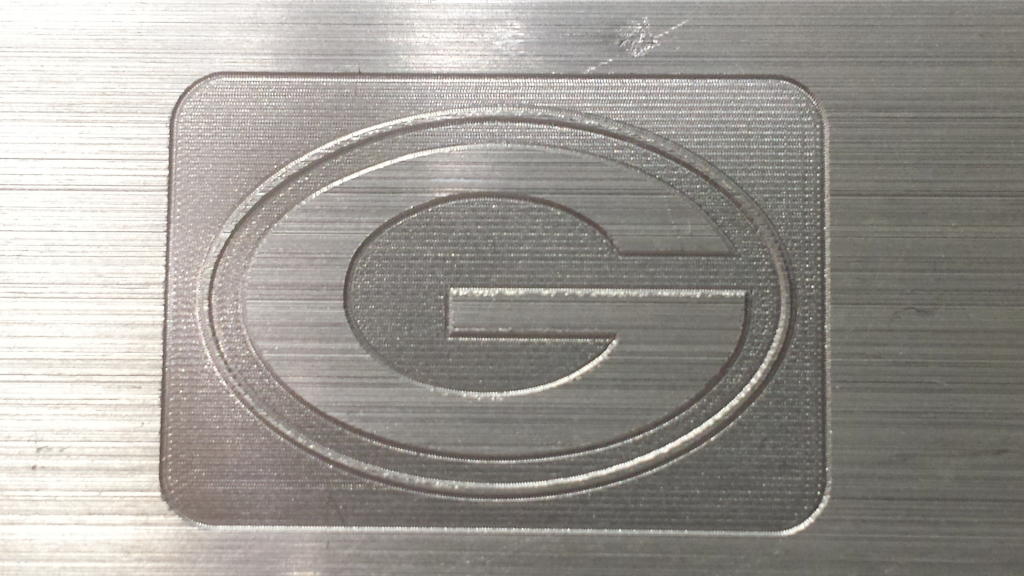

Test engravings to determine an acceptable tool path for the logo.

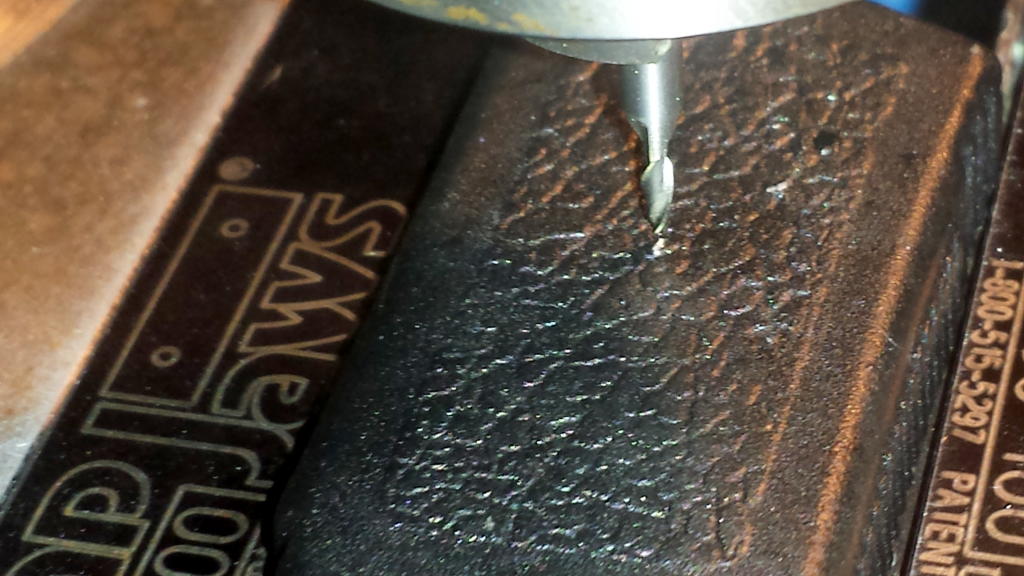

20151008_123056

SAMSUNG-SGH-I337
10/08/15 12:30:55 PM

Finding the center location to start the engraving.

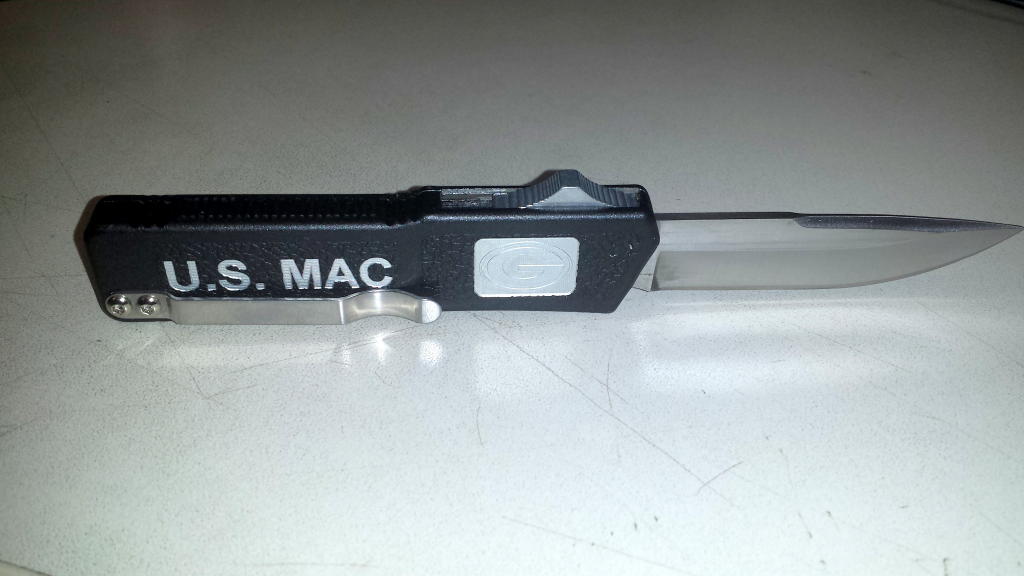

20151008_144549

SAMSUNG-SGH-I337
10/08/15 2:45:49 PM

Another view of the finished and assembled Lightning   OTF knife.
