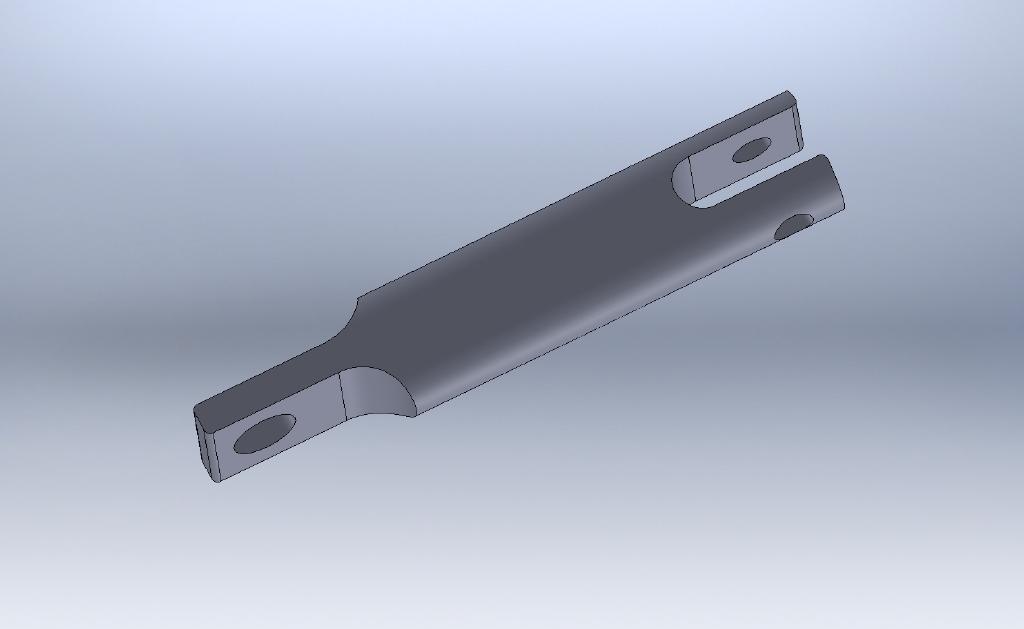

The part is 0.1875 diameter
0.975 long. It’s a link used to connect a solenoid plunger to a card lock
in a credit card reader.
|
|
2/6/2015 2:08:42 PM
|
|
|
|
|
21060143-link

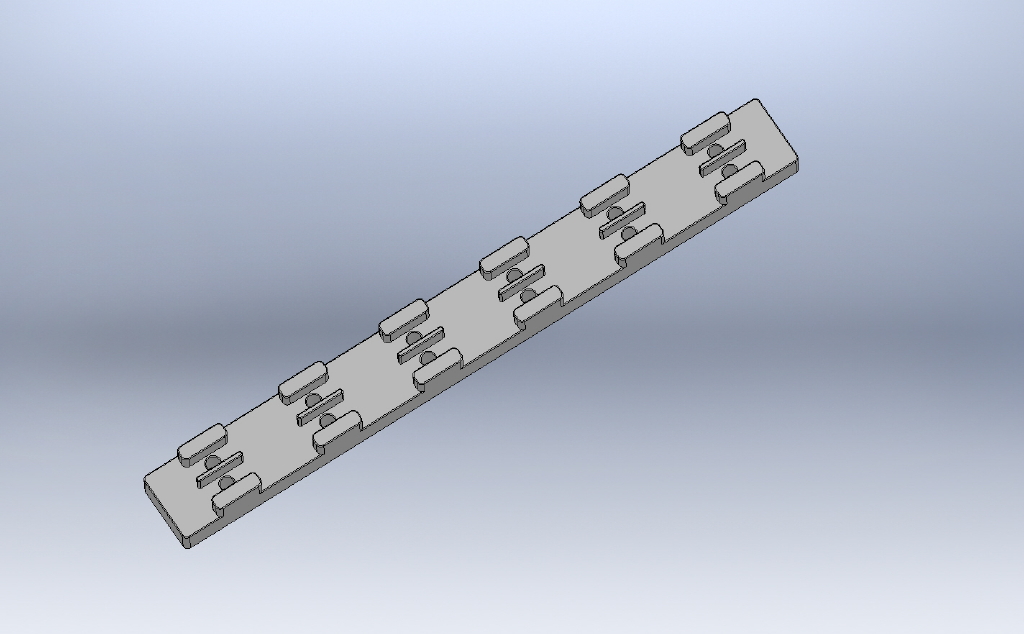

fixture_2-1
|
|
|
|

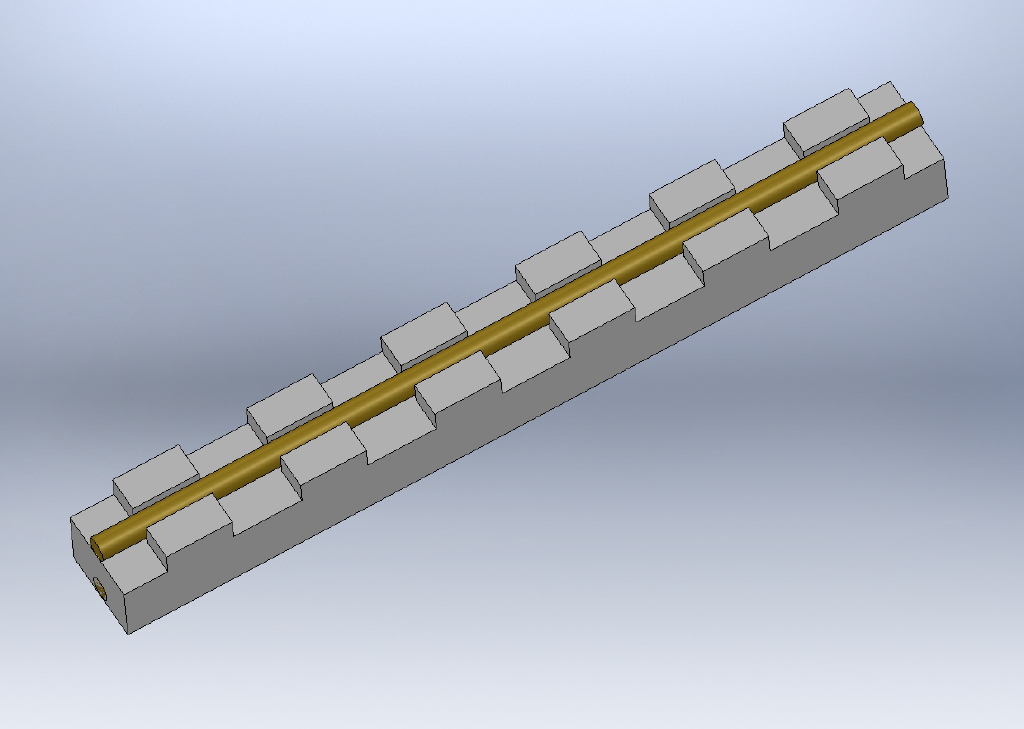

This

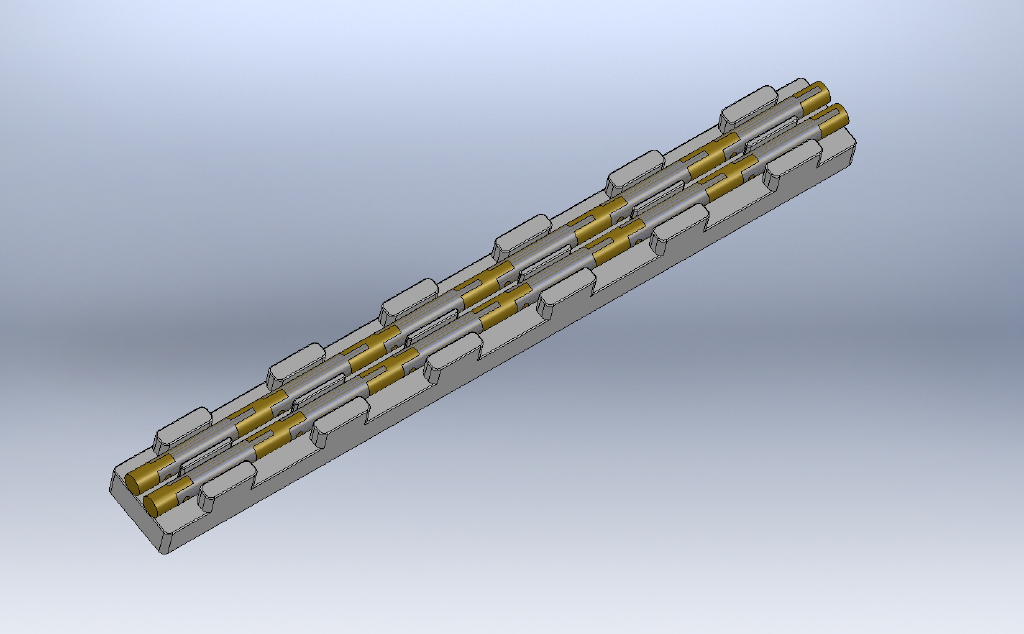

fixture will hold 2 3/16 round rods pressed into position to machine the
parts from.
|
|
2/3/2015 9:04:23 AM
|
|
|
|
|
|
|
|

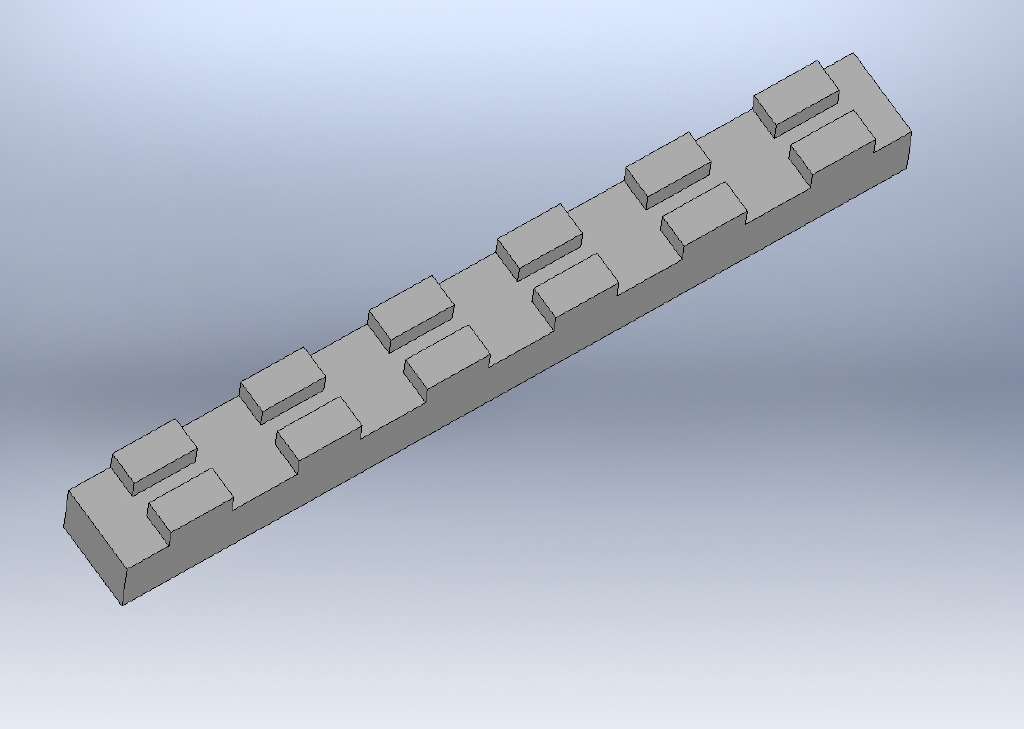

21060143-link
fixture_2-2
|
|
|
|
2/3/2015 9:05:42 AM
|
|
|
|
|
21060143-link
fixture_2-3
|
|

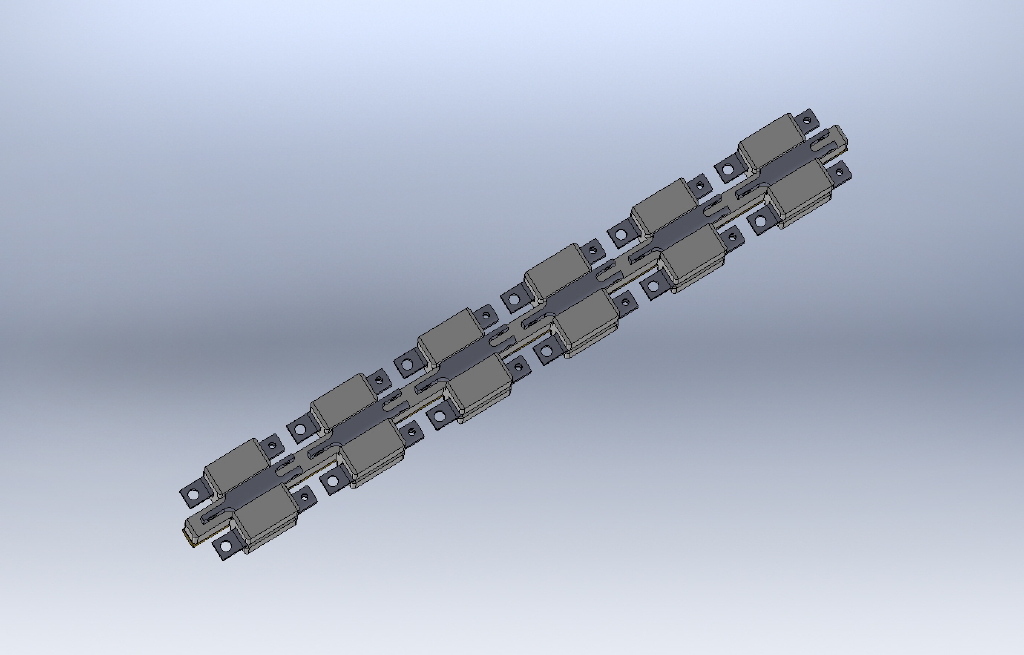

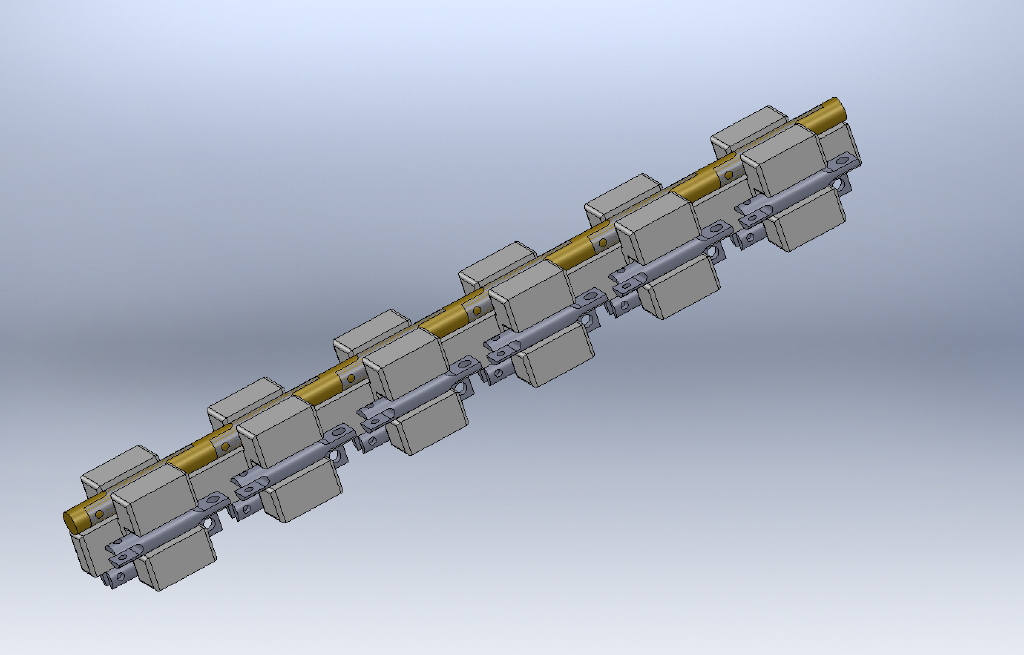

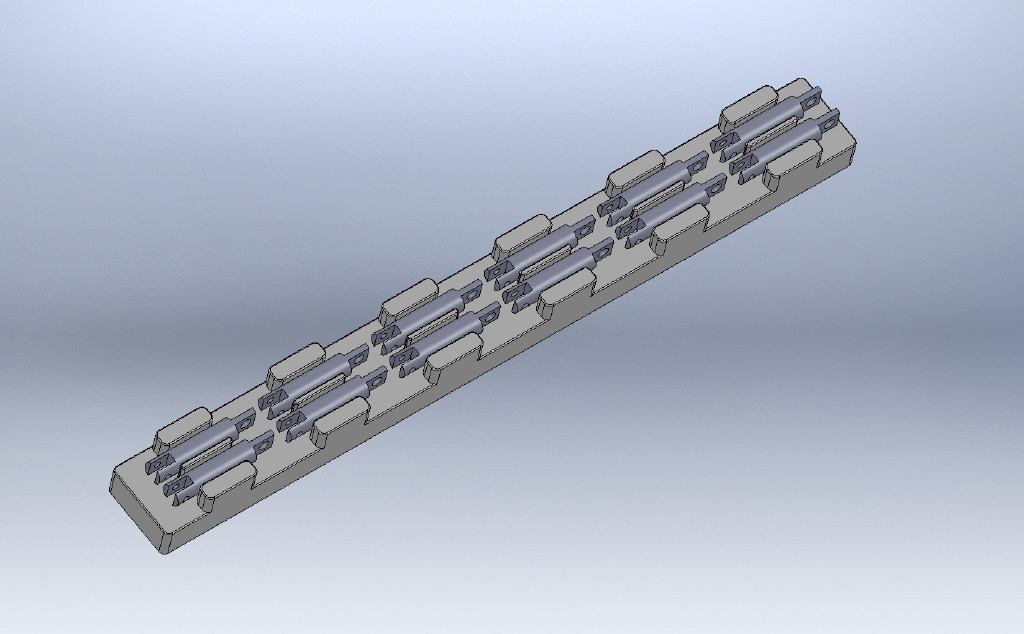

Here
you can see the parts nested inside the rods.
|
|
|
2/3/2015 9:06:06 AM
|
|
|
|
|
|
|
|
21060143-link
fixture_2-4
|
|
|
|
2/3/2015 9:06:33 AM
|
|
|
|
|

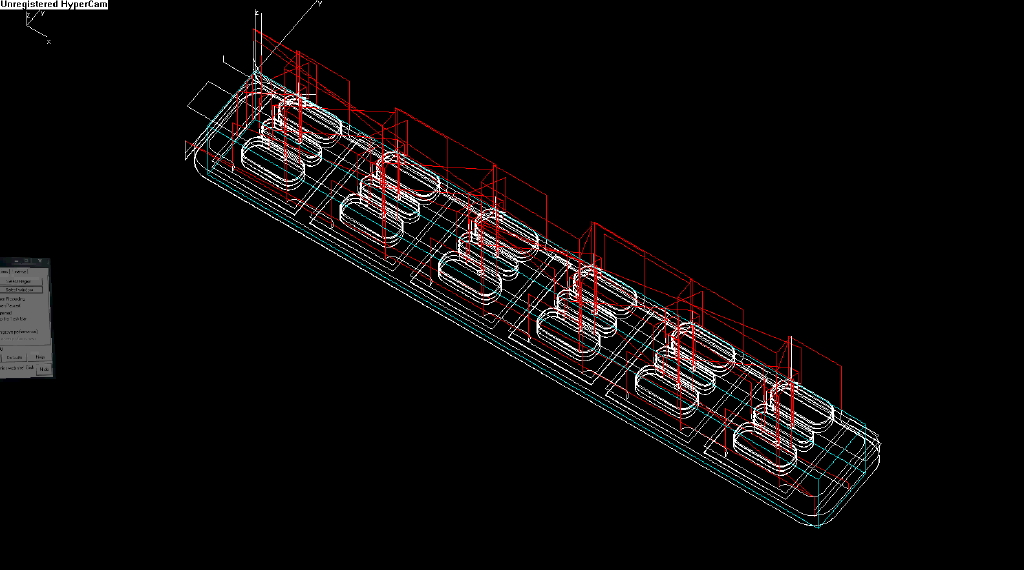

LINK_FIXTURE_AVI
|
|
|
|
|
Click the icon above
for a video of the cnc simulation to machining the fixture.
2/5/2015 3:52:10 PM
|
|
|
|
|
|
|
|
21060143-link
fixture_2-6
|
|
|
|
2/3/2015 9:08:35 AM
|
|
|
|
|
21060143-link
fixture_2-5
|
|

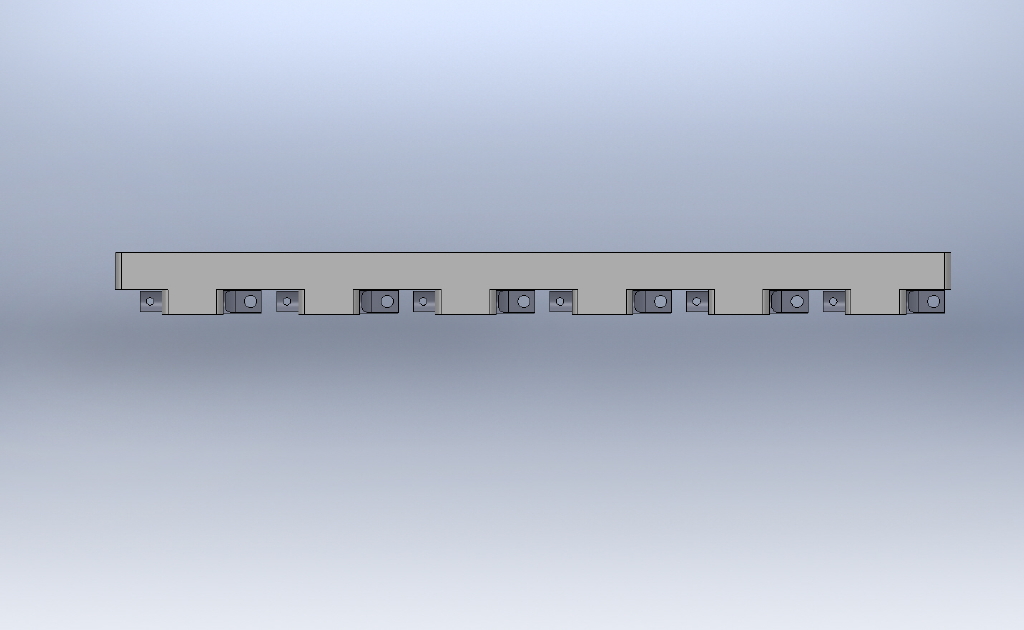

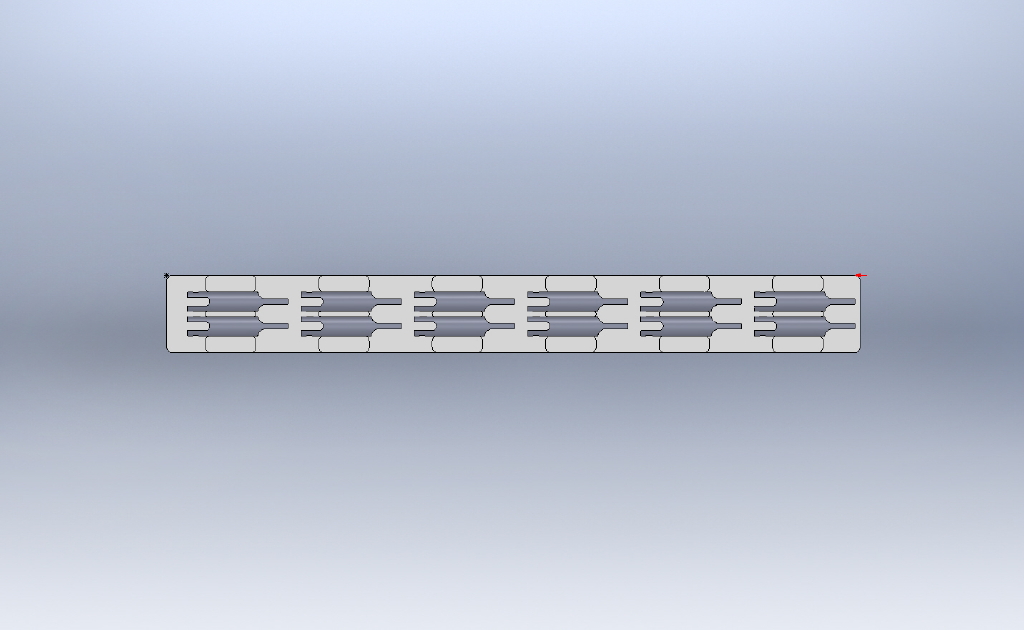

fixture in this orientation ,
the holes can be drilled into the parts. I may drill the holes before the
machining operation that separates the parts from the bar.
|
|
|
2/3/2015 9:07:53 AM
|
|
|
|
|
|
|
|

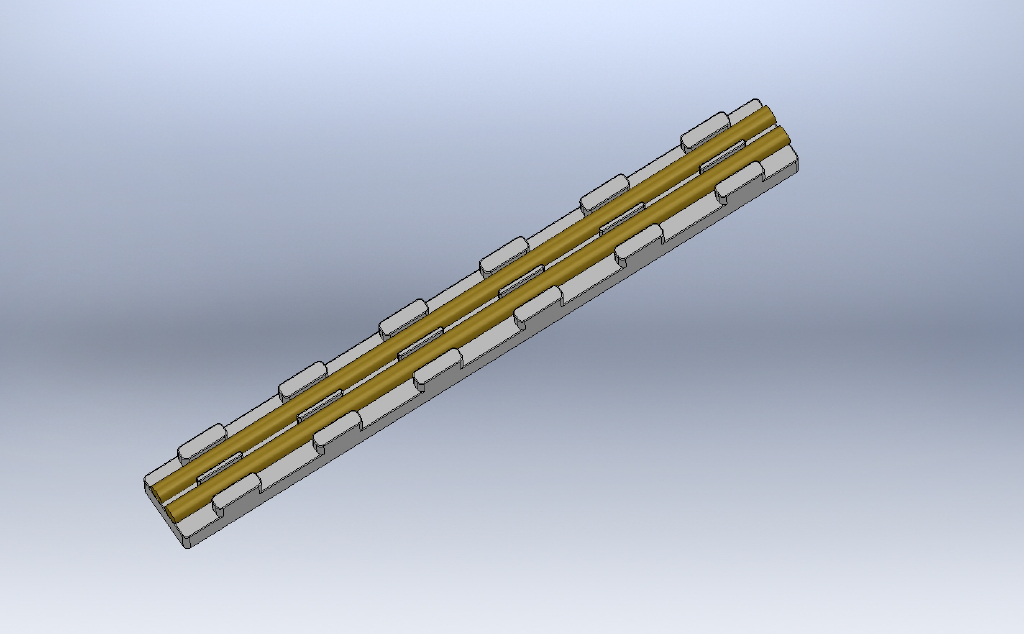

21060143_link_fixt_asm-2
|
|
Earlier concept
|
|
2/3/2015 8:09:28 AM
|
|
|
|
|
21060143_link_fixt_asm-3
|
|
later concept
|
|
|
2/3/2015 8:27:55 AM
|
|
|
|
|
|
|
|

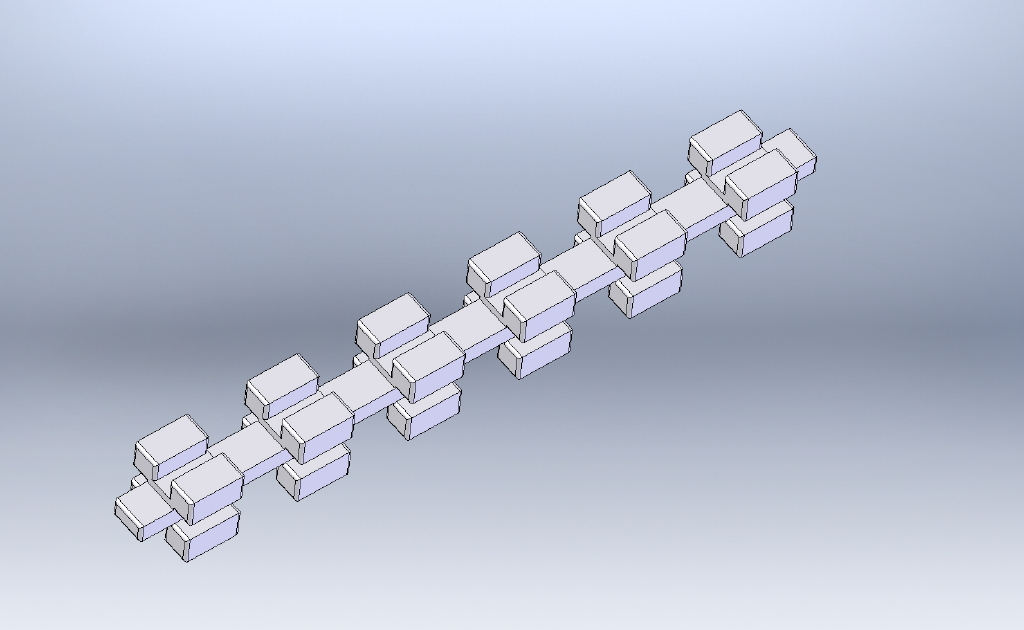

21060143_link_fixt_asm-4
|
|
I decided not to go this route because there are too
many machining operations, but I think that it could be made to work
|
|
2/3/2015 8:12:06 AM
|
|
|
|
|
21060143_link_fixt_asm-5
|
|
|
|
|
2/3/2015 8:29:15 AM
|
|
|
|
|
|
|
|
21060143_link_fixt_asm
|
|
|
|
2/3/2015 8:06:59 AM
|
|
|
|
