PartMaster
Turning is designed to create complete programs for NC and CNC lathes and
turning centers. PartMaster Turning is completely menu driven meaning that
no programming language needs to be learned, all required geometry is
automatically extracted from a PartMaster CAD drawing.
PartMaster Turning is ideal for those new to CNC machine tools, whilst
offering many advanced features for the experienced user.
 |
Supports 2 axis lathes with either a single or double turret, also lathes a "saddle" configuration. |
|
|
Supports bar feeders, part catchers. |
|
|
Tooling database. |
|
|

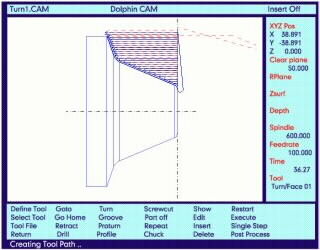

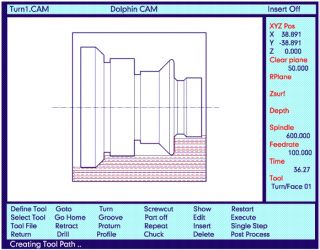

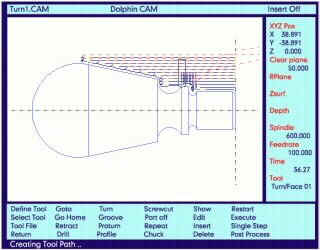

Display tool center line or complete tool animation with tool holder etc. |
|
|
Canned cycles for facing and turning with automatic area clearance between billet and finished profile, also facility for defining stock such as a casting or forged blank. |
|
|
Separate finishing allowance in Z and X. |
|
|
Grooving cycles for face and diameter with options for lip and root chamfers or fillets. |
|
|
Part surface programming. |
|
|
Constant surface speed control. |
|
|
Input simple profiles 'on the fly' without having to define them within the CAD system. |
|
|
Gouge free machining. |
|
|
Cycle time estimates. |
|
|
Output to virtually any machine tool controller with the built-in post processor. |
|
|
Operator set-up sheets which show tooling required and machining sequence. |
|
|
Automatic generation of backup files to guard against power failure |
