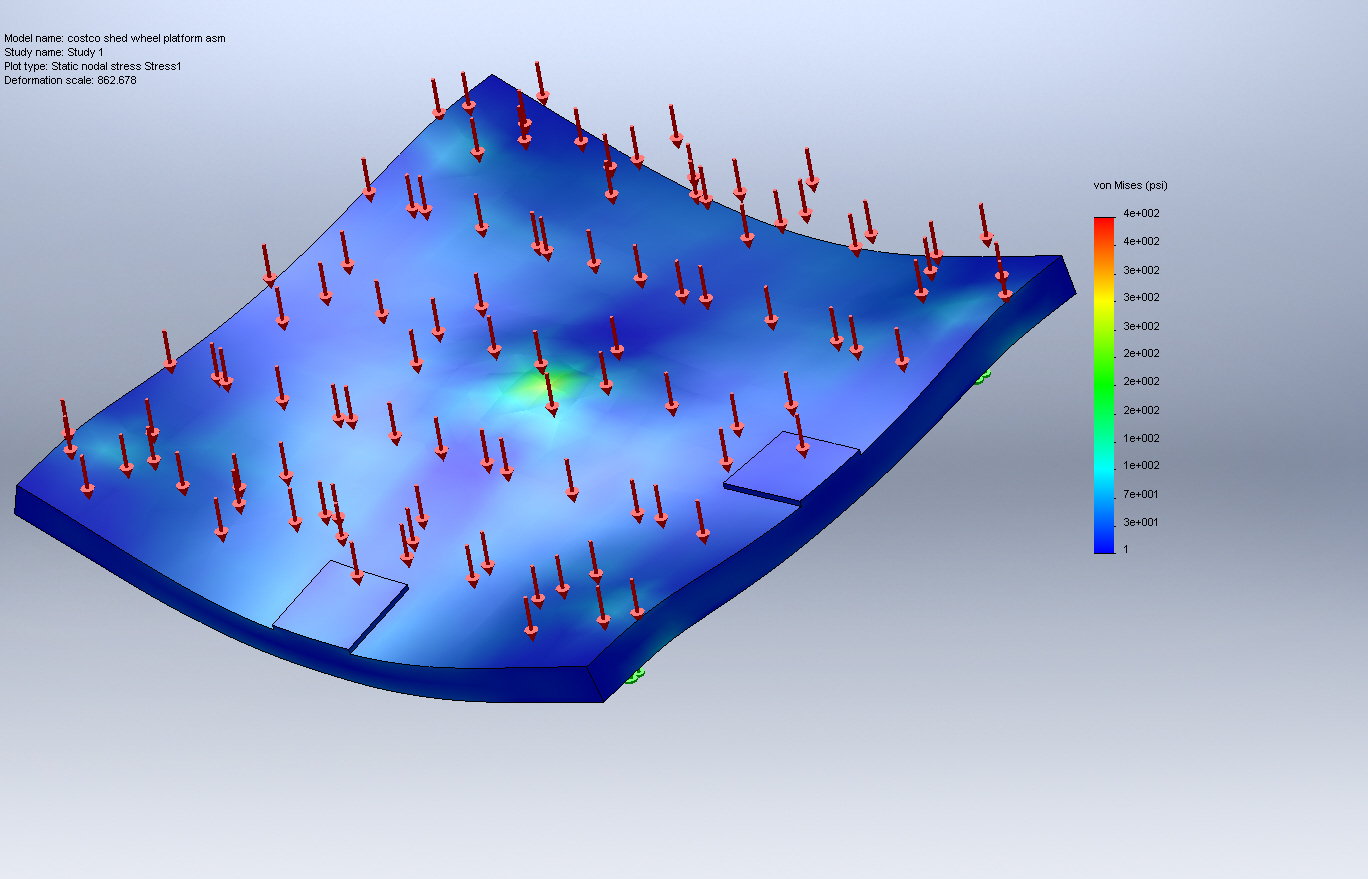

| costco shed wheel platform asm stress fea with 3500 lbs surface load true scale |
|
|
05/25/16
11:55:24 AM
|
|
|
|

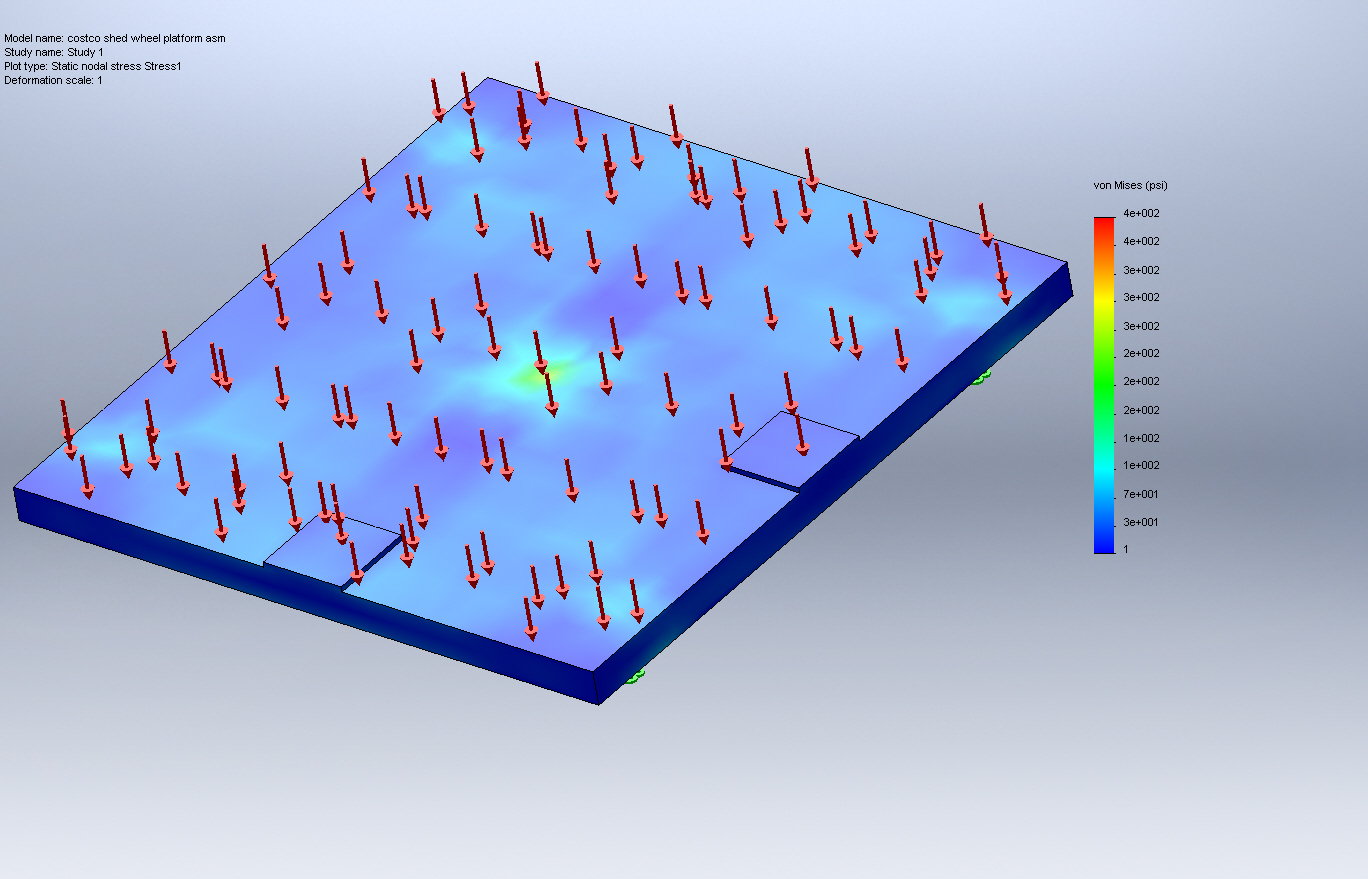

costco shed wheel platform asm stress fea with 3500 lbs surface load |
|
|
05/25/16
11:55:24 AM
|
|
|
 |
|
|

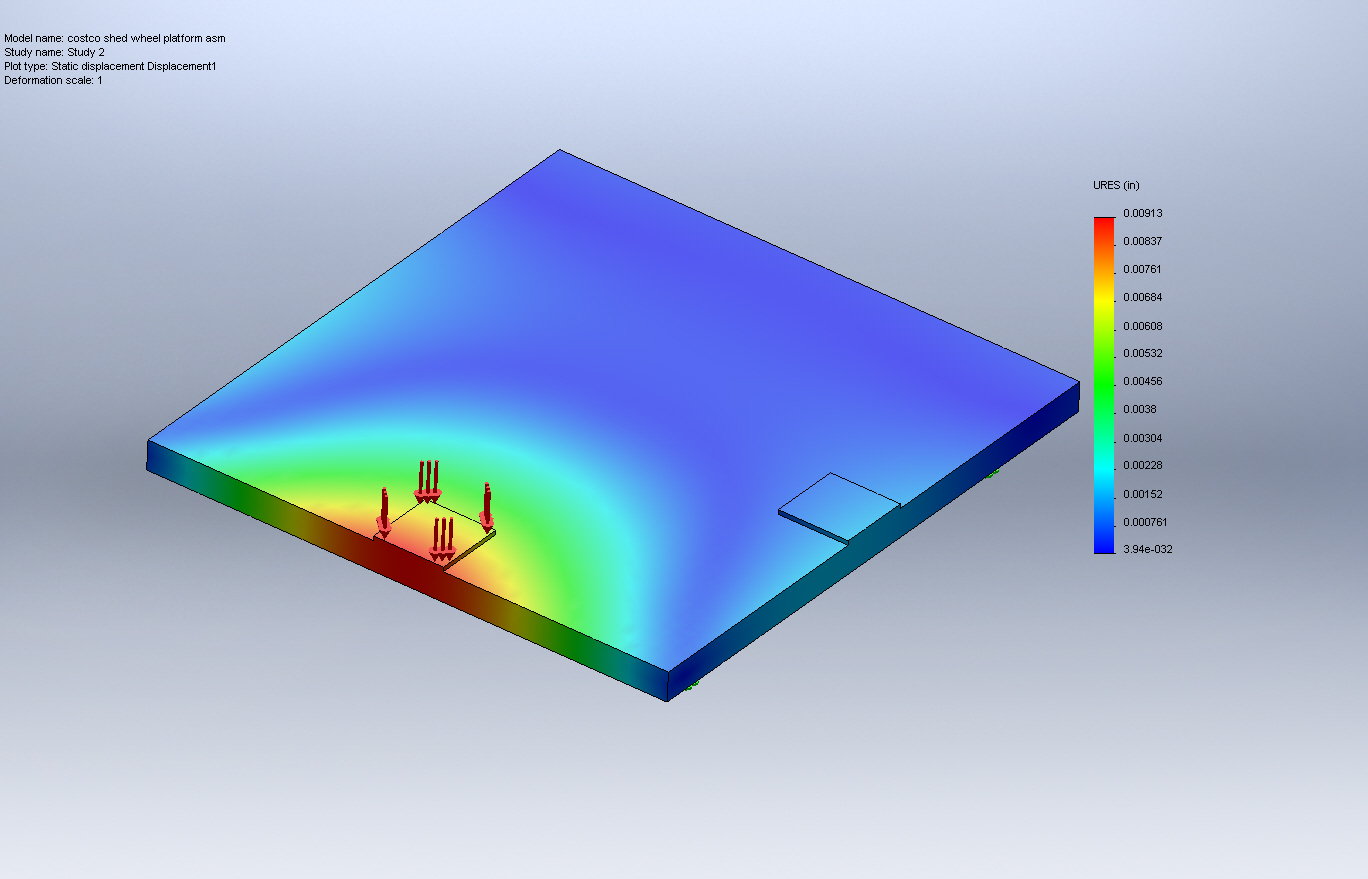

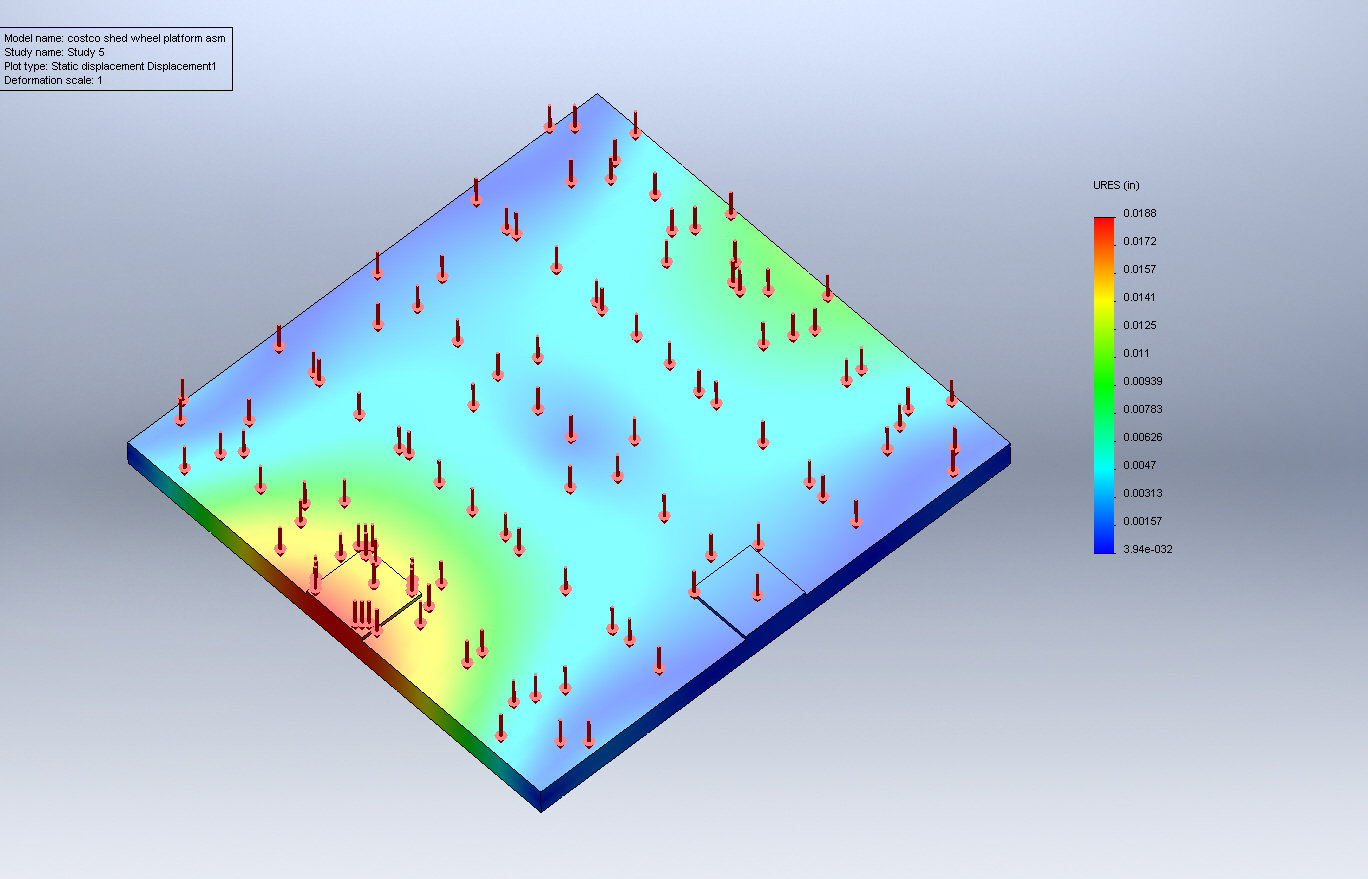

| costco shed wheel platform asm displacement 300 lbs point load on 1 sq ft centered on edge beam |
|
|
05/25/16
11:55:24 AM
|
|
|
|

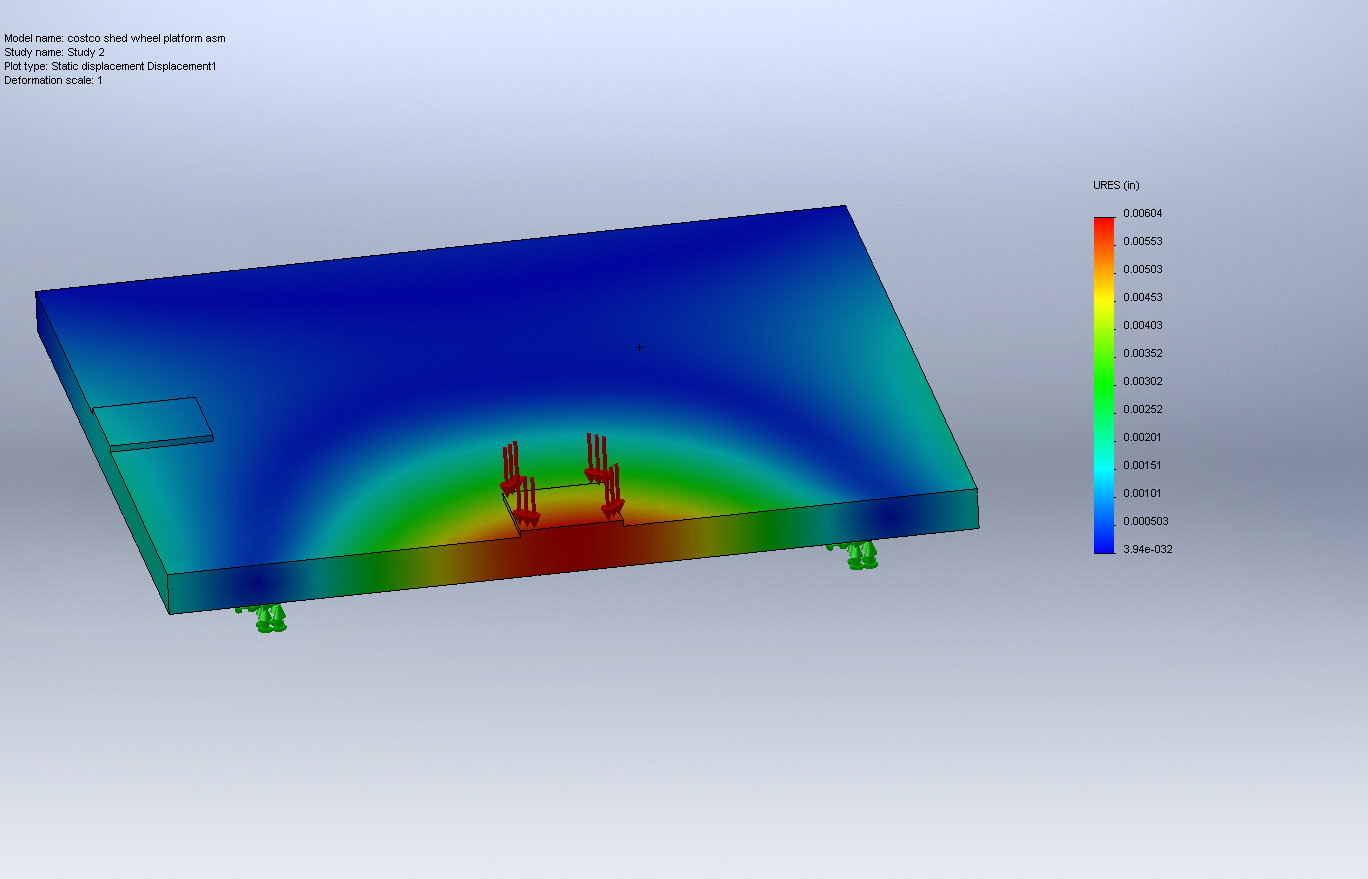

costco shed wheel platform asm displacement 300 lbs point load on 1 sq ft centered on pressure block 2x4 edge |
|
|
05/25/16
11:55:24 AM
|
|
|
 |
|
|

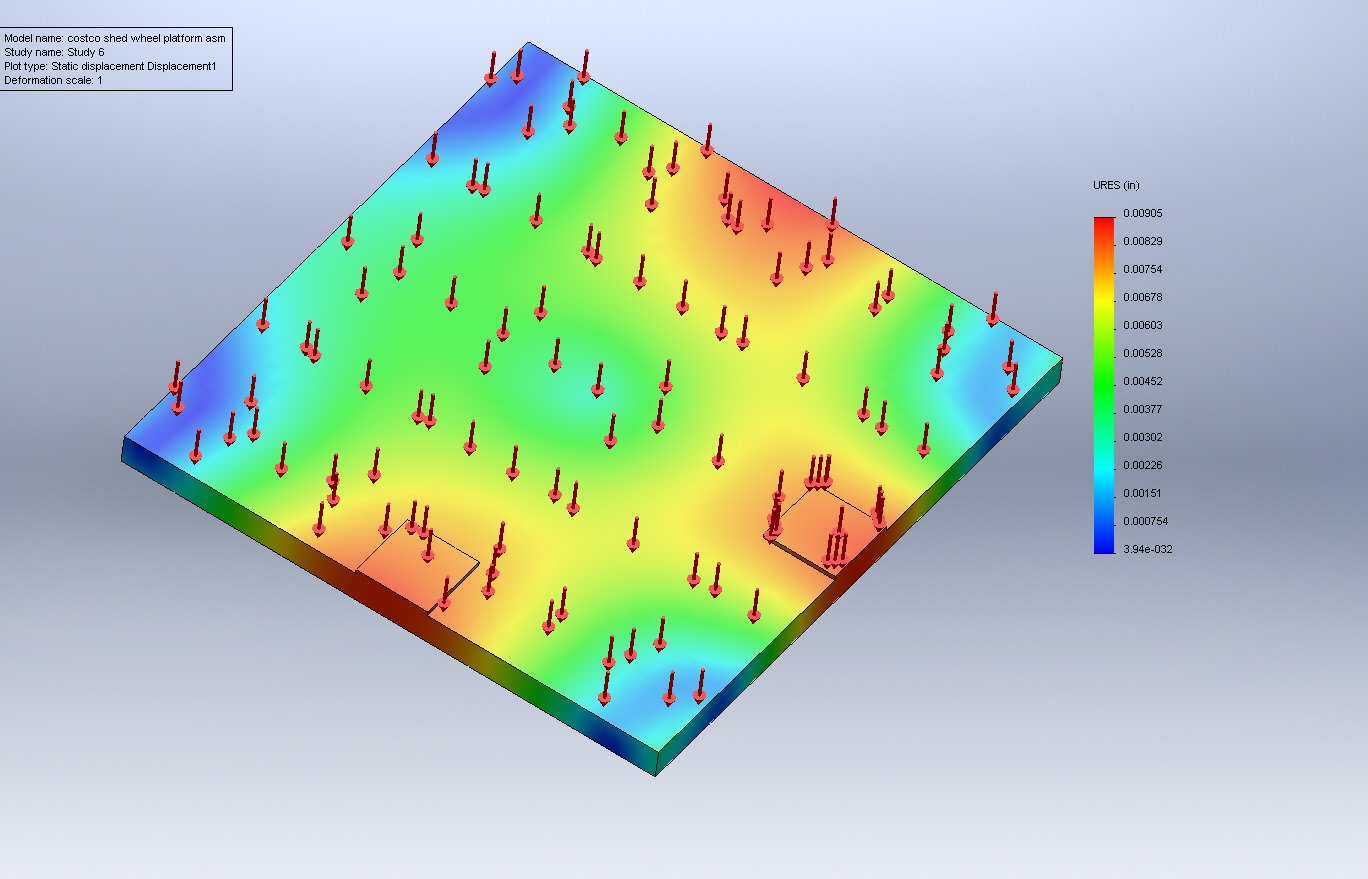

| costco shed wheel platform asm displacement 3200 lbs surface load plus 300 lb point load over 2x4 pressure blocked edge |
|
|
05/25/16
11:55:24 AM
|
|
|
|
costco shed wheel platform asm displacement 3200 lbs surface load plus 300 lb point load over edge beam |
|
|
05/25/16
11:55:24 AM
|
|
|
 |
|
|

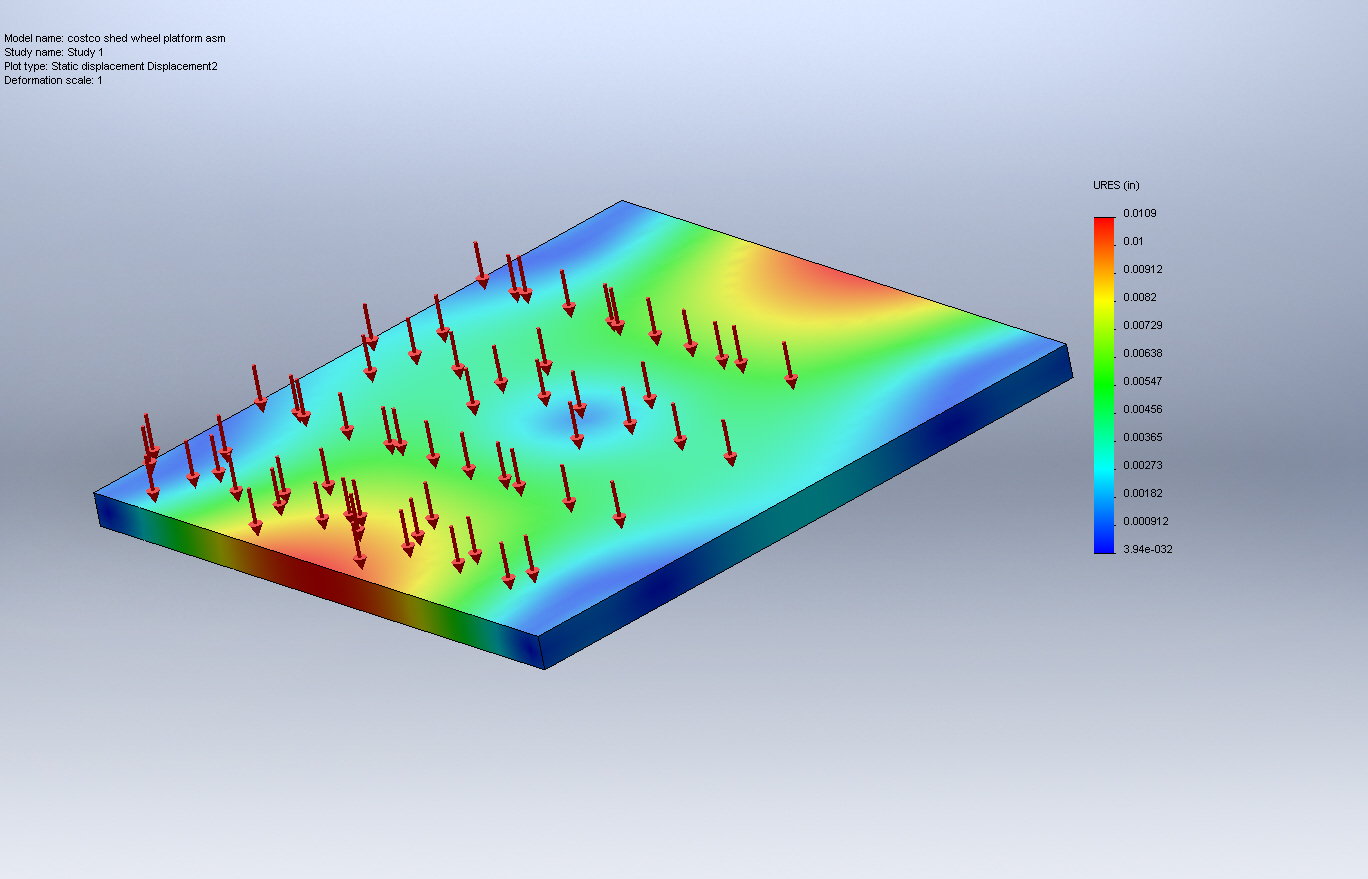

| costco shed wheel platform asm displacement 3500 lbs surface load |
|
|
05/25/16
11:55:24 AM
|
|
|
|

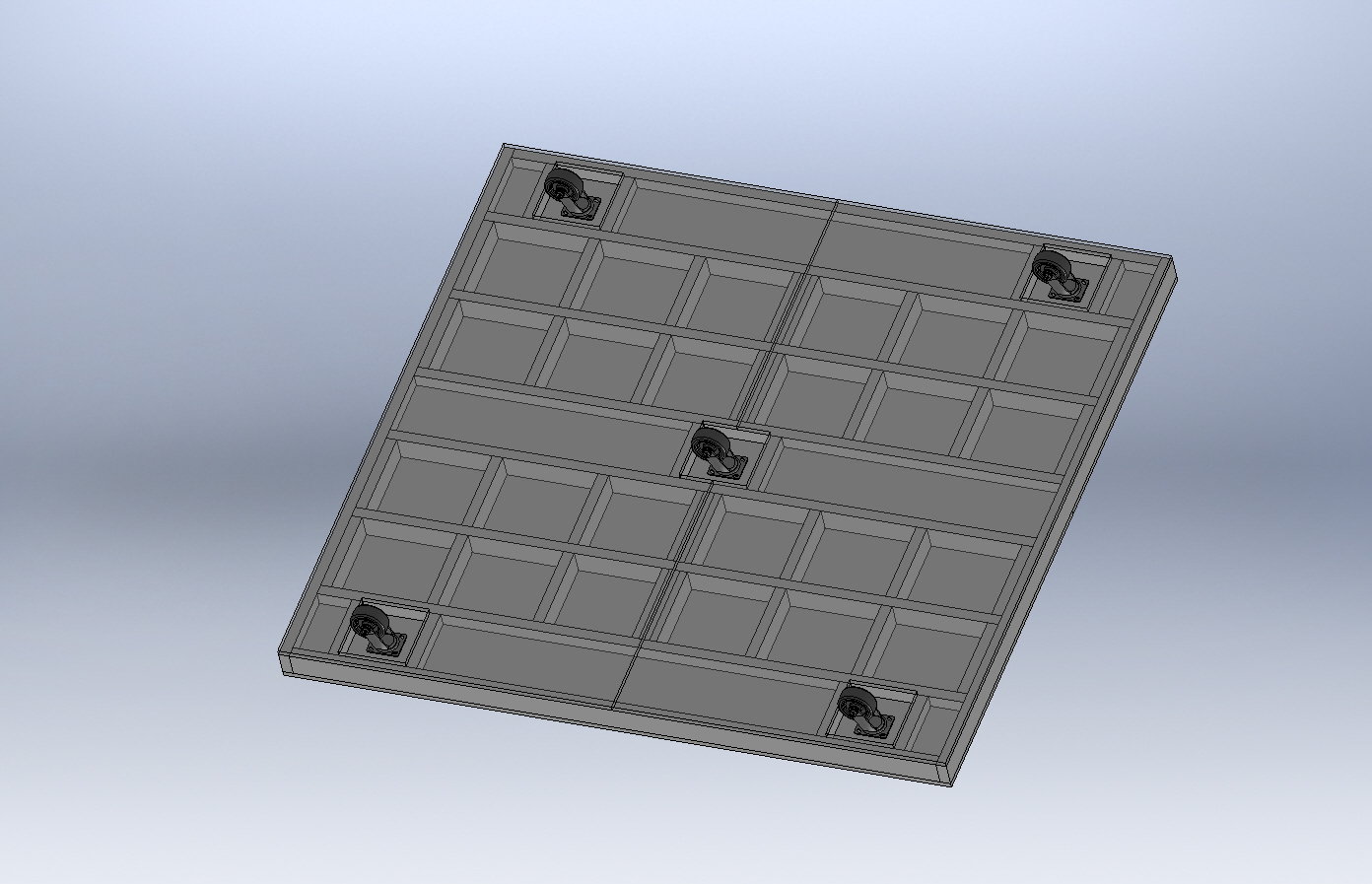

costco shed wheel platform asm-1 |
|
|
05/25/16
11:55:24 AM
|
|
|
 |
|
|

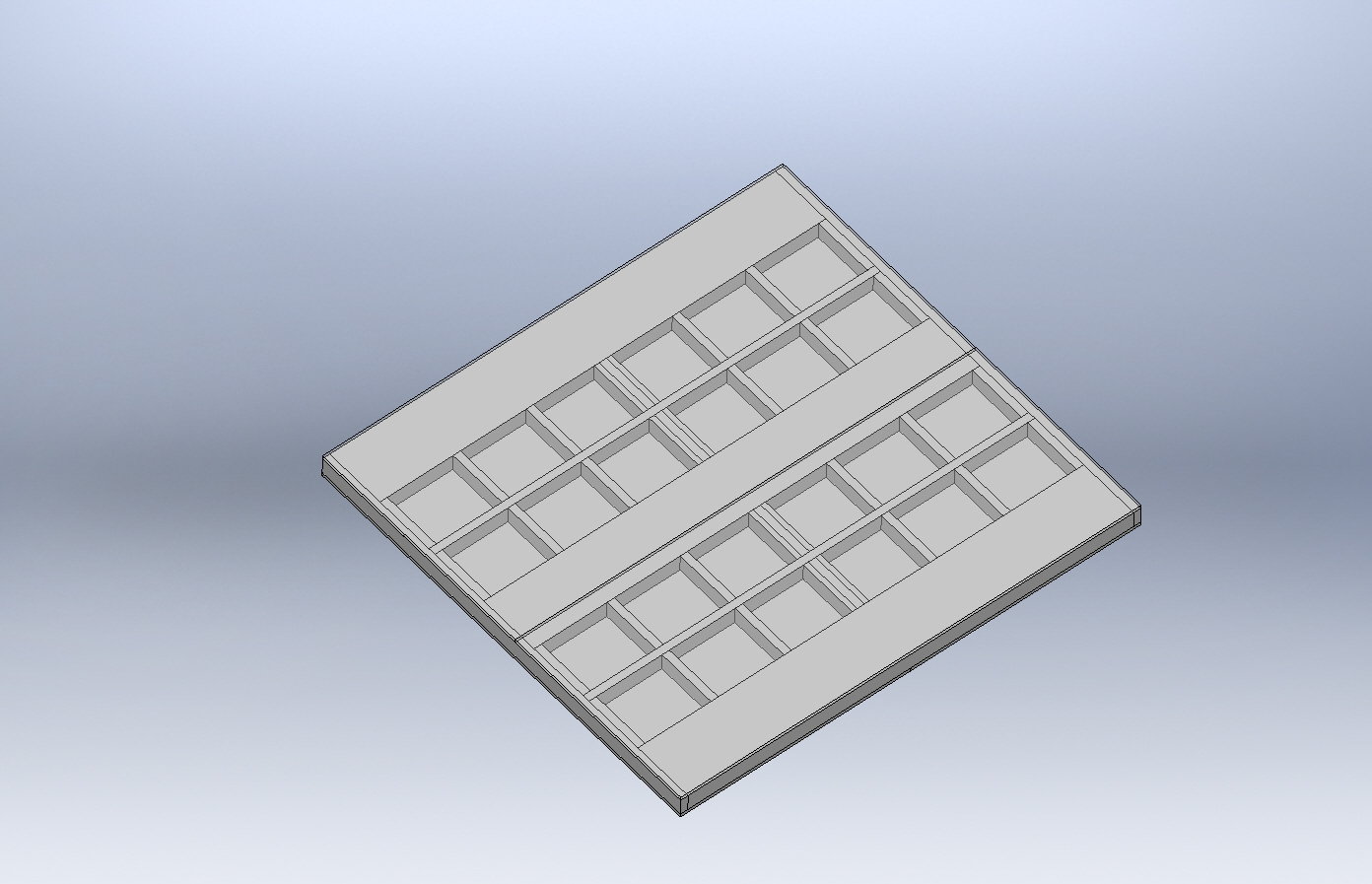

| costco shed wheel platform asm-2 |
|
|
05/25/16
11:55:24 AM
|
|
|
|

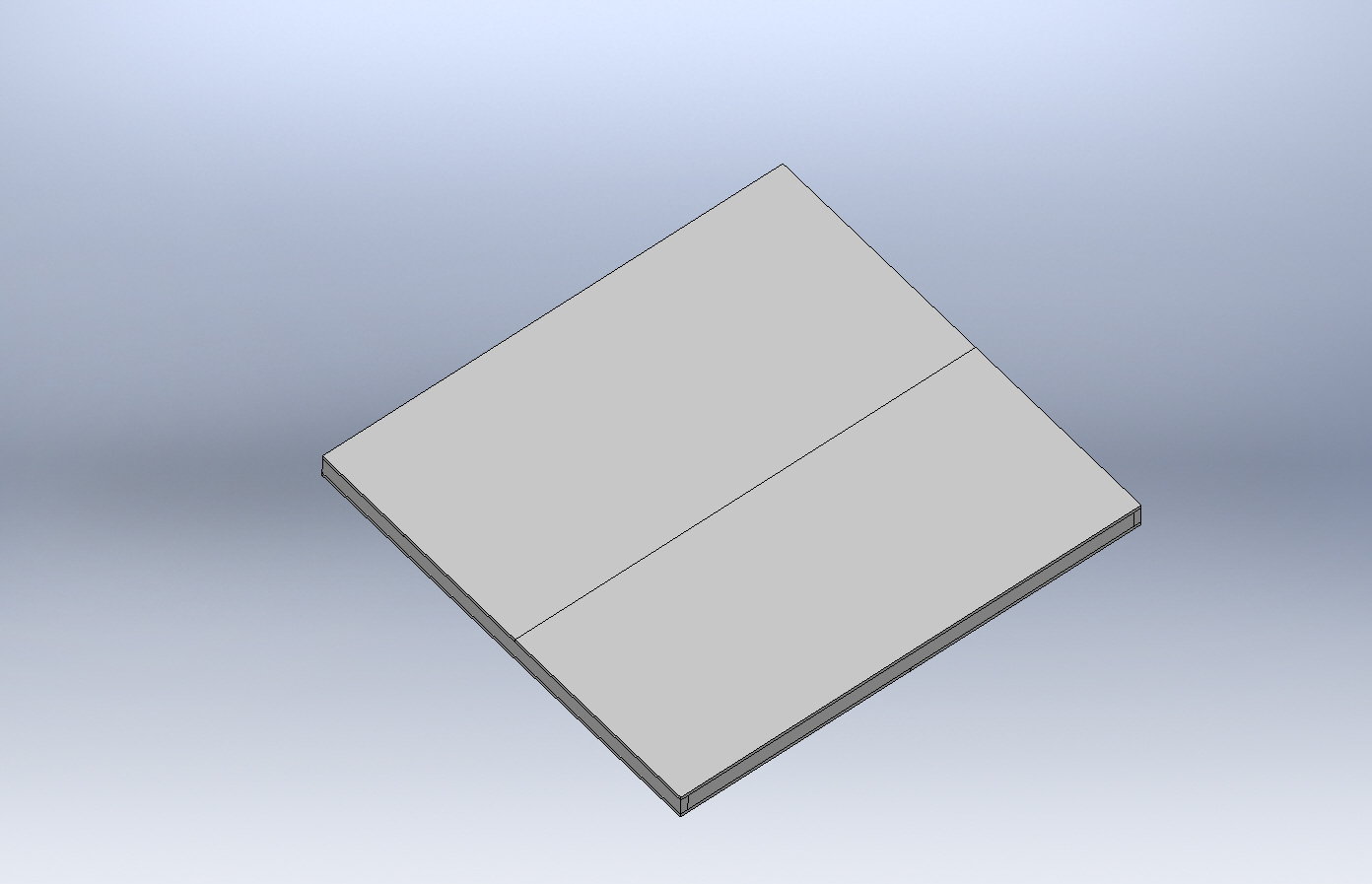

costco shed wheel platform asm-3 |
|
|
05/25/16
11:55:24 AM
|
|
|
 |
|
|
| costco shed wheel platform asm-4 |
|
|
05/25/16
11:55:24 AM
|
|
|
|
