20151209_202321
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:23:20 PM
|
|

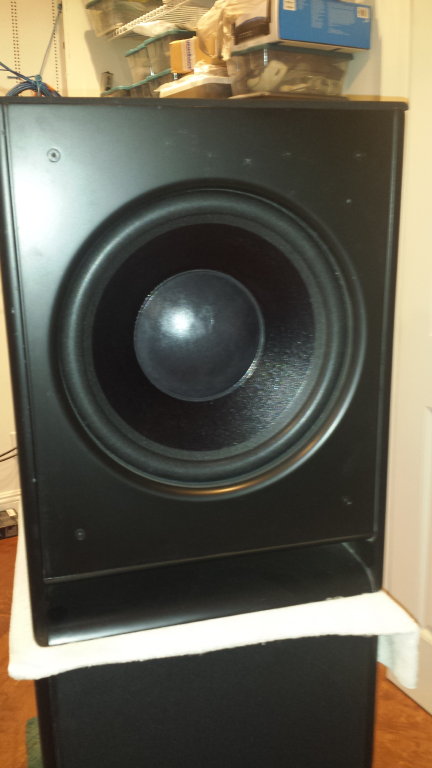

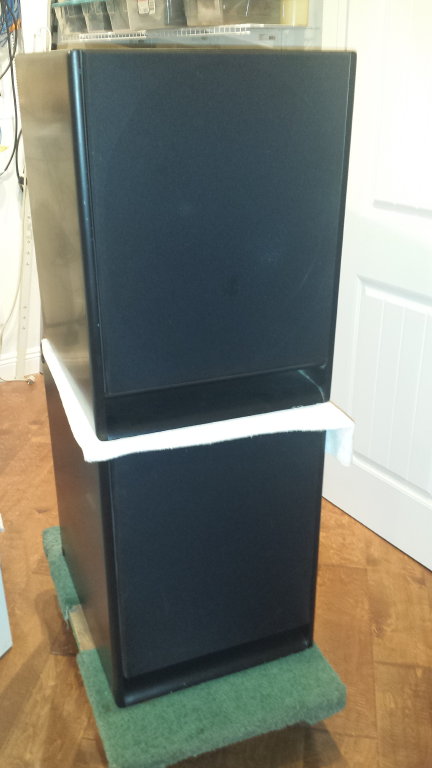

I picked up this pair of AV123
MFW-15 subs. They were in excellent physical condition and both had faulty amplifier’s. After researching my options, I decided
that powering them from an iNuke DSP amp would be the best way to go. I
have a spare iNuke 3000DSP but it’s quite a bit more power that the
speakers can handle. The iNuke 1000 DSP would be a better choice.
|
|
|
20151209_202333
|
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:23:33 PM
|
|
|
|
|
|
|
|
20151209_202356
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:23:56 PM
|
|

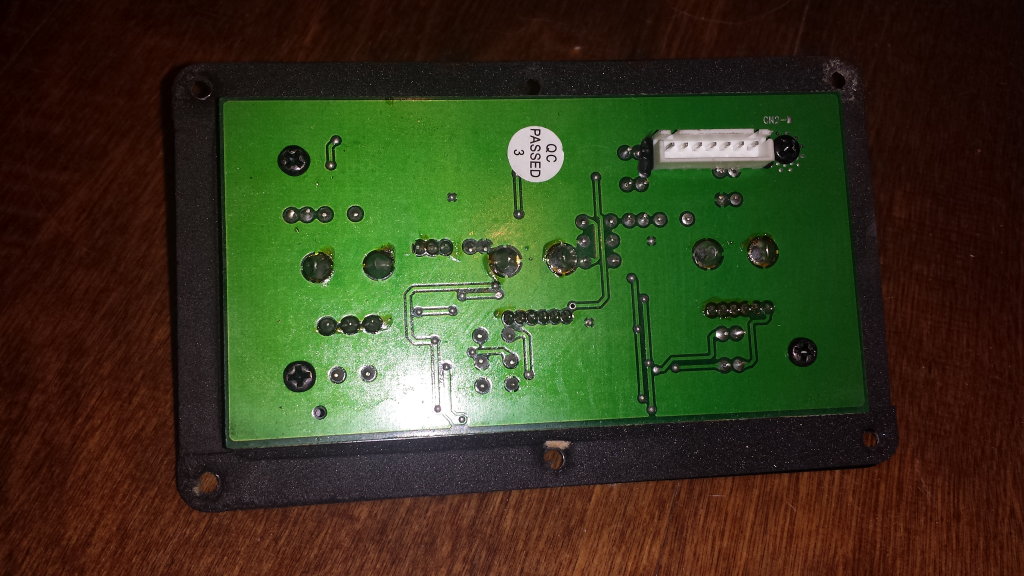

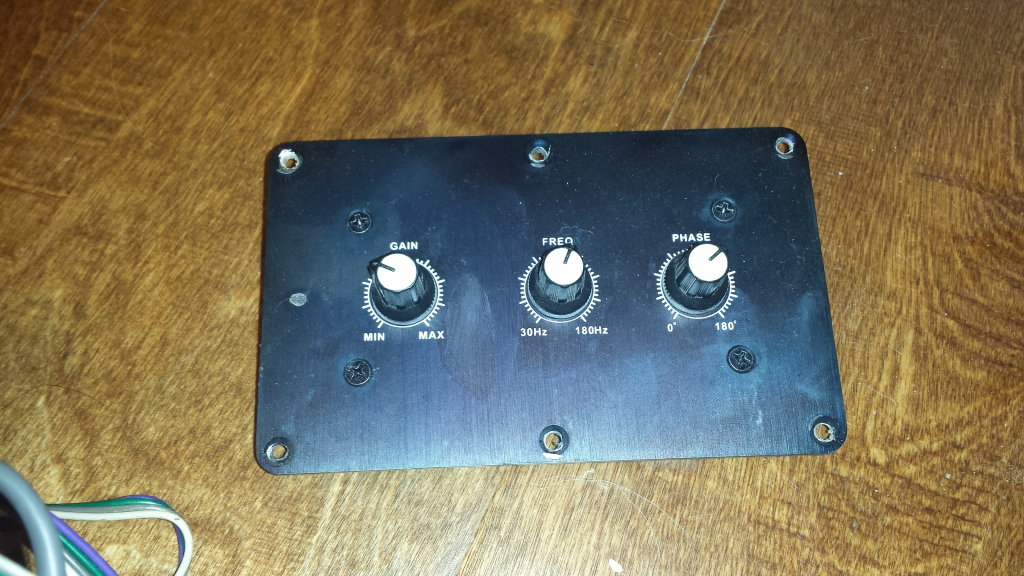

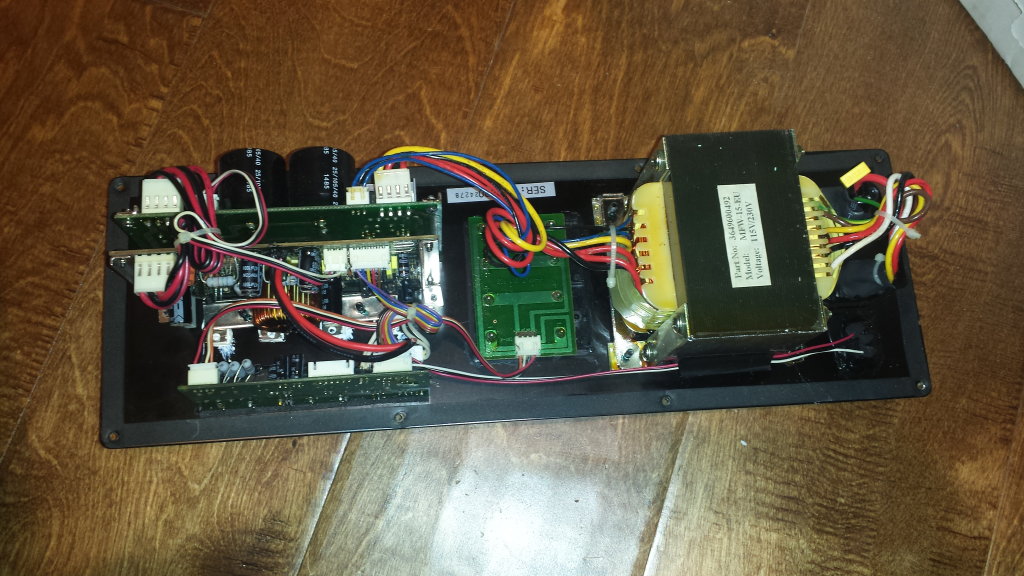

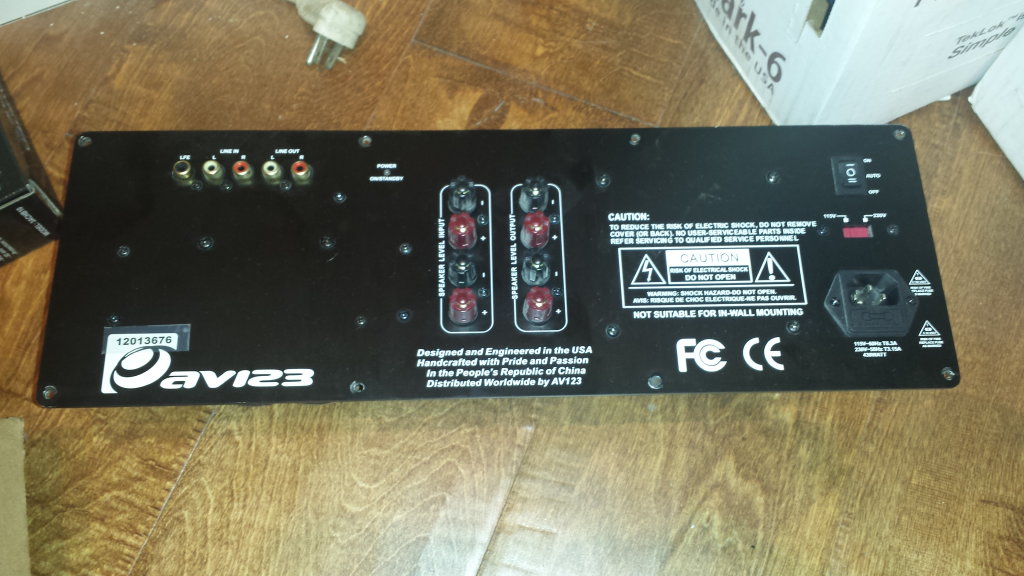

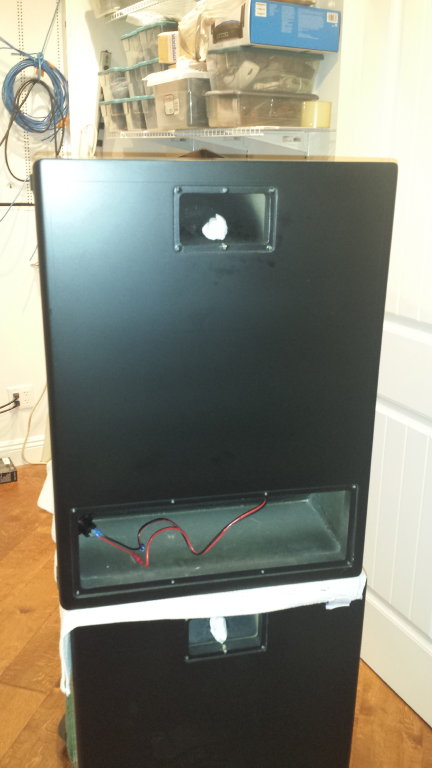

I removed the factory amplifier
and control panel from the top and then installed custom machined aluminum
block off plates with a custom recessed speakon connector housing.
|
|
|
20151209_203731
|
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:37:30 PM
|
|

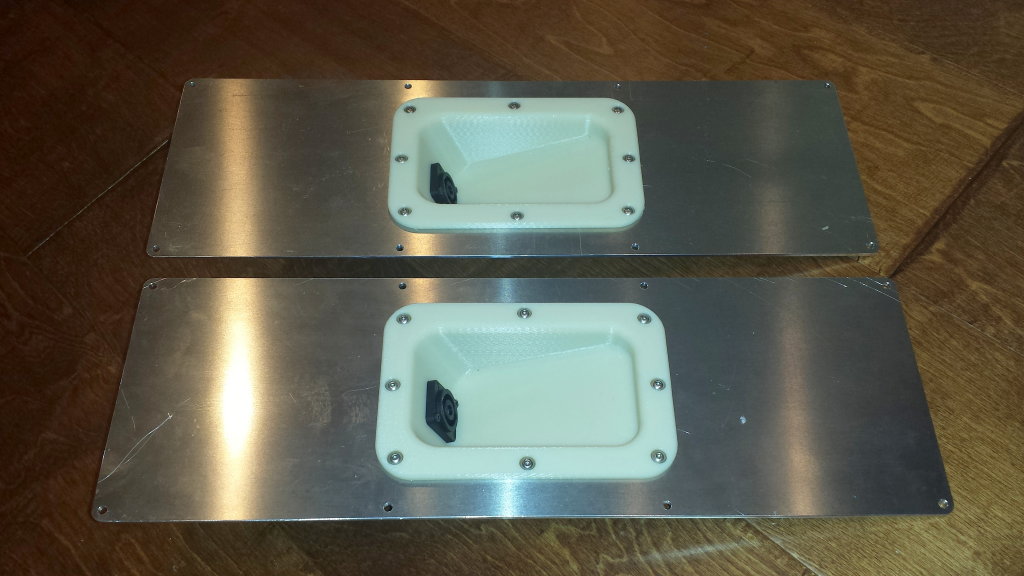

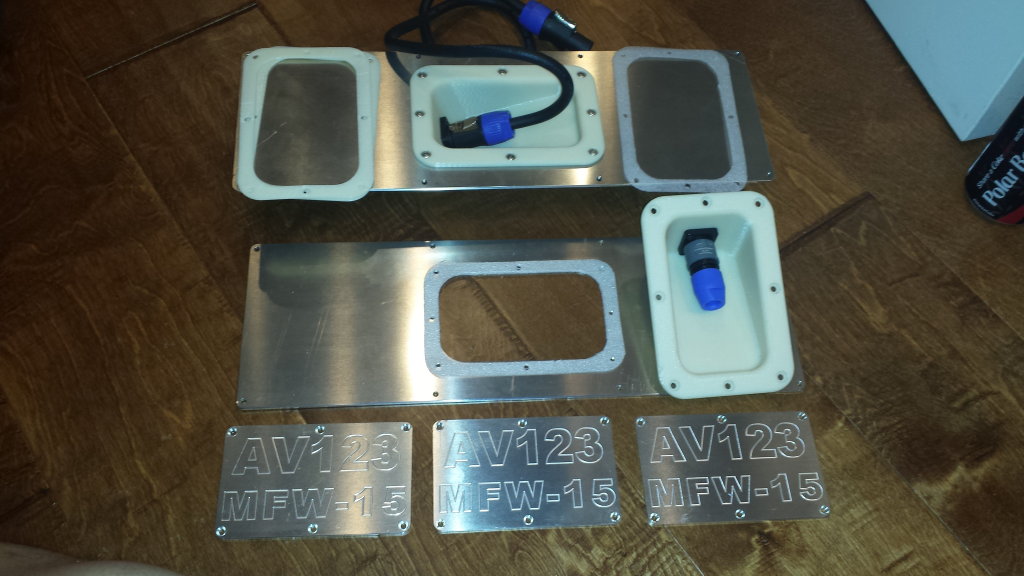

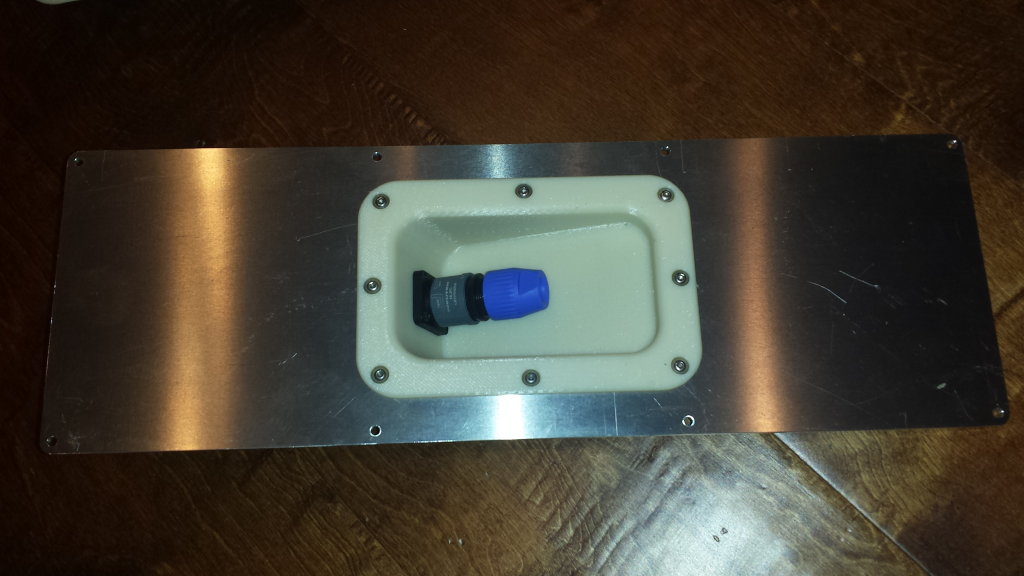

Here are the custom parts ready to be assembled.
|
|
|
|
|
|
20151209_203737
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:37:36 PM
|
|

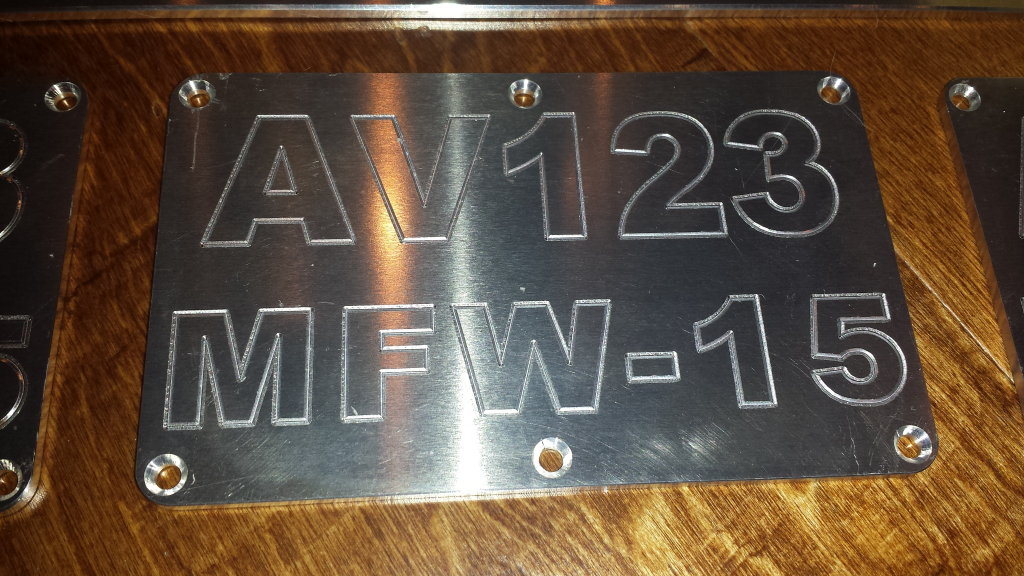

Added an engraving with the model
number on it.
|
|
|
20151210_204836
|
|
|
|
|
SAMSUNG-SGH-I337
12/10/2015 8:48:36 PM
|
|

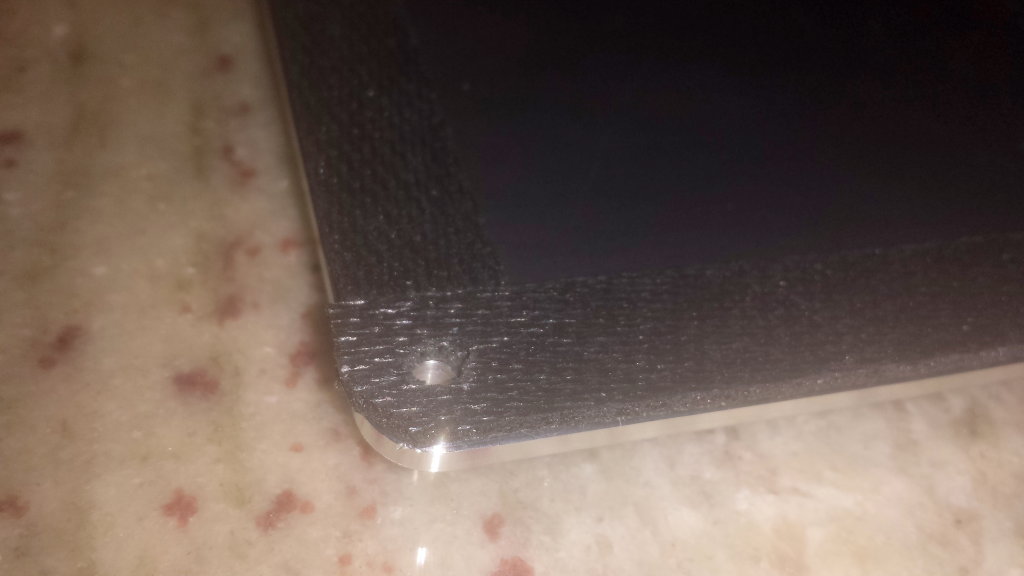

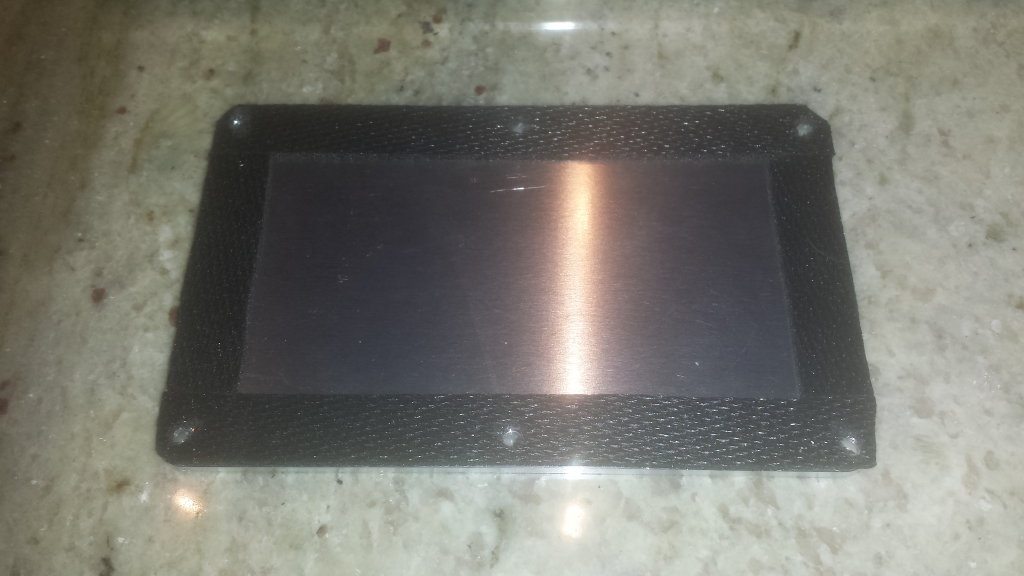

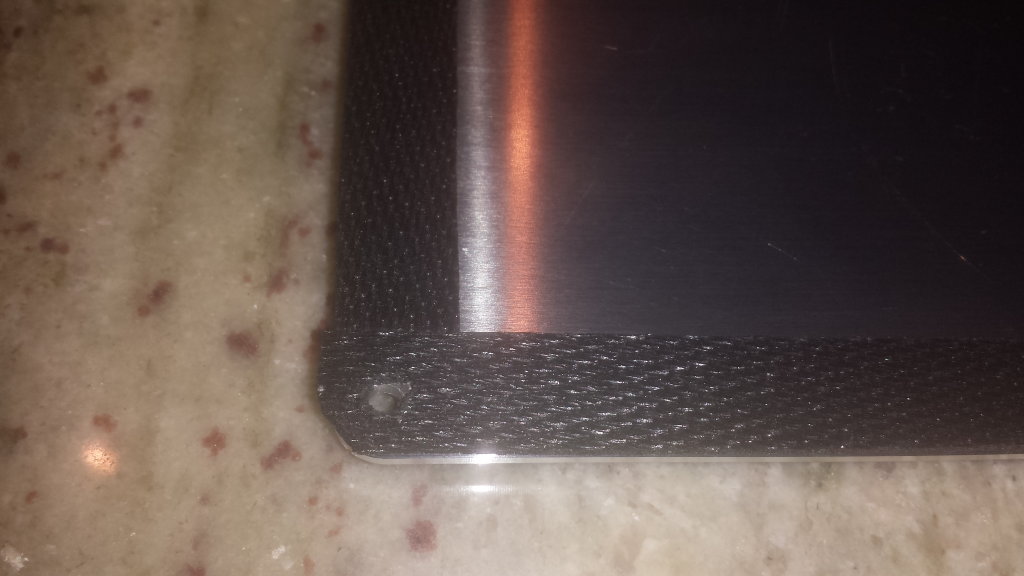

I used some adhesive backed foam weather stripping to
form an air tight seal,
|
|
|
|
|
|
20151209_204322
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:43:22 PM
|
|
|
|
|
20151209_204331
|
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:43:30 PM
|
|

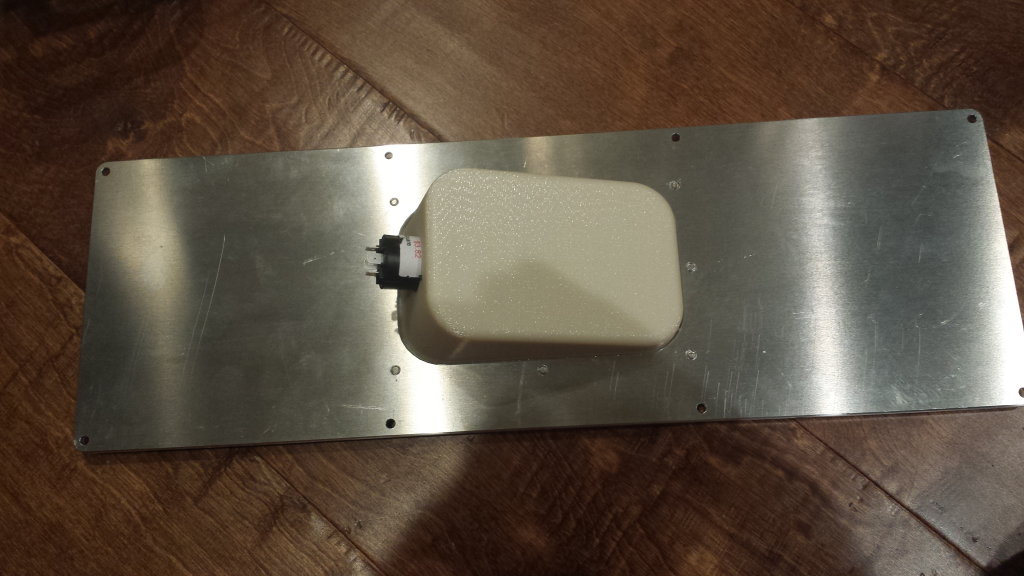

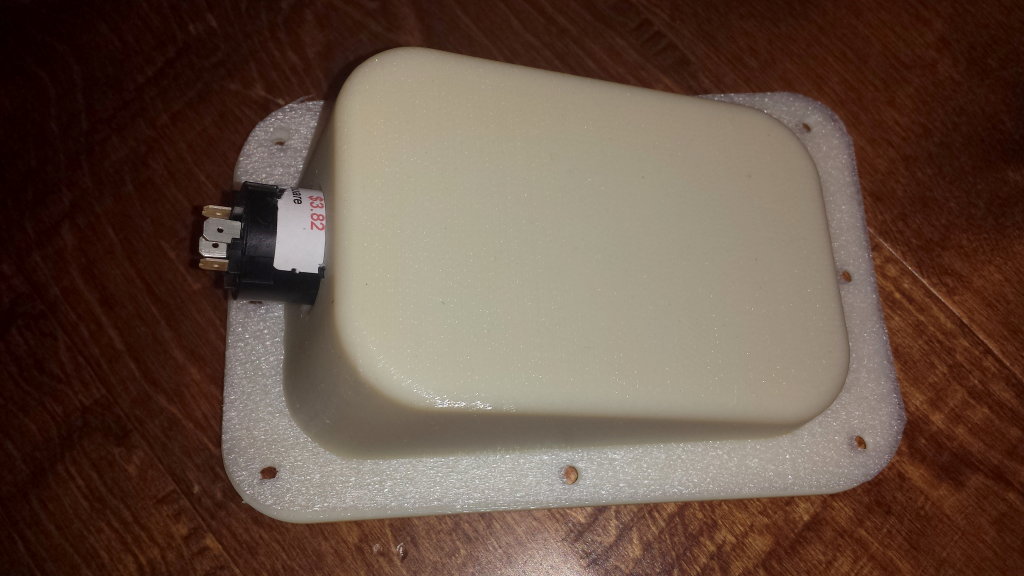

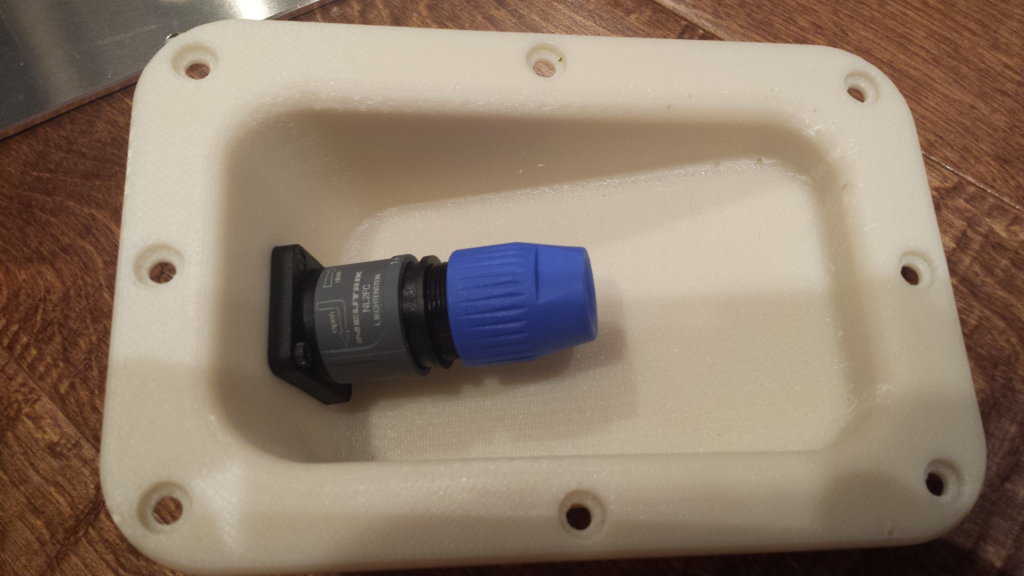

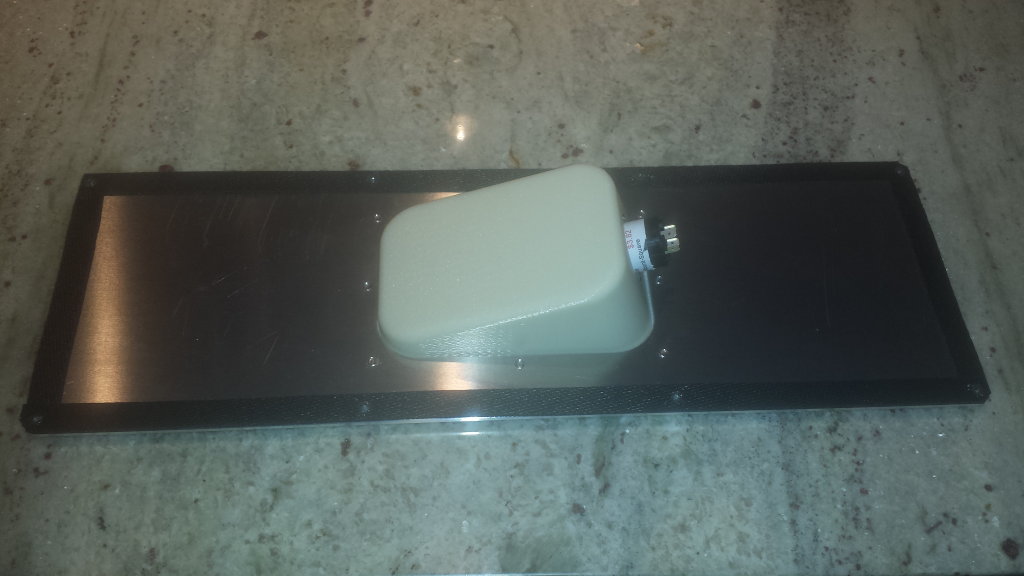

Back side of the speakon
connector housing I designed and 3d printed.
|
|
|
|
|
|
20151210_204844
|
|
|
|
SAMSUNG-SGH-I337
12/10/2015 8:48:44 PM
|
|
|
|
|
20151209_205522
|
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:55:22 PM
|
|
|
|
|
|
|
|
20151210_204850
|
|
|
|
SAMSUNG-SGH-I337
12/10/2015 8:48:49 PM
|
|
|
|
|
20151210_204858
|
|
|
|
|
SAMSUNG-SGH-I337
12/10/2015 8:48:58 PM
|
|
|
|
|
|
|
|
20151209_203755
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:37:55 PM
|
|
|
|
|
20151209_203844
|
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:38:44 PM
|
|
|
|
|
|
|
|
20151209_183842
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 6:38:42 PM
|
|
When I designed the speakon
housing, I also made a template from which to cut the foam sheet to make a gasket
for the tire.
|
|
|
20151209_184409
|
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 6:44:09 PM
|
|

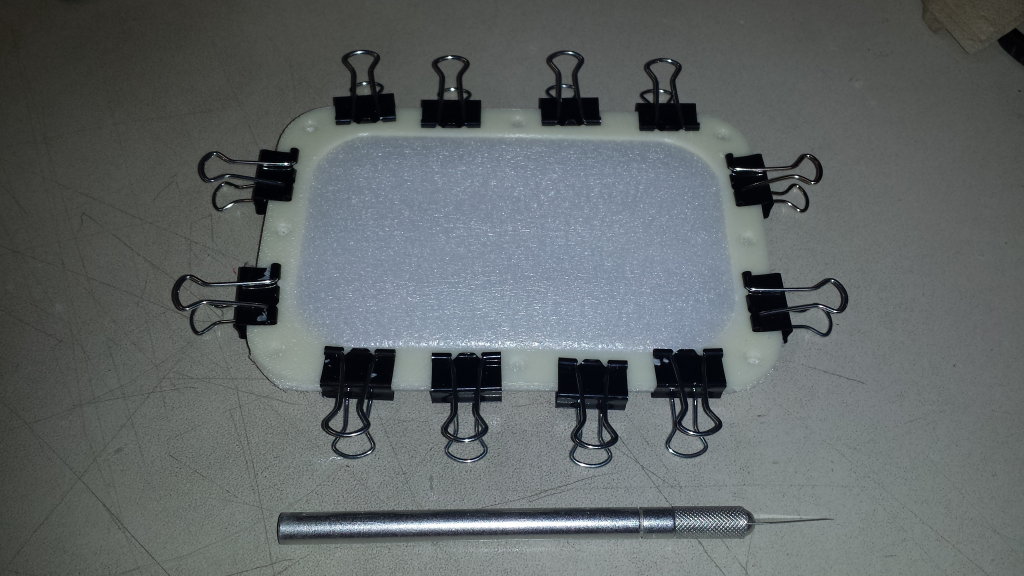

This is the gasket template with the foam material
sandwiched in between 2 template and held into place with paperclips.
An E-Xacto knife with a sharp
new blade is used to
cut the gasket to size and shape.
|
|
|
|
|
|
20151209_183834
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 6:38:34 PM
|
|

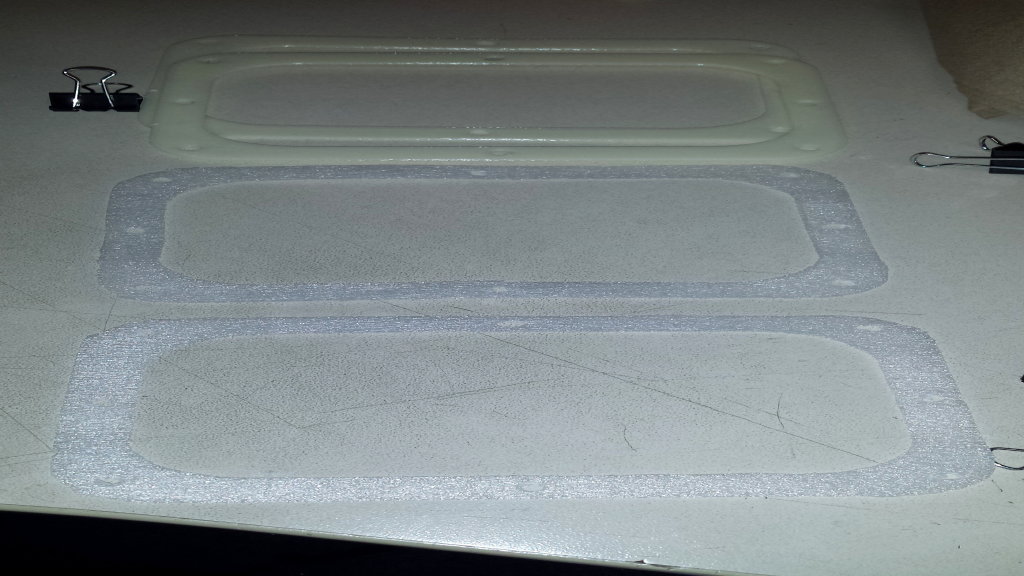

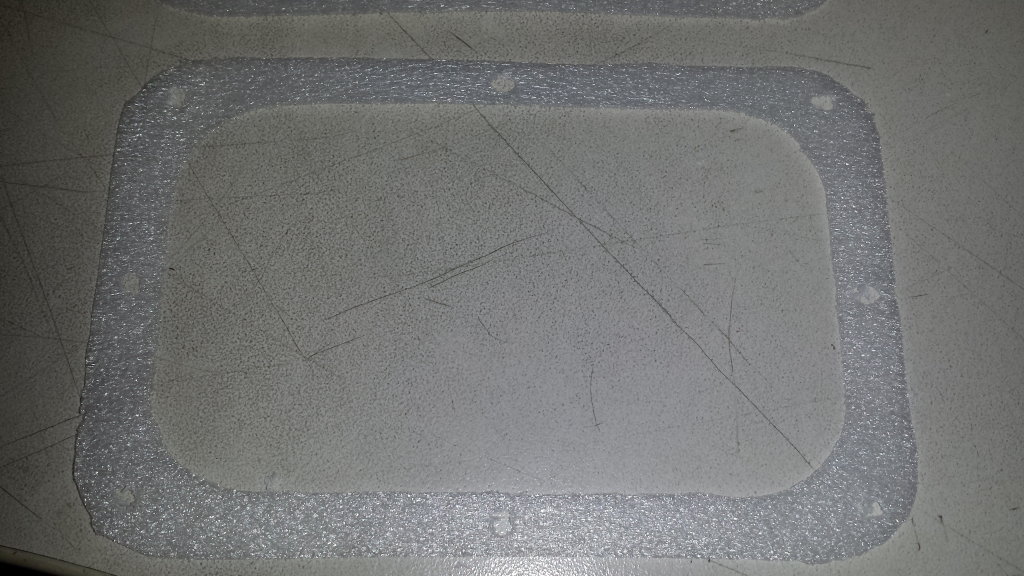

Here you can see the birth of 2
nice gaskets!
|
|
|
20151209_184426
|
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 6:44:25 PM
|
|

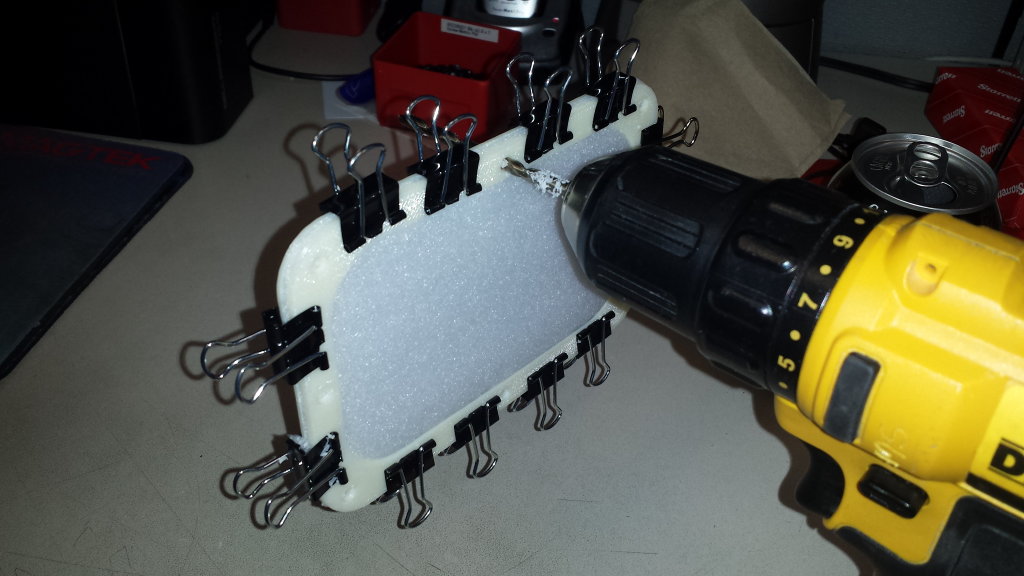

The drill made the best holes in the gaskets for the screw
mounting holes.
|
|
|
|
|
|
20151211_213143
|
|
|
|
SAMSUNG-SGH-I337
12/11/2015 9:31:42 PM
|
|

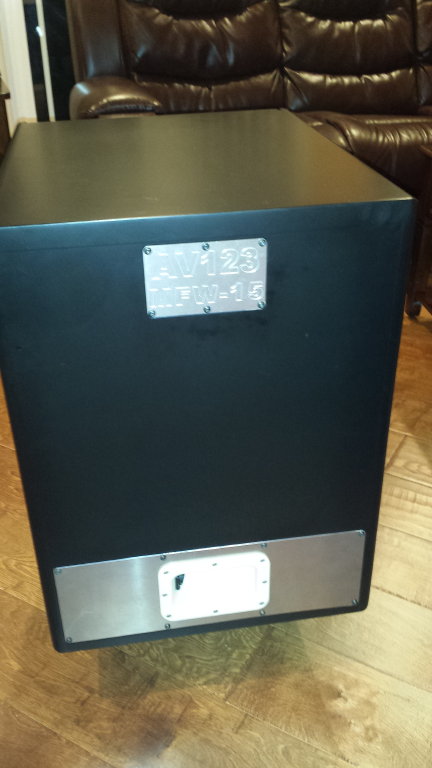

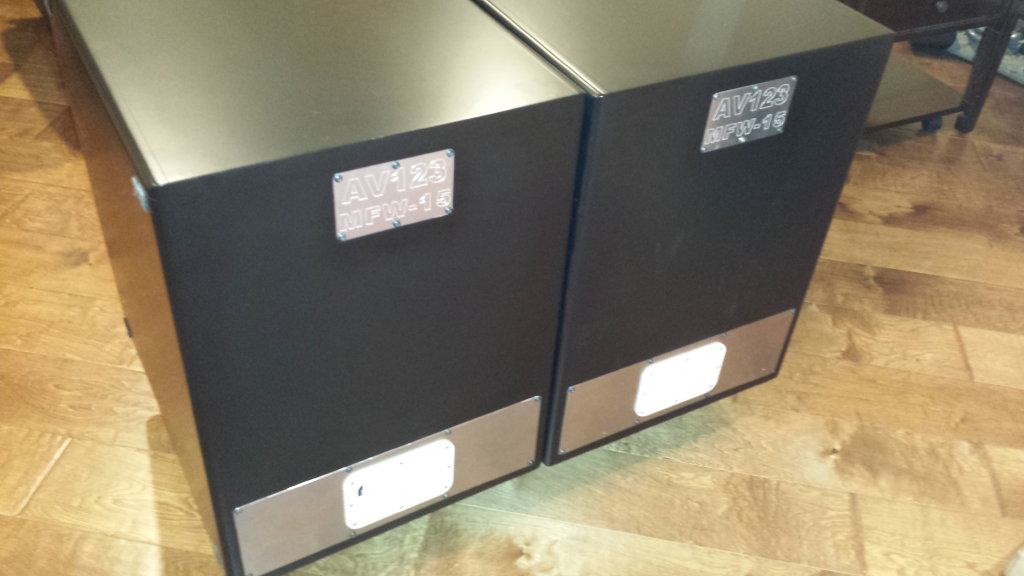

Here you can see the speaker
fully assembled. .Everything fit perfectly.
|
|
|
20151211_213159
|
|
|
|
|
SAMSUNG-SGH-I337
12/11/2015 9:31:58 PM
|
|
|
|
|
|
|
|
20151209_202609
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:26:08 PM
|
|
|
|
|
20151209_202616
|
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:26:15 PM
|
|
|
|
|
|
|
|
20151209_202521
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:25:21 PM
|
|
|
|
|
20151209_202534
|
|
|
|
|
SAMSUNG-SGH-I337
12/9/2015 8:25:34 PM
|
|
|
|
|
