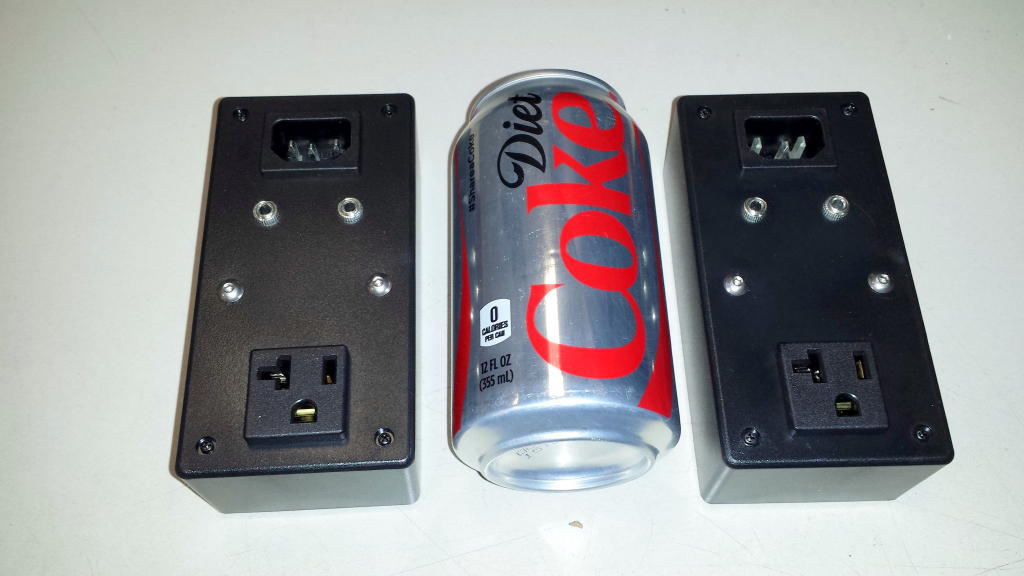

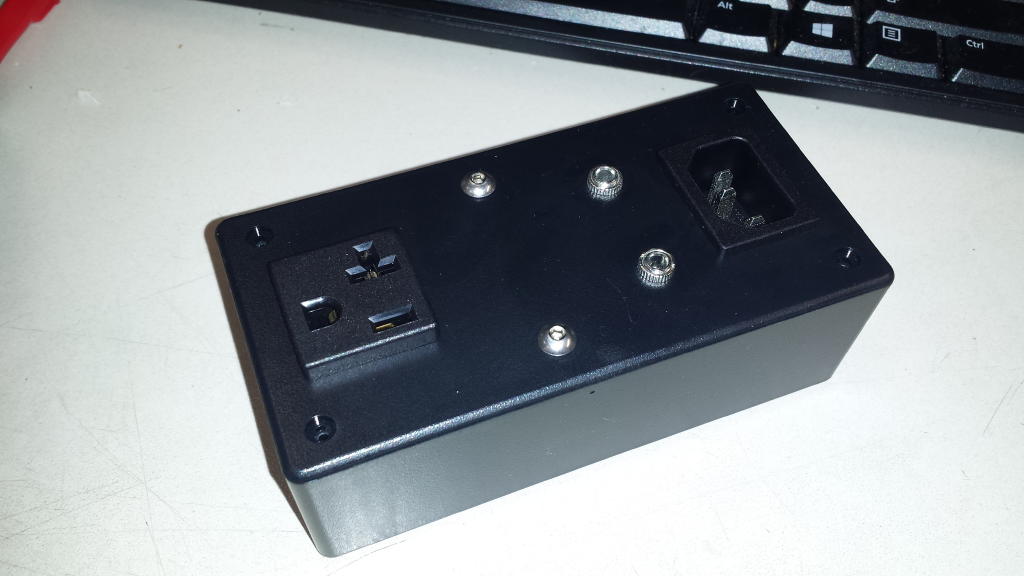

I built these 2 remote amp turn
on control boxes. They plug into the Denon receiver 12v remote control jack.
|
|
|
20150821_113827
|
|
|
|
|
SAMSUNG-SGH-I337
08/21/15 11:38:27 AM
|
|

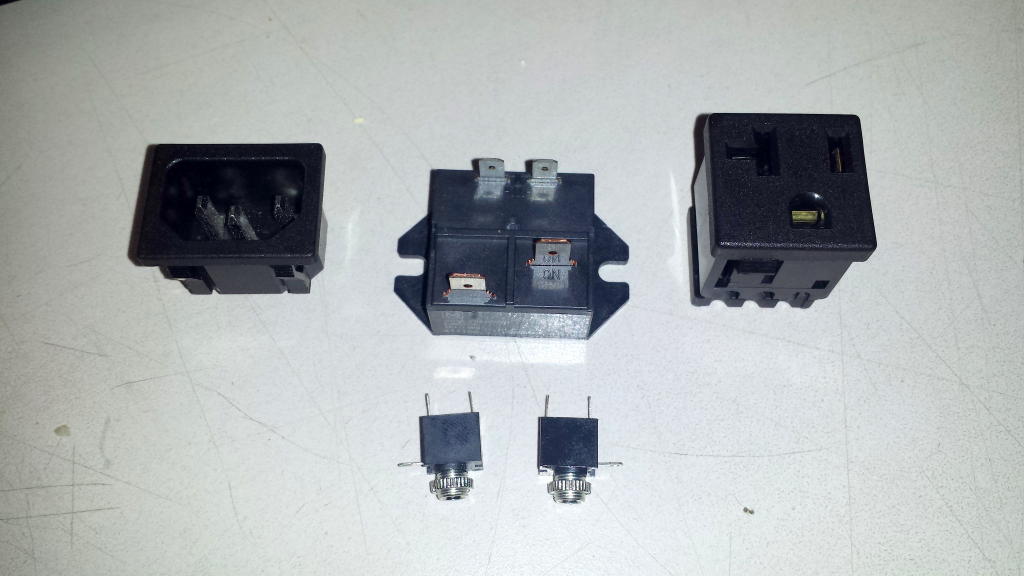

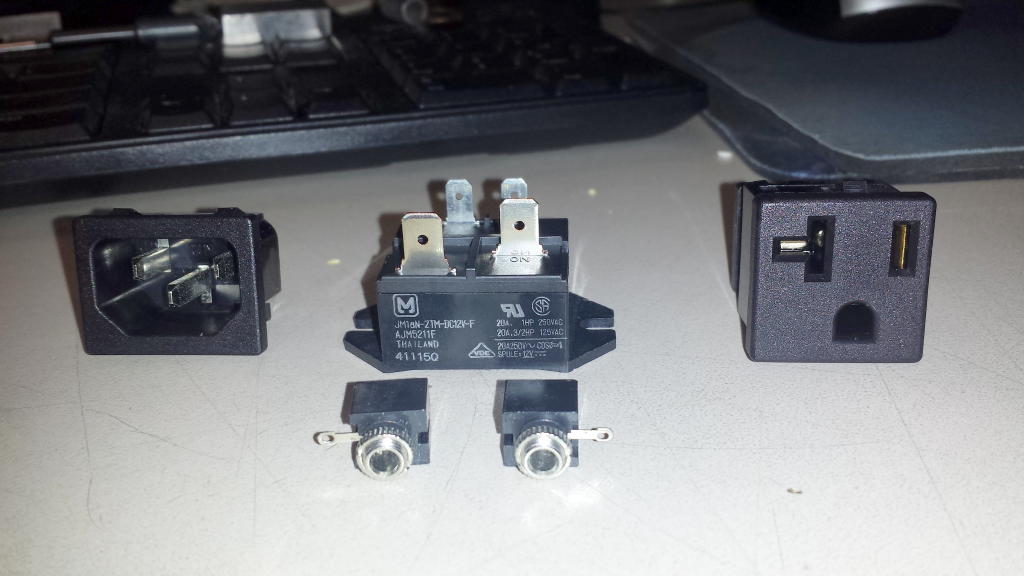

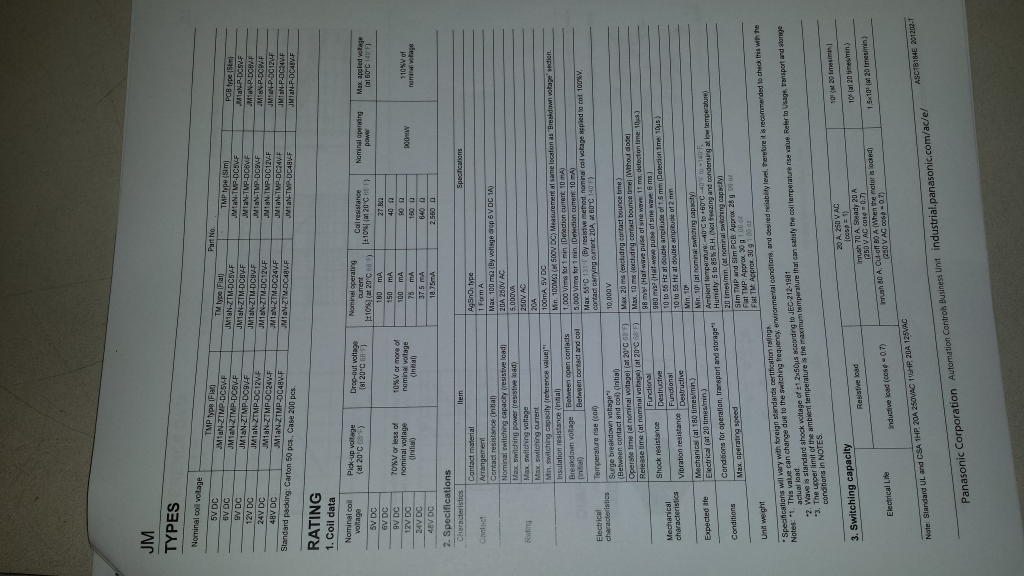

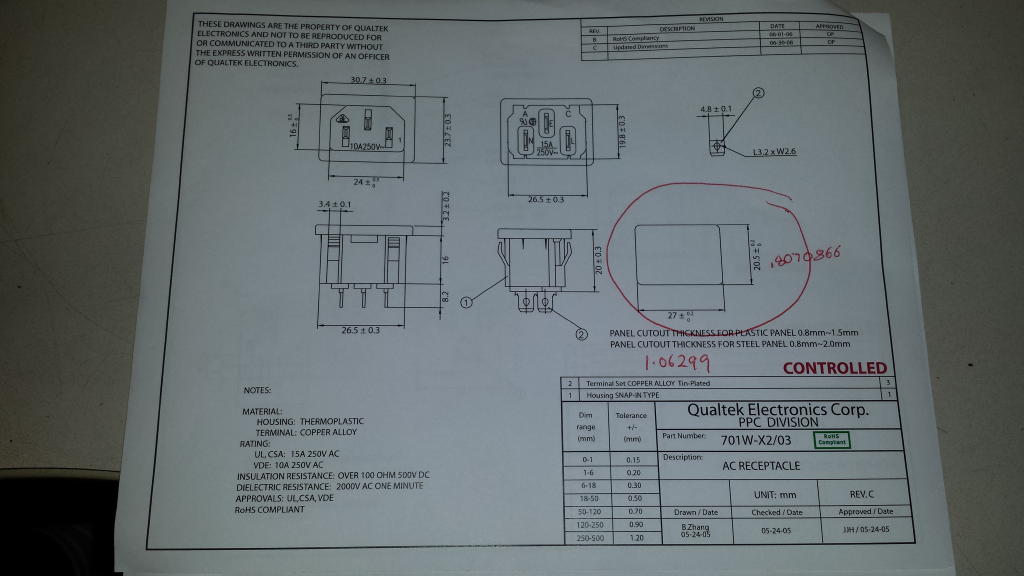

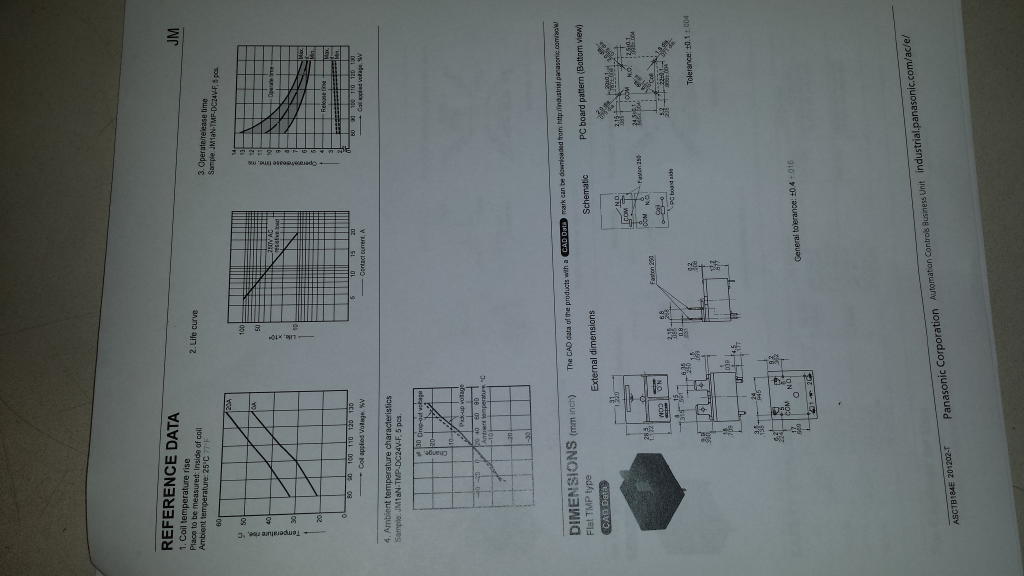

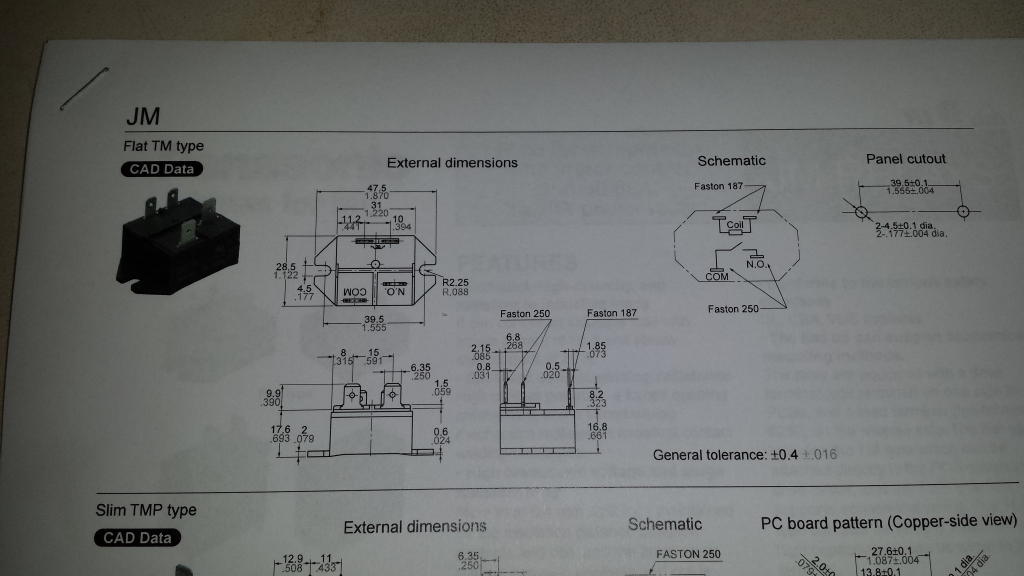

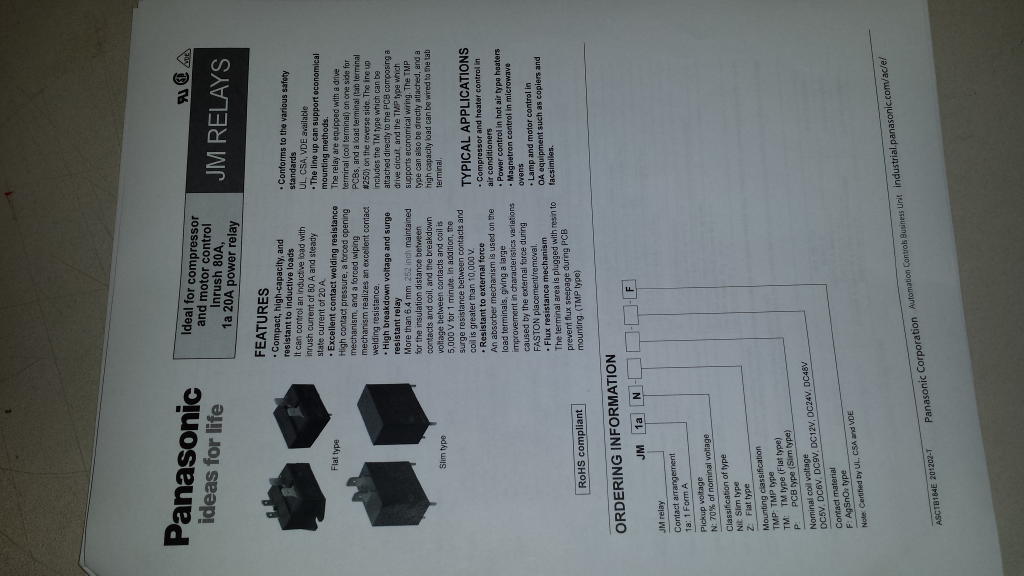

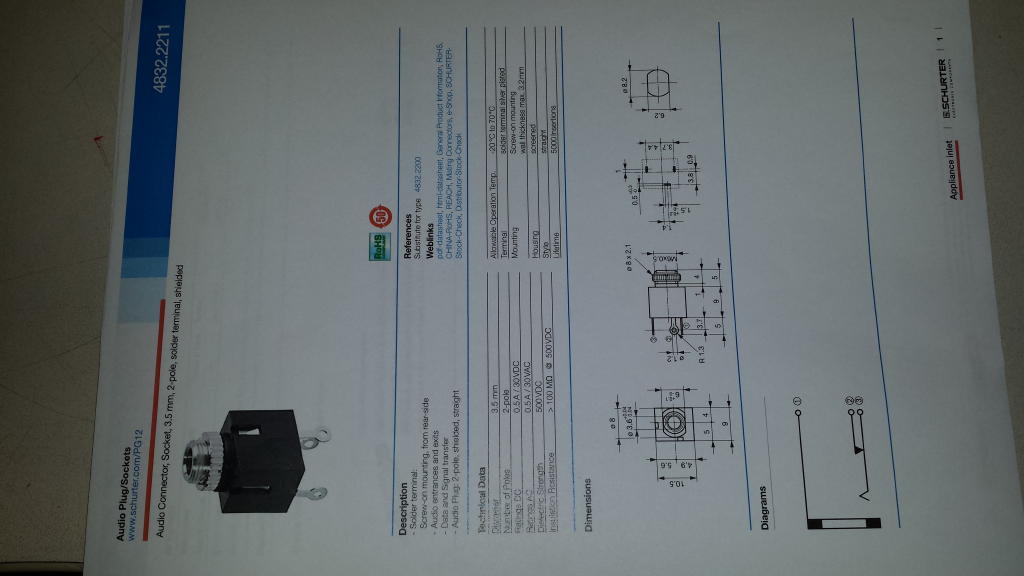

Basic components sourced from Digikey, Mouser, or
Amazon.
|
|
|
|
|
|
20150821_113849
|
|
|
|
SAMSUNG-SGH-I337
08/21/15 11:38:49 AM
|
|
|
|
|
20150827_152523
|
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 3:25:22 PM
|
|

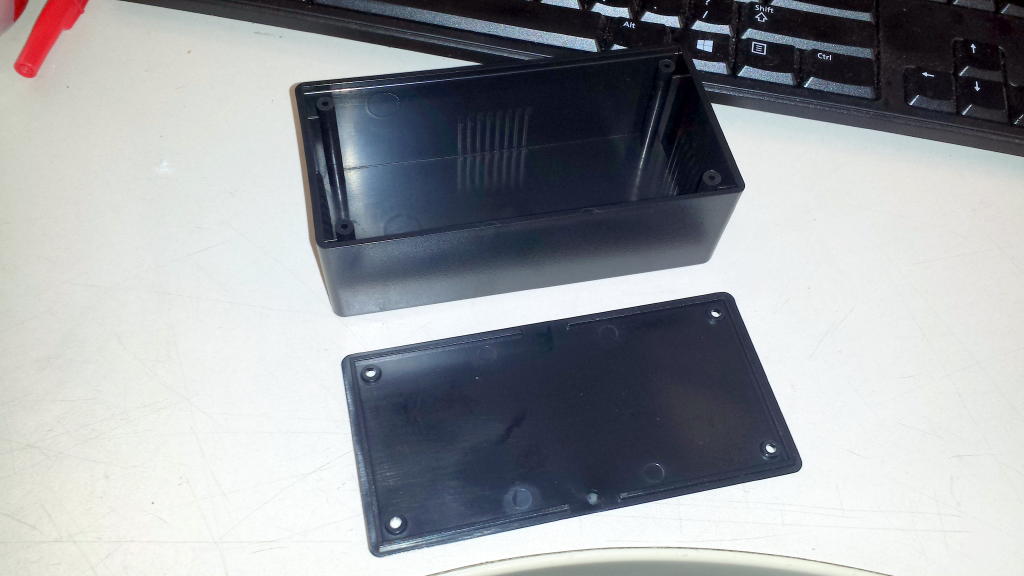

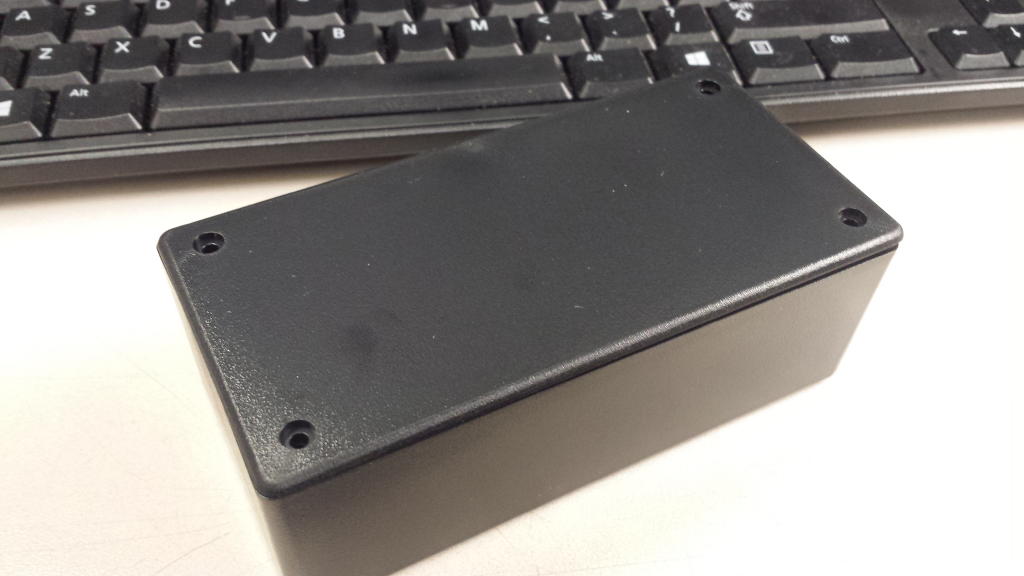

I picked up these electronic project boxes from my local
electronics supply house.
|
|
|
|
|
|
20150827_152548
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 3:25:48 PM
|
|
|
|
|
Project Box
64-1033B_asm-1-1
|
|
|
|
|
08/28/15 3:19:32 PM
|
|

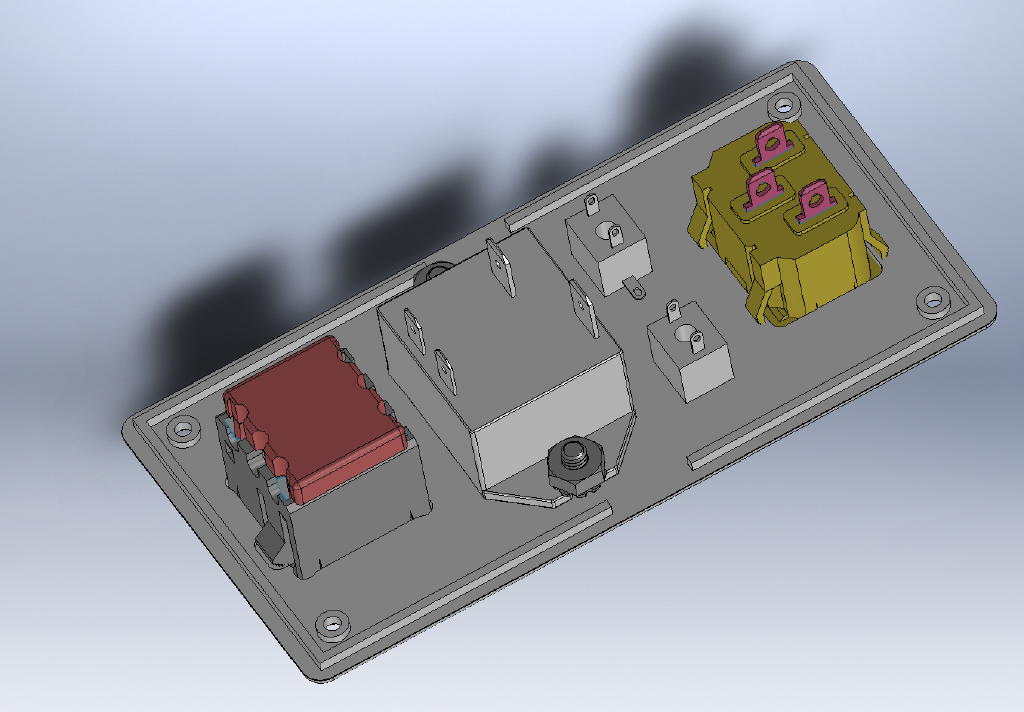

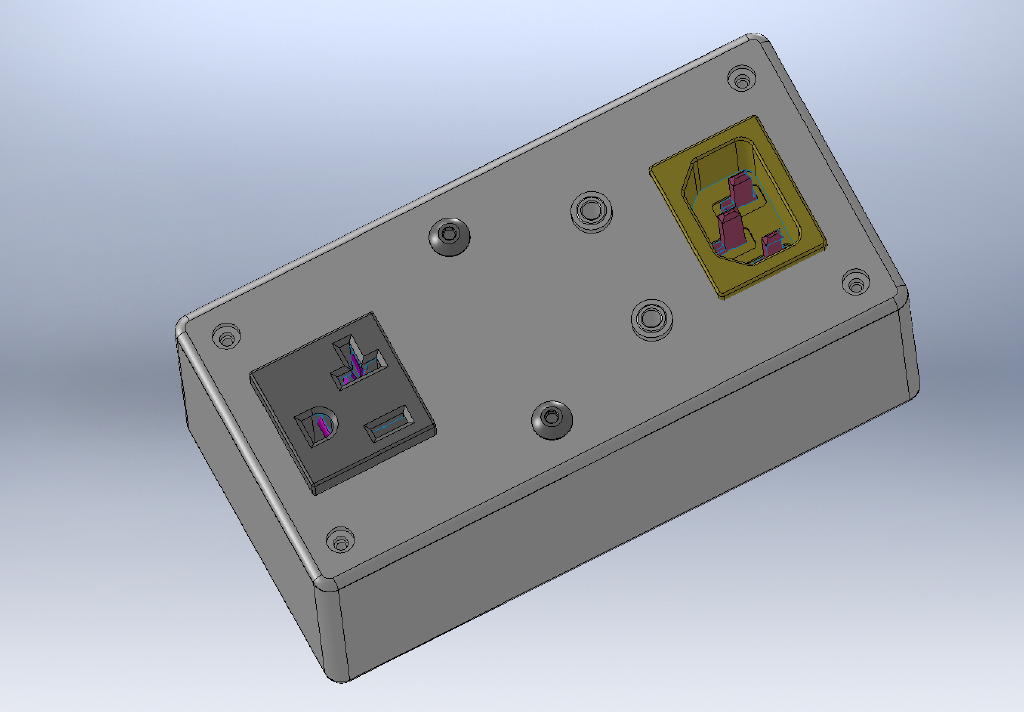

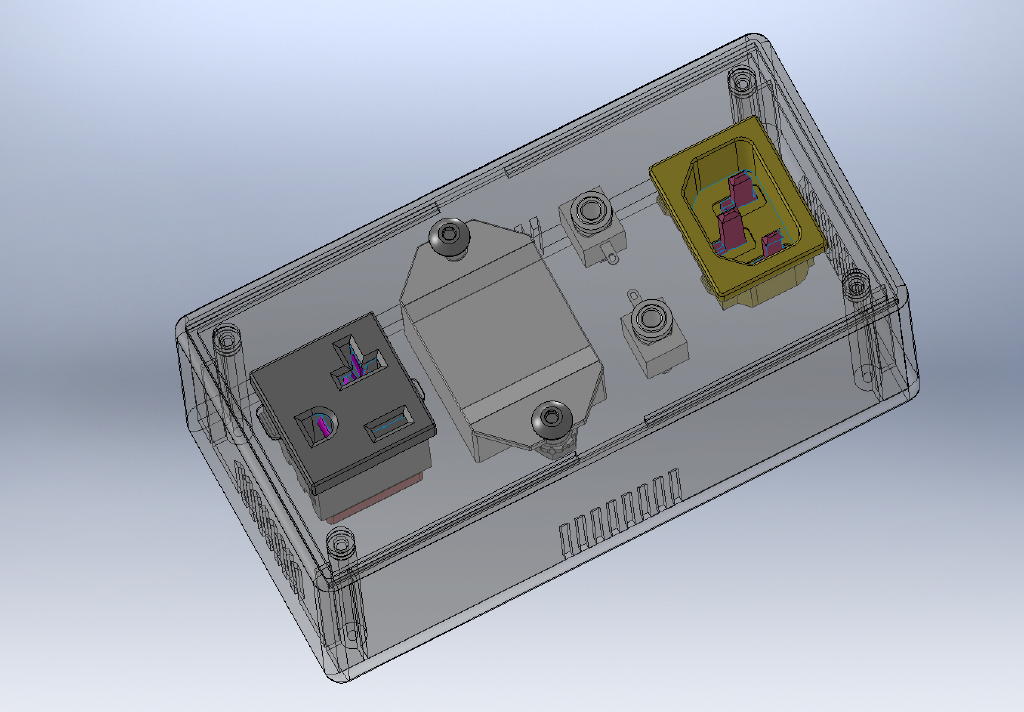

I modeled the whole assembly up in Solid Works so I
could customize the layout and fit of all the components.
|
|
|
|
|
|
Project
Box 64-1033B_asm-1-2
|
|
|
|
08/28/15 3:19:32 PM
|
|
|
|
|
Project Box
64-1033B_asm-1-3
|
|
|
|
|
08/28/15 3:19:32 PM
|
|
|
|
|
|
|
|
20150827_154737
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 3:47:36 PM
|
|

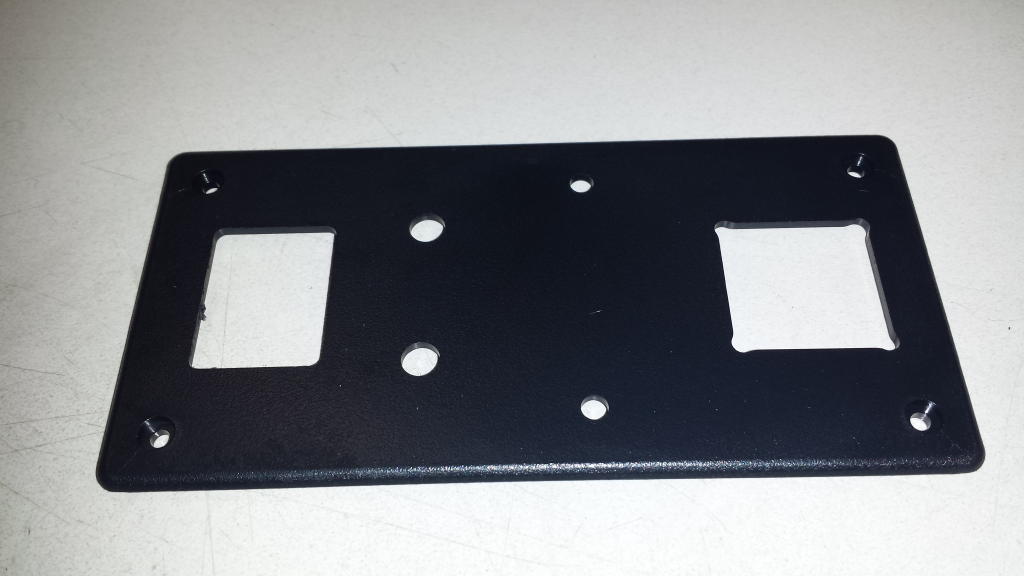

After exporting the cad data
into my machining software I created a tool path to machine the cover panel
to hold the components,
|
|
|
20150827_154750
|
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 3:47:50 PM
|
|

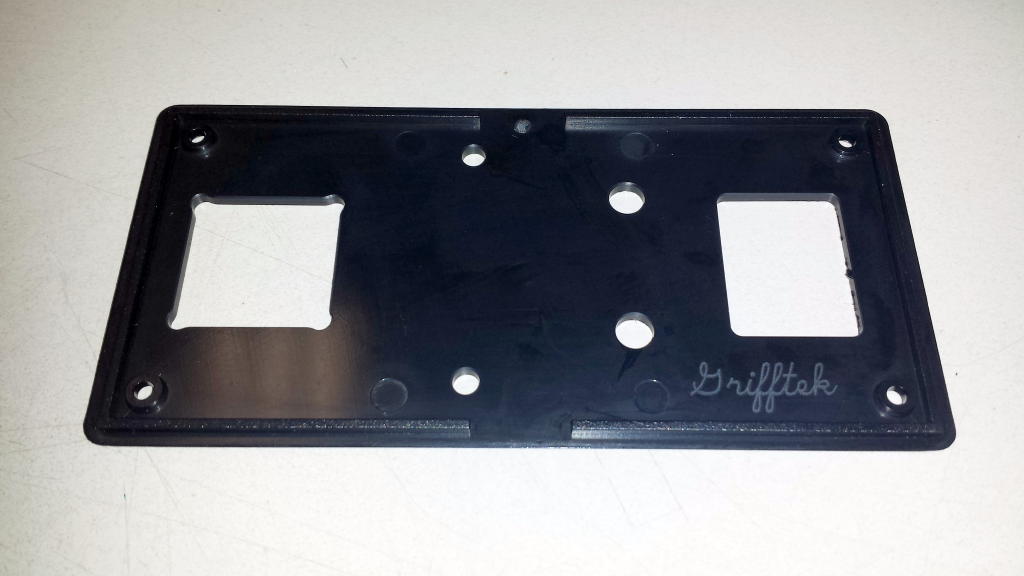

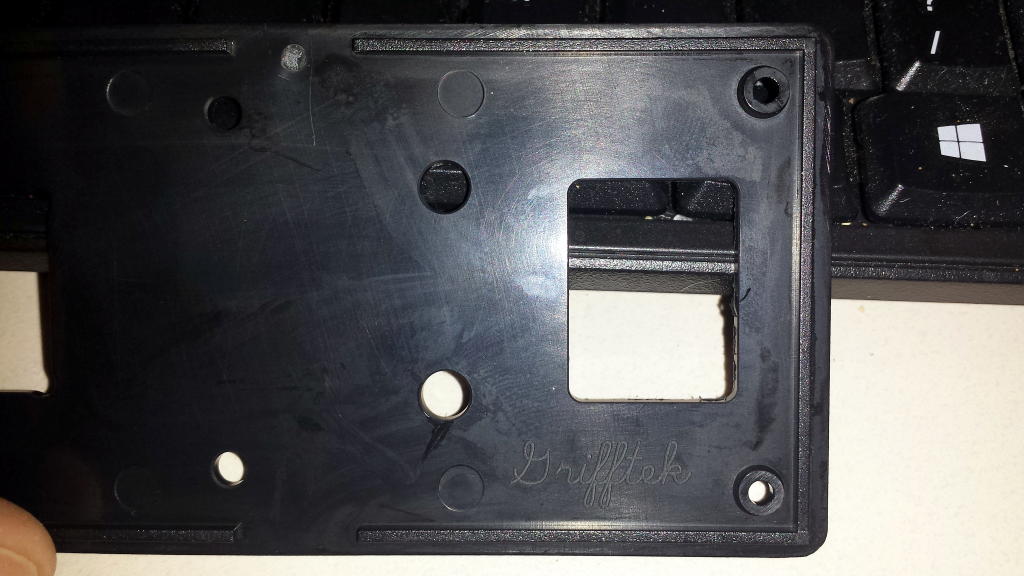

I deburred all the edges I machined with a small chamfer
tool and also used the same tool to machine my logo into the part.
|
|
|
|
|
|
20150827_154805
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 3:48:05 PM
|
|
|
|
|
20150827_152602
|
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 3:26:02 PM
|
|
|
|
|
|
|
|
20150827_152613
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 3:26:12 PM
|
|
|
|
|
20150827_175314
|
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 5:53:13 PM
|
|

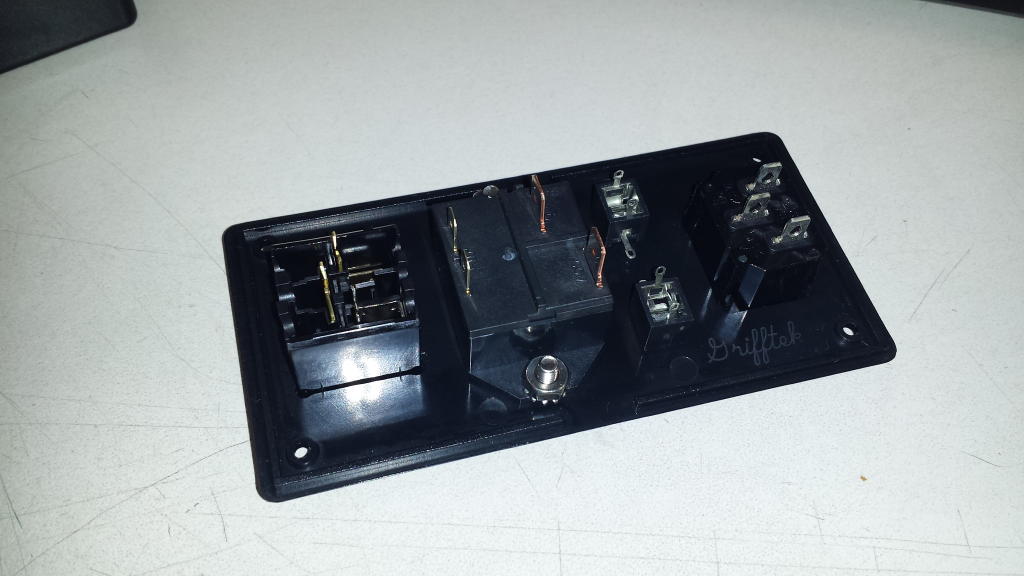

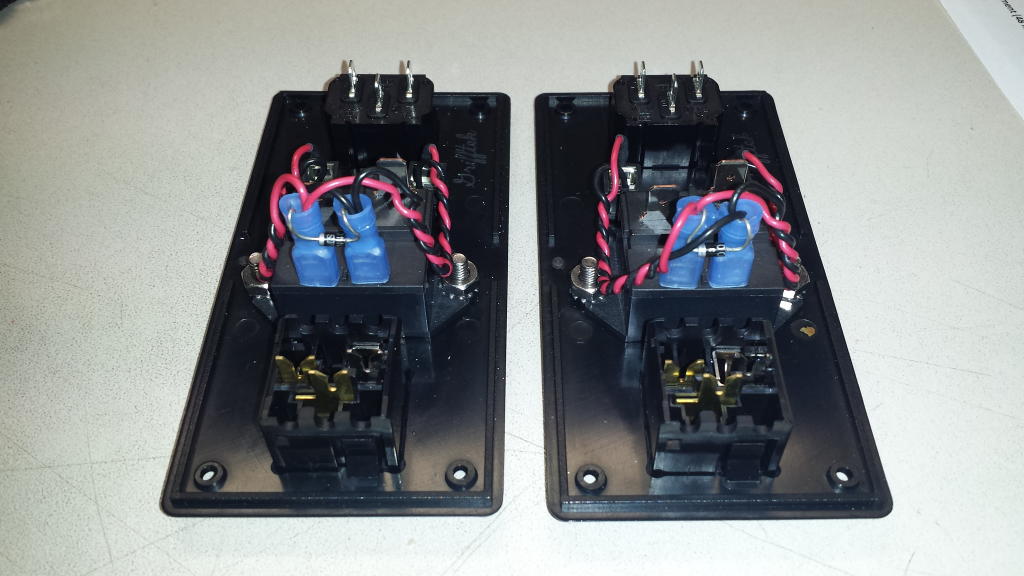

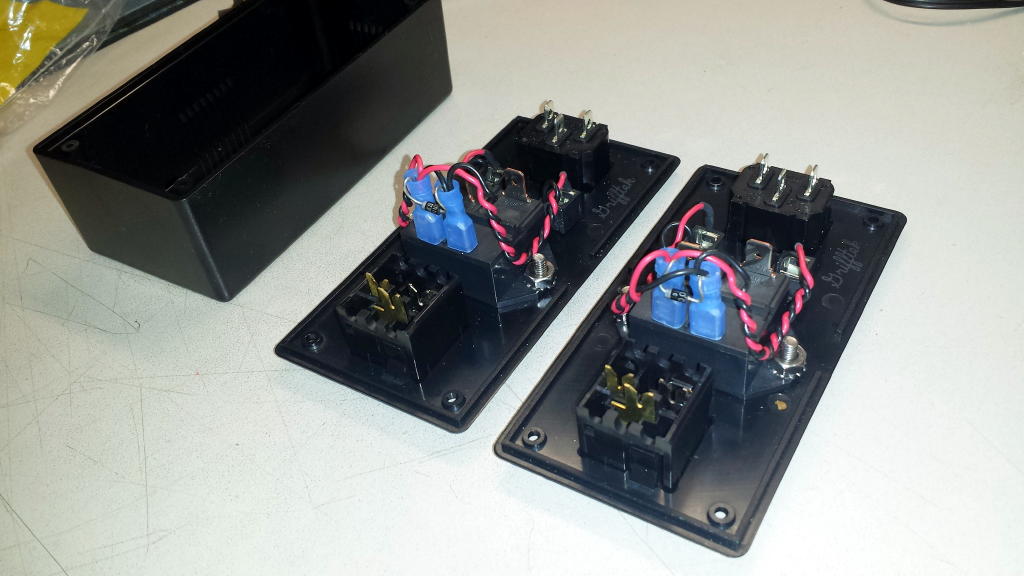

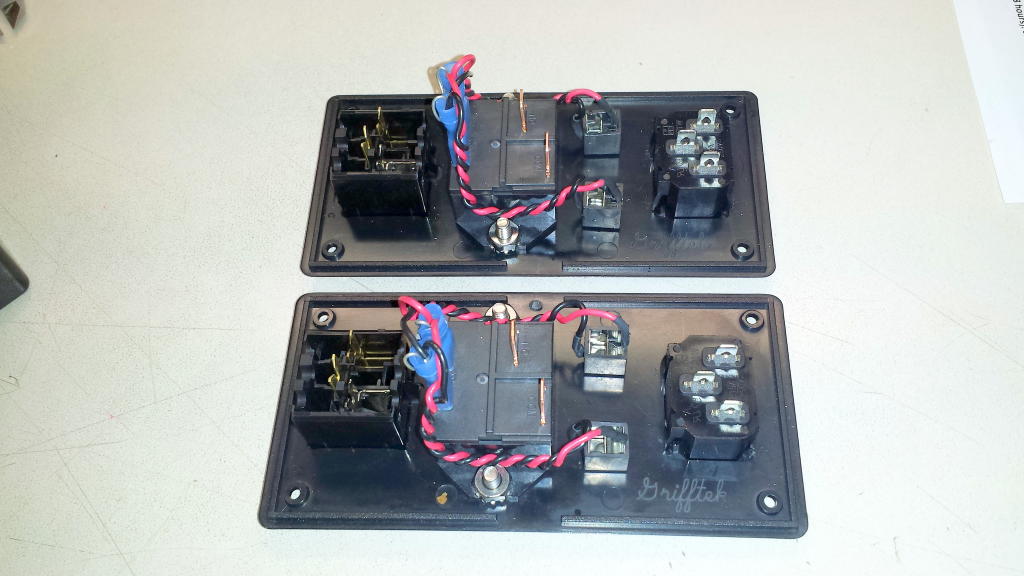

Control side wiring. Notice the back EMF diode across
the relay coil.
|
|
|
|
|
|
20150827_175325
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 5:53:25 PM
|
|
|
|
|
20150827_175304
|
|
|
|
|
SAMSUNG-SGH-I337
08/27/15 5:53:03 PM
|
|
|
|
|
|
|
|
20150828_123343
|
|
|
|
SAMSUNG-SGH-I337
08/28/15 12:33:43 PM
|
|

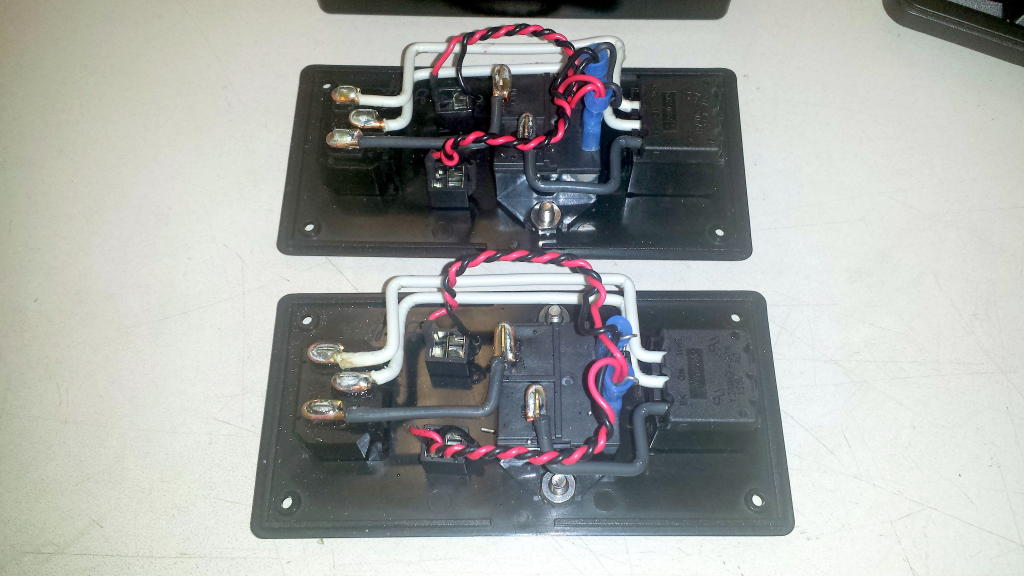

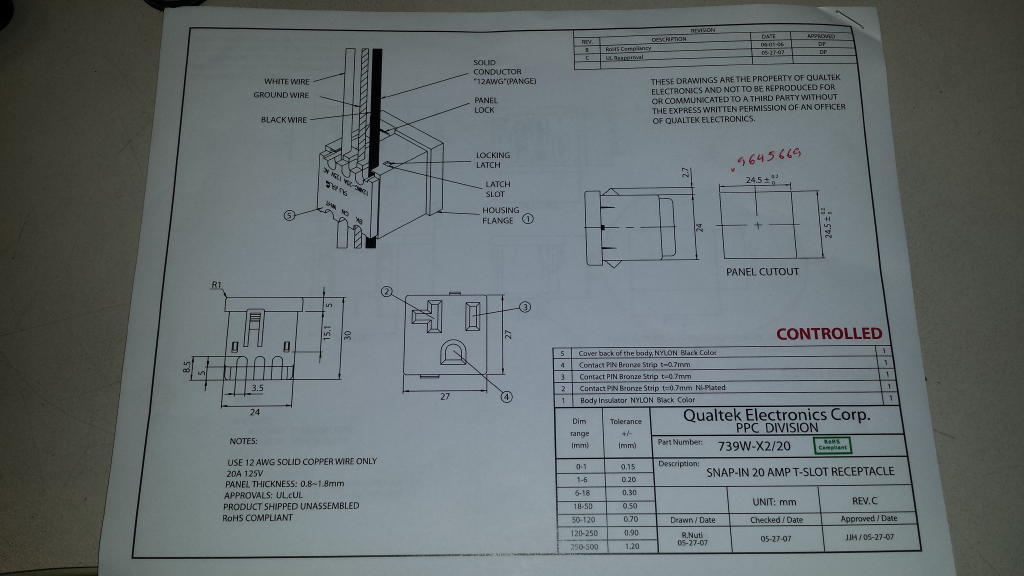

I

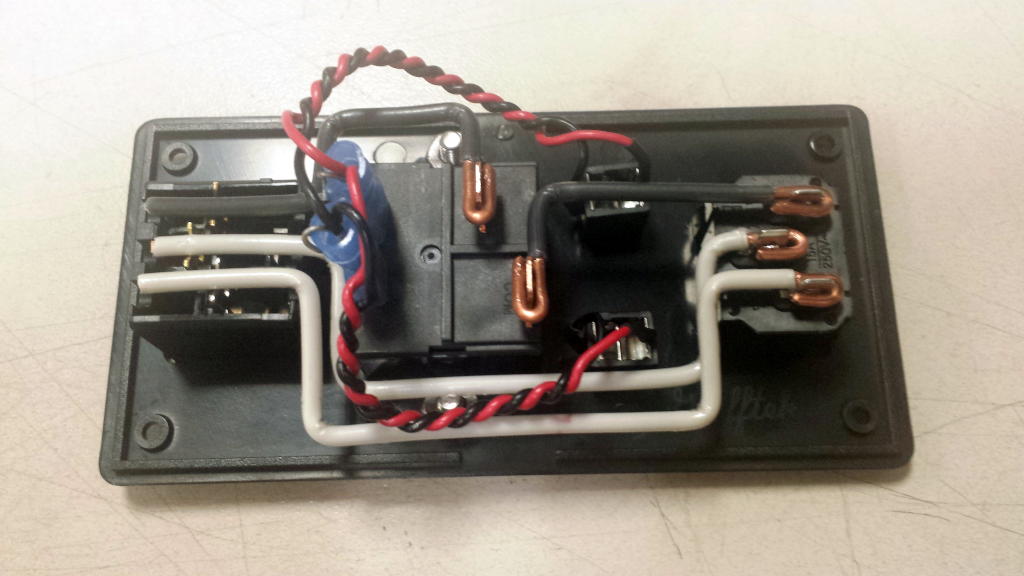

used some 12 gauge solid copper wiring for the line side.
|
|
|
