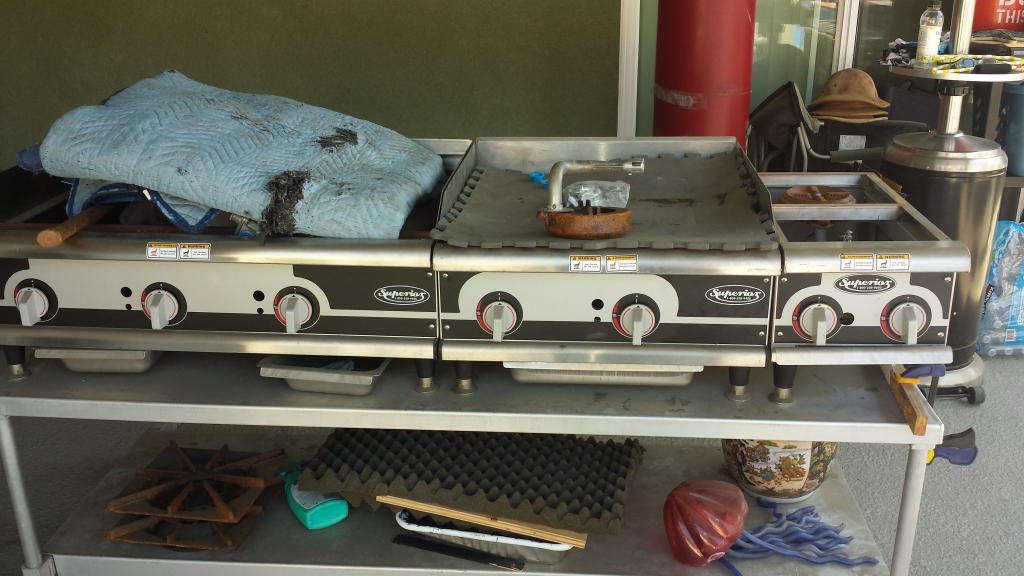

20150823_144529

SAMSUNG-SGH-I337
08/23/15 2:45:29 PM

Craigslist Special $700.00 Brand new and un-used

(1) APW Wyott GCB-36i 36” Char broiler, 120,000 BTU

(1) APW Wyott GGM-24i 24” Griddle, 50,000 BTU

(1) APW Wyott GHP-2I Dual Burner Range, 56,000 BTU

30” x 72” x 24” cooking equipment stand with locking casters.

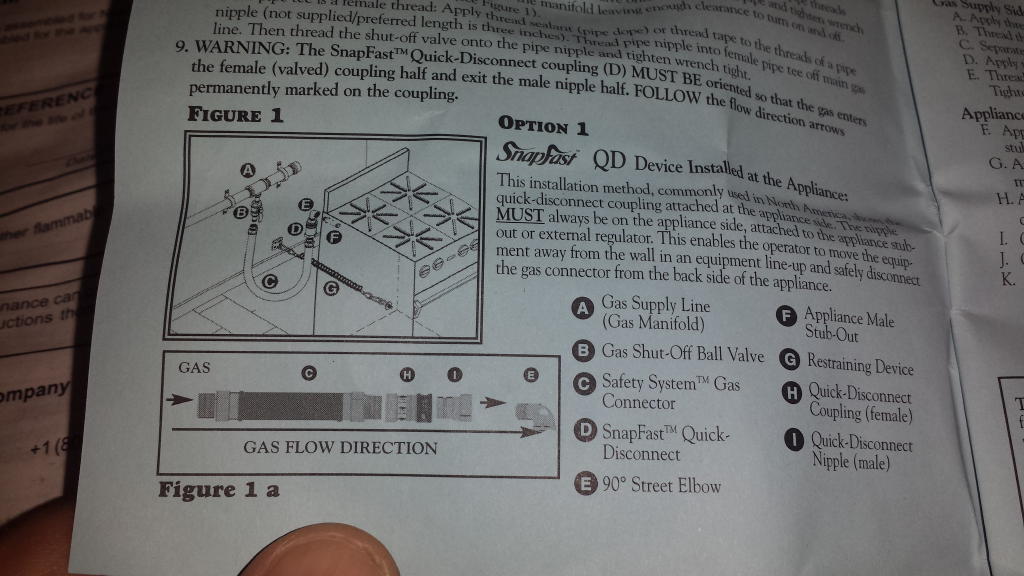

(4) Dormont 1675KIT48 48” ¾”Gas Connector Kit with 2 Elbows, Quick Connect, 3/4” Ball Valve and Retention Cable.

(3) Dormont ¾” Pressure regulator

I purchased the 15’ 3/4 hose and quick connect from Tejas Smokers

The rest of the plumbing fittings came from the local Ferguson Plumbing Supply

20150823_144543

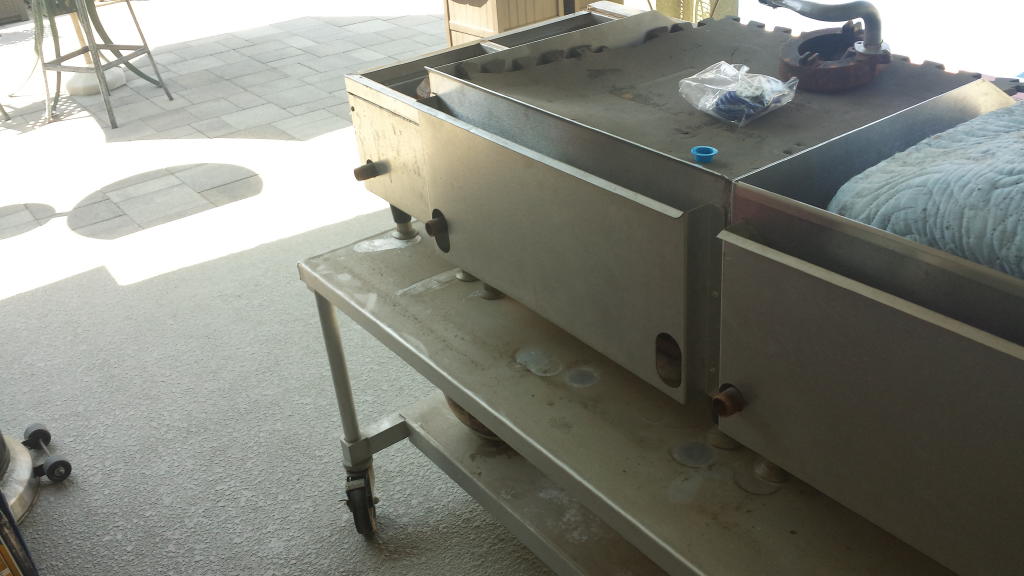

Rear view showing gas inlet nipples.

20150828_000328

SAMSUNG-SGH-I337
08/28/15 12:03:27 AM

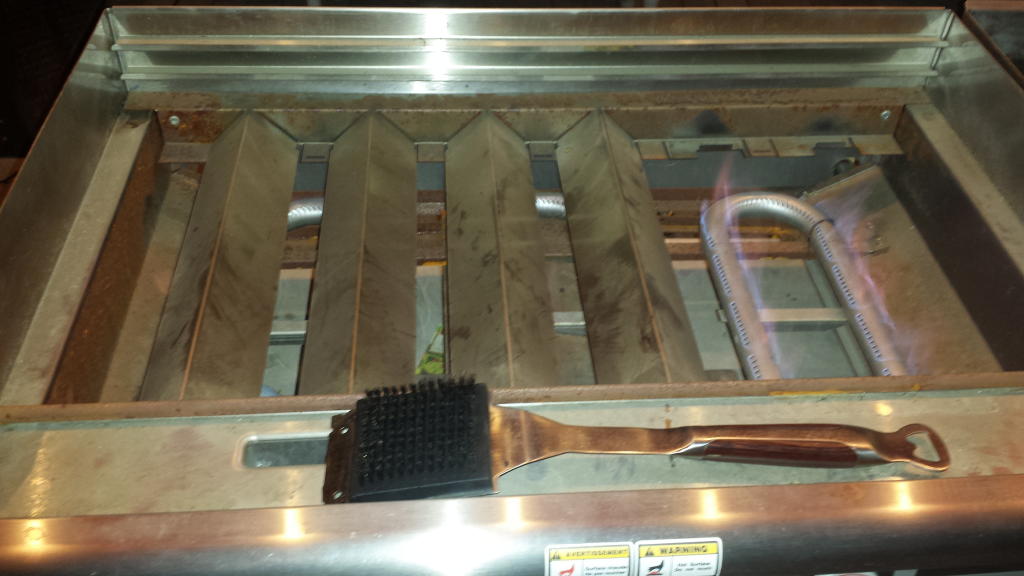

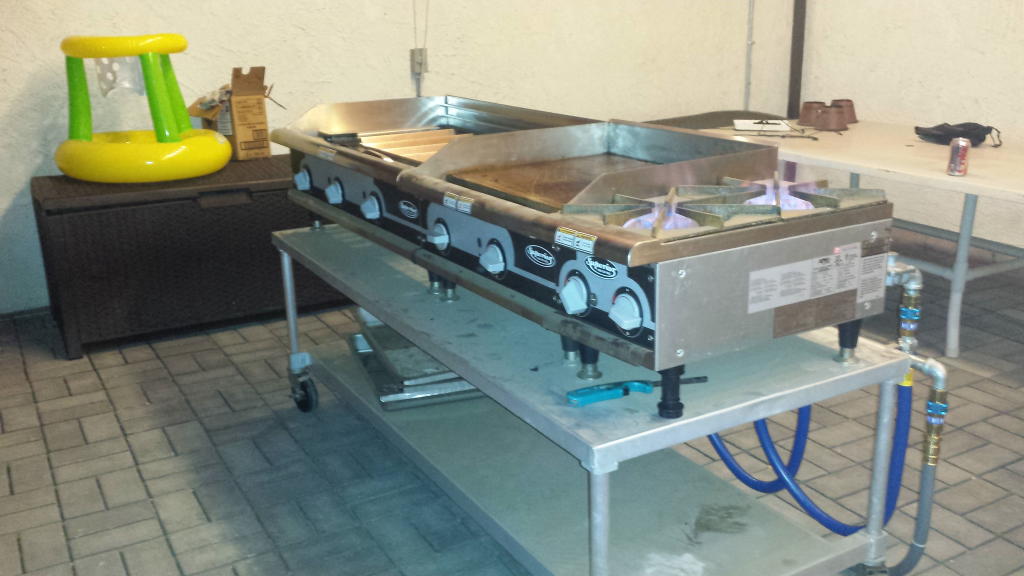

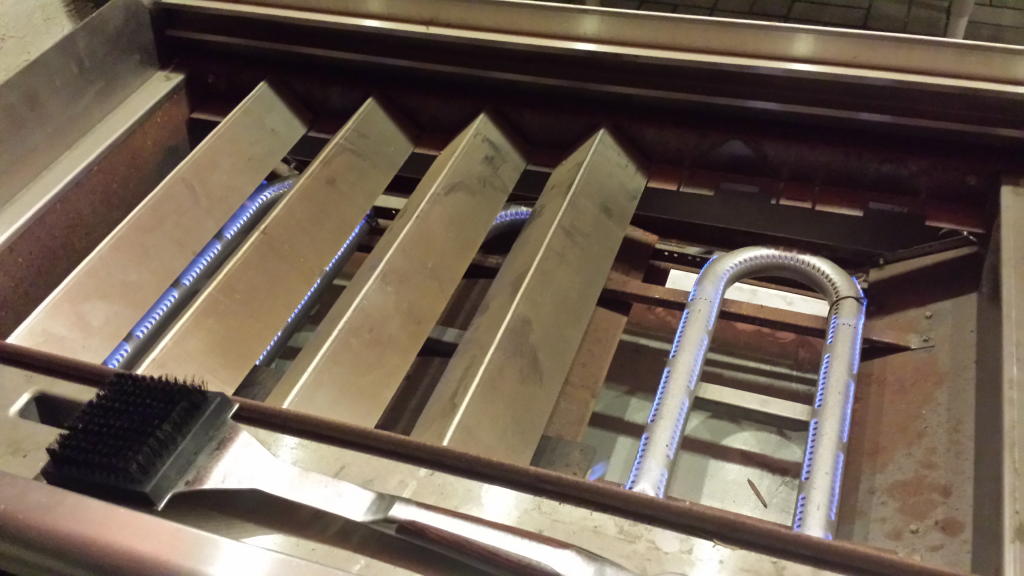

Test fire!

20150828_000254

SAMSUNG-SGH-I337
08/28/15 12:02:53 AM

Finished gas hookup using the stub out for the fire pit which has not been constructed.

20150823_144549

SAMSUNG-SGH-I337
08/23/15 2:45:49 PM

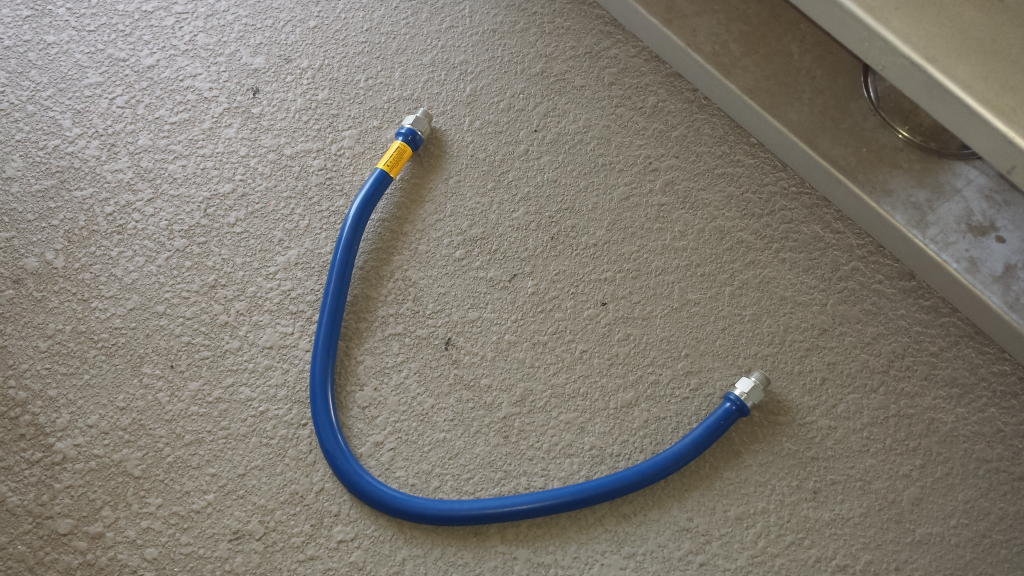

48” Dormont gas appliance supply line.

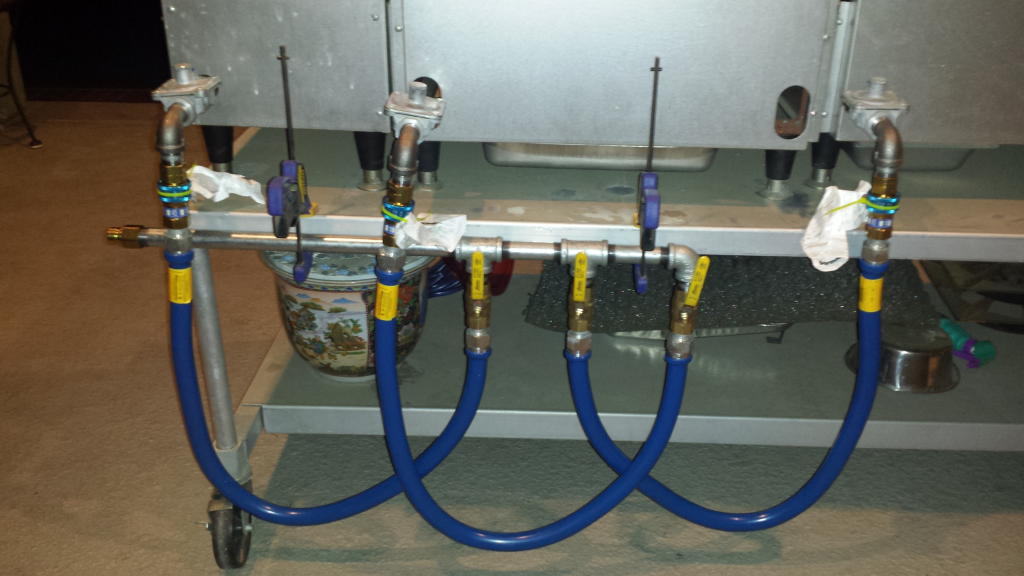

20150824_225109

SAMSUNG-SGH-I337
08/24/15 10:51:08 PM

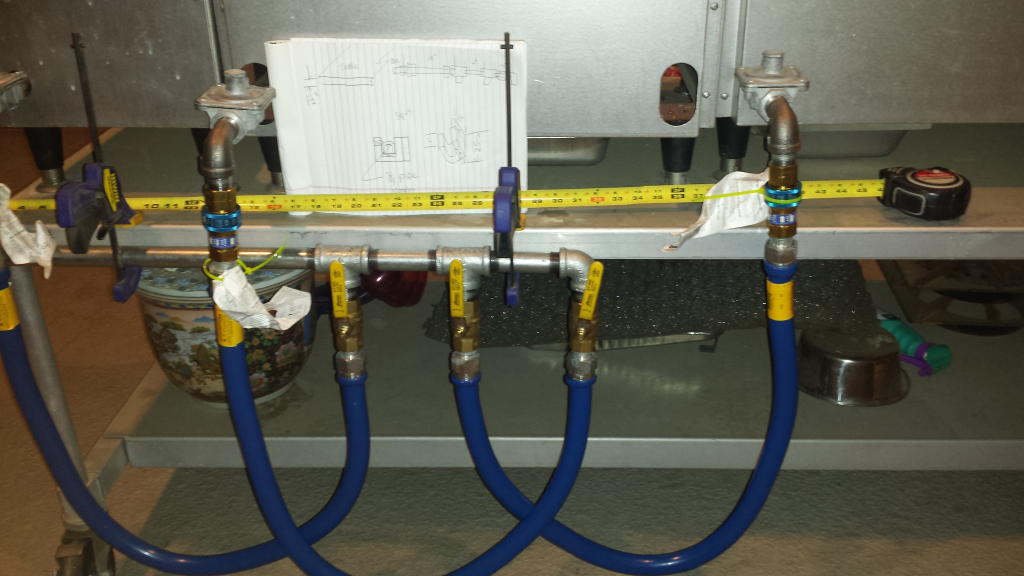

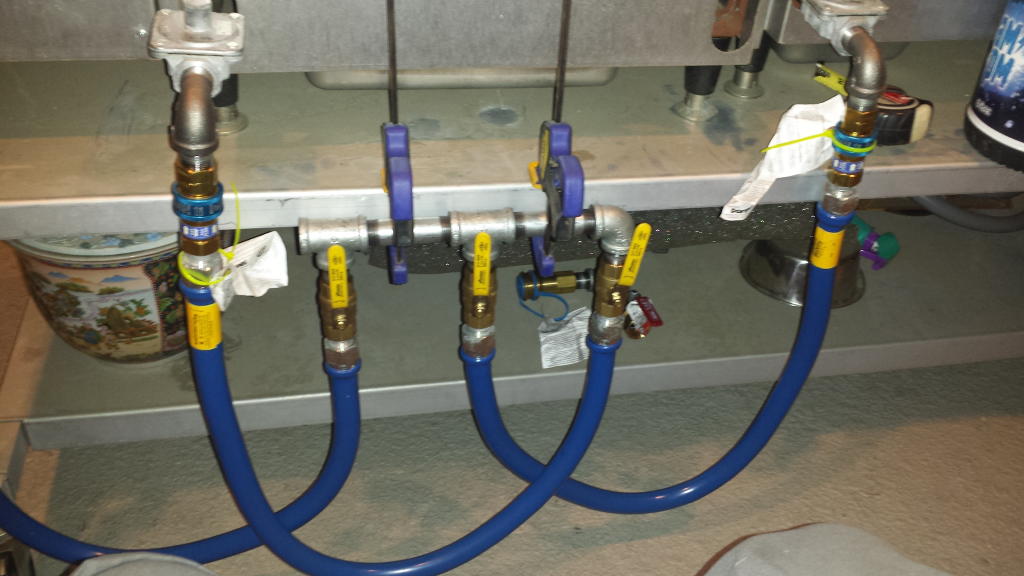

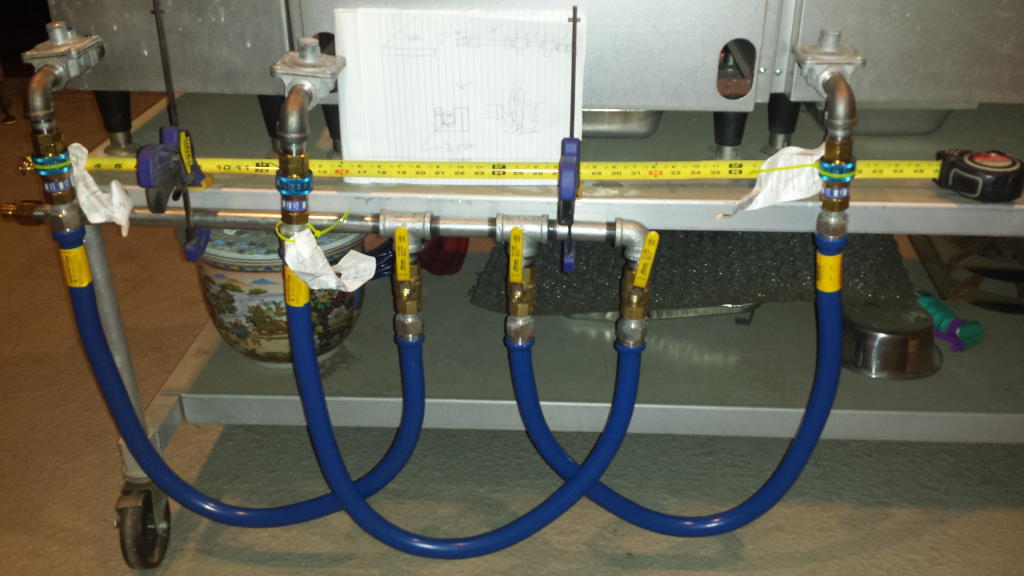

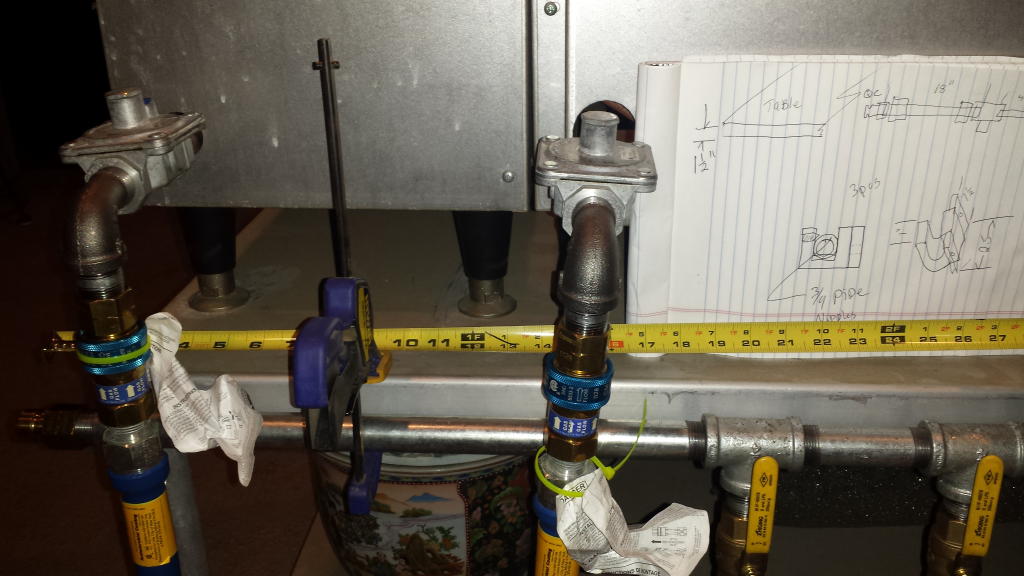

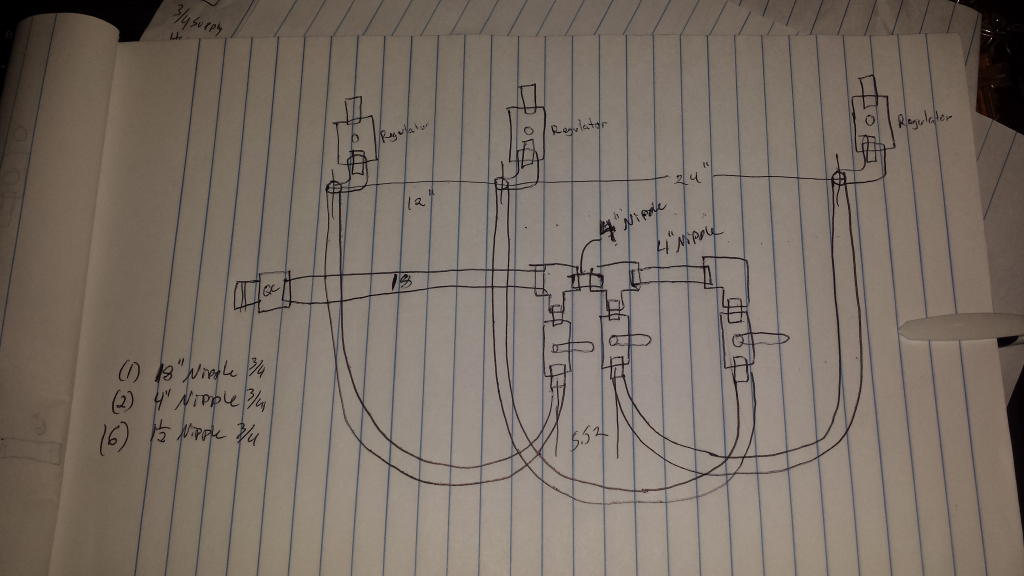

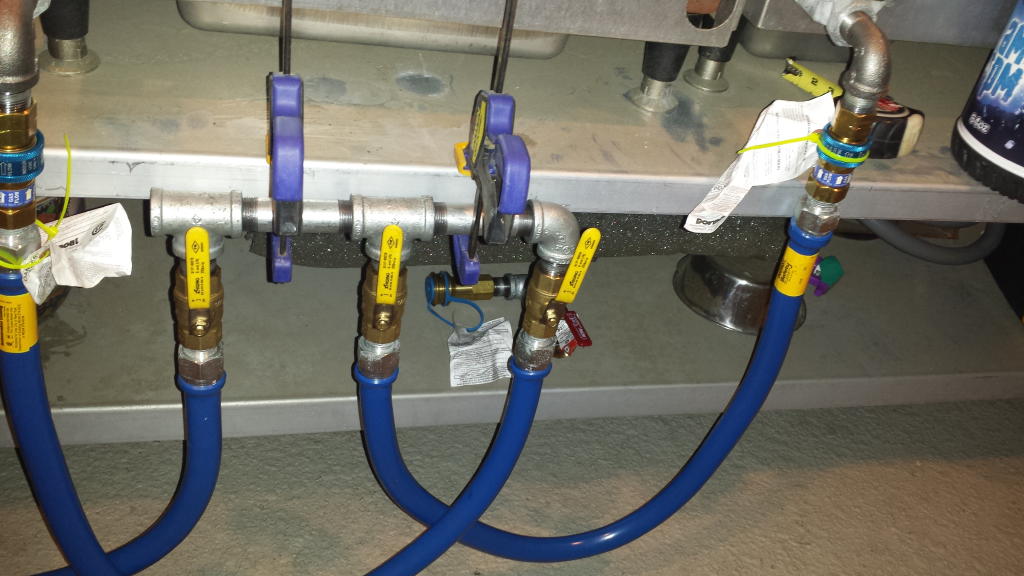

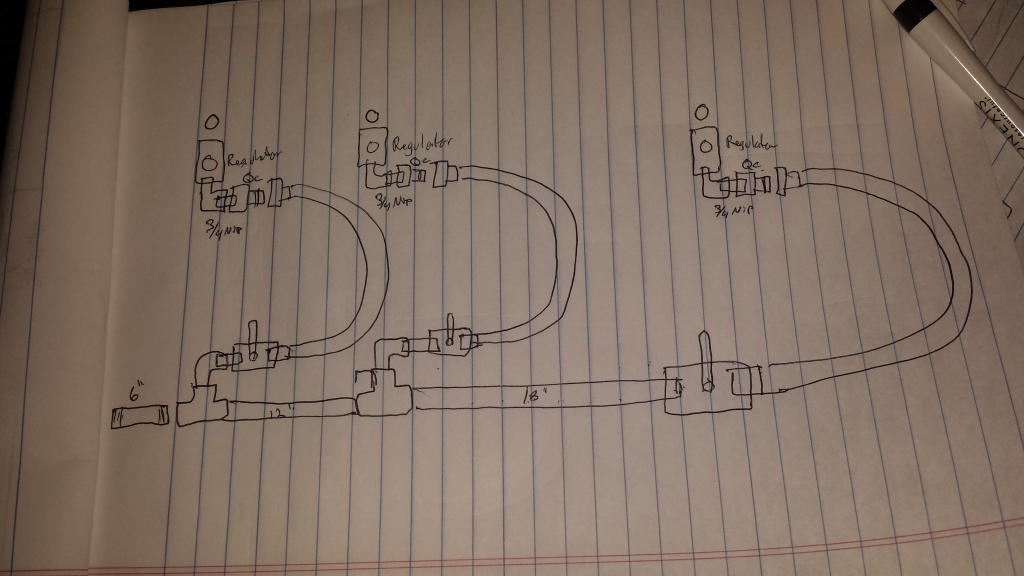

First mockup of the gas supply manifold and hose layout. I used a couple clamps to hold it position for the test fit.

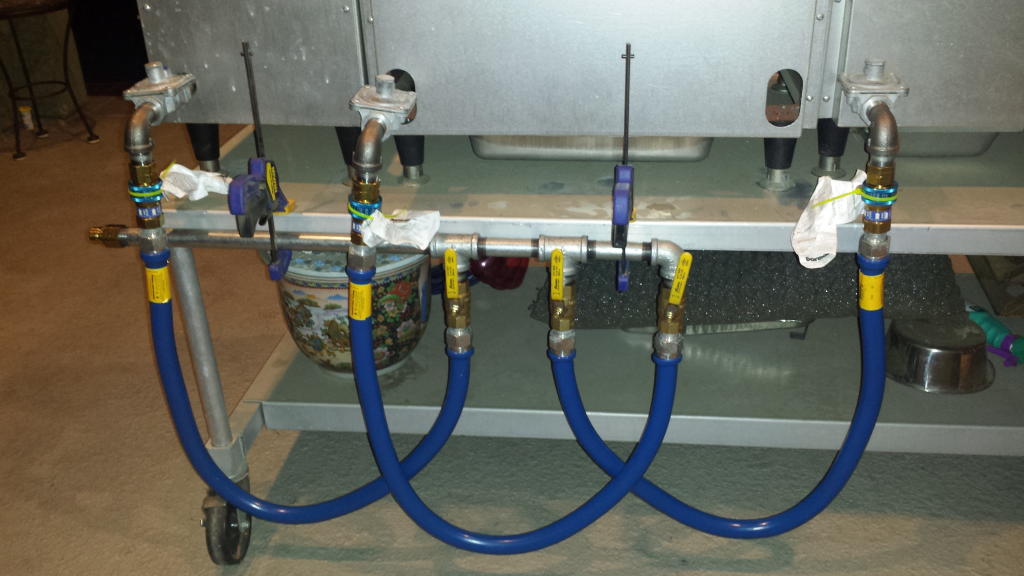

20150824_225103

SAMSUNG-SGH-I337
08/24/15 10:51:03 PM

20150823_144220

SAMSUNG-SGH-I337
08/23/15 2:42:20 PM

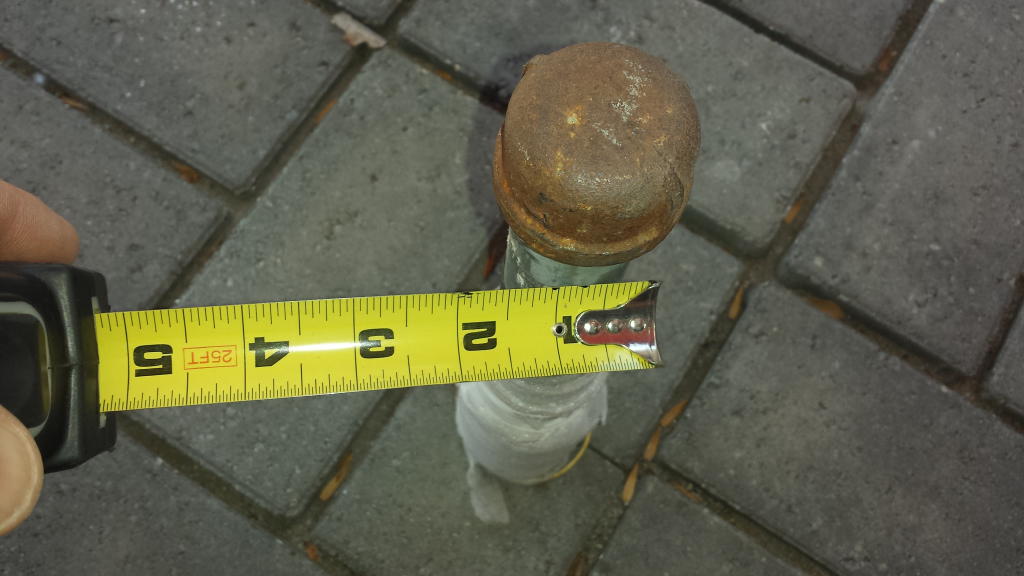

This is the 1” fire pit stub out that I will use temporarily to supply the gas.

20150822_144747

SAMSUNG-SGH-I337
08/22/15 2:47:46 PM

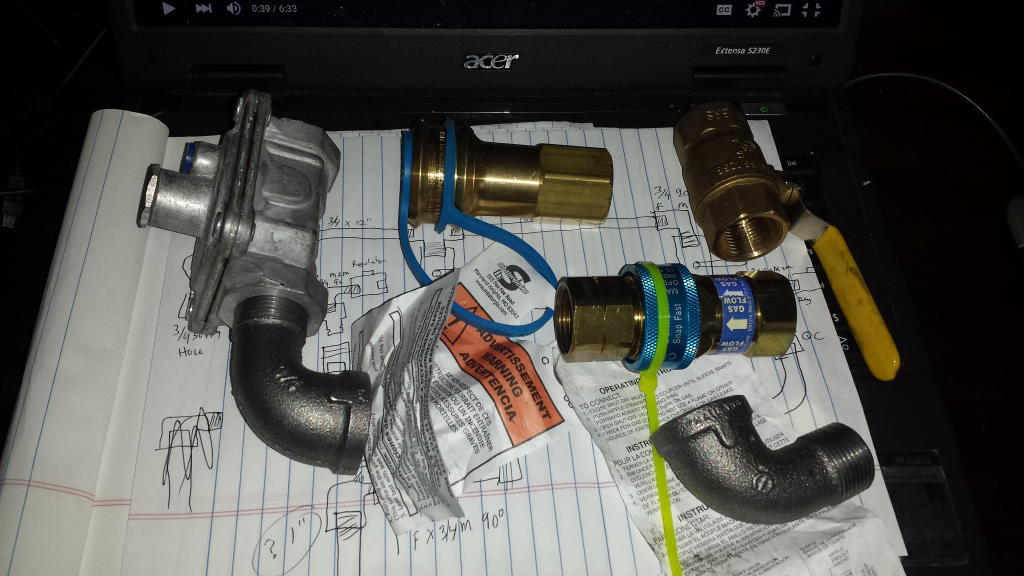

20150823_145612

SAMSUNG-SGH-I337
08/23/15 2:56:11 PM

20150827_074406

SAMSUNG-SGH-I337
08/27/15 7:44:06 AM

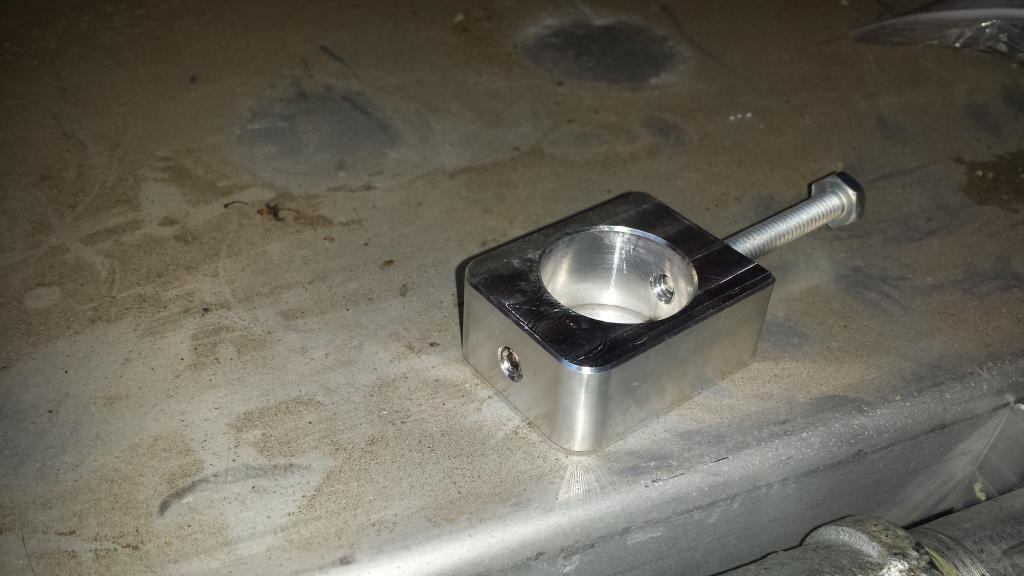

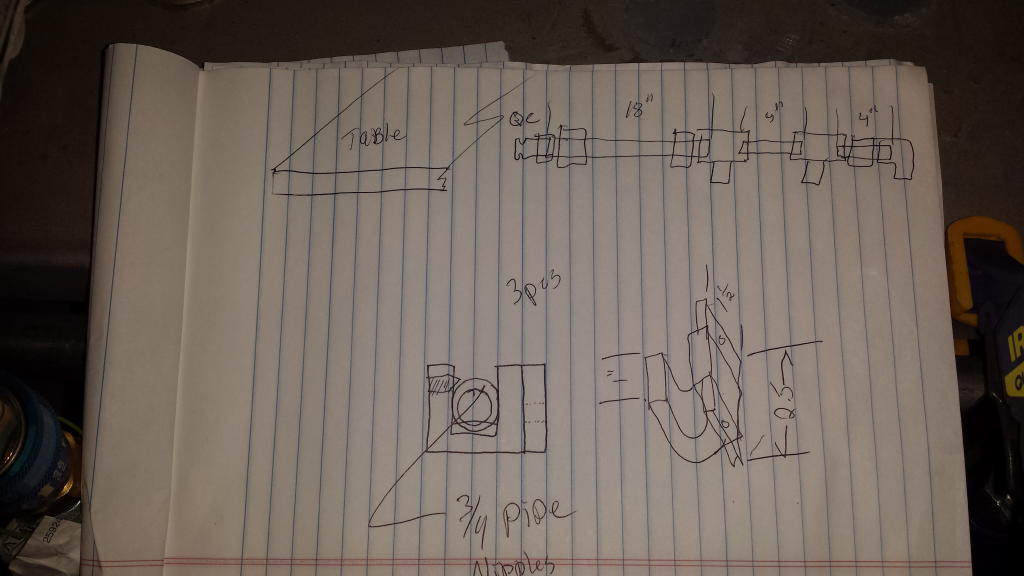

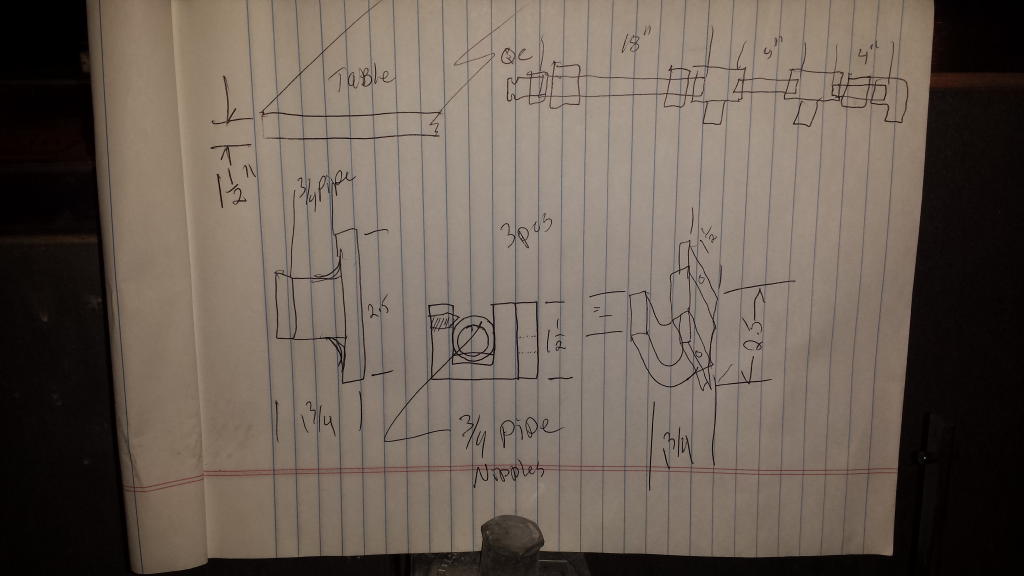

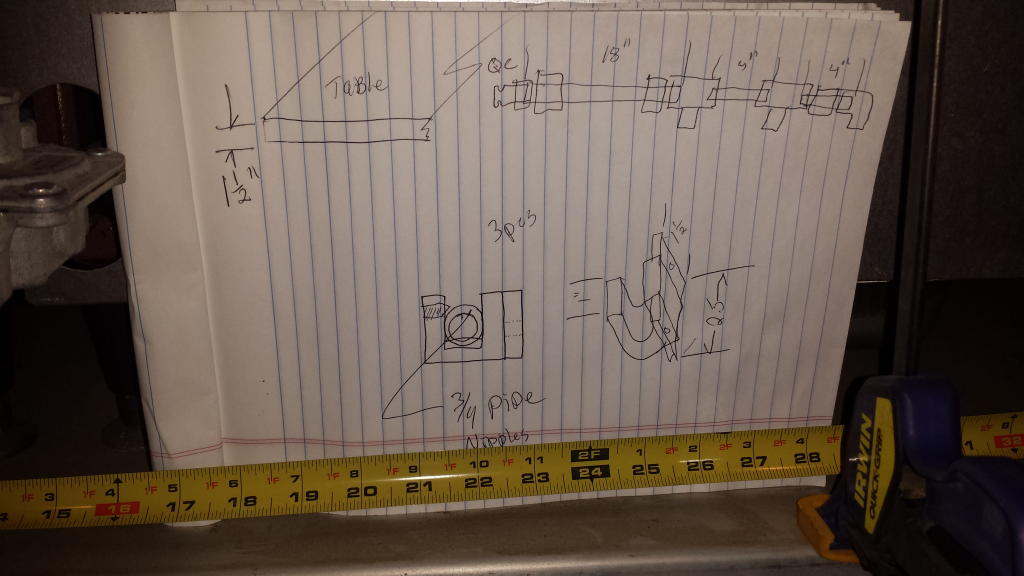

I designed this simple bracket and CNC machined 4 pieces to mount the gas manifold to the rear of the equipment cart.

20150827_074330

SAMSUNG-SGH-I337
08/27/15 7:43:29 AM

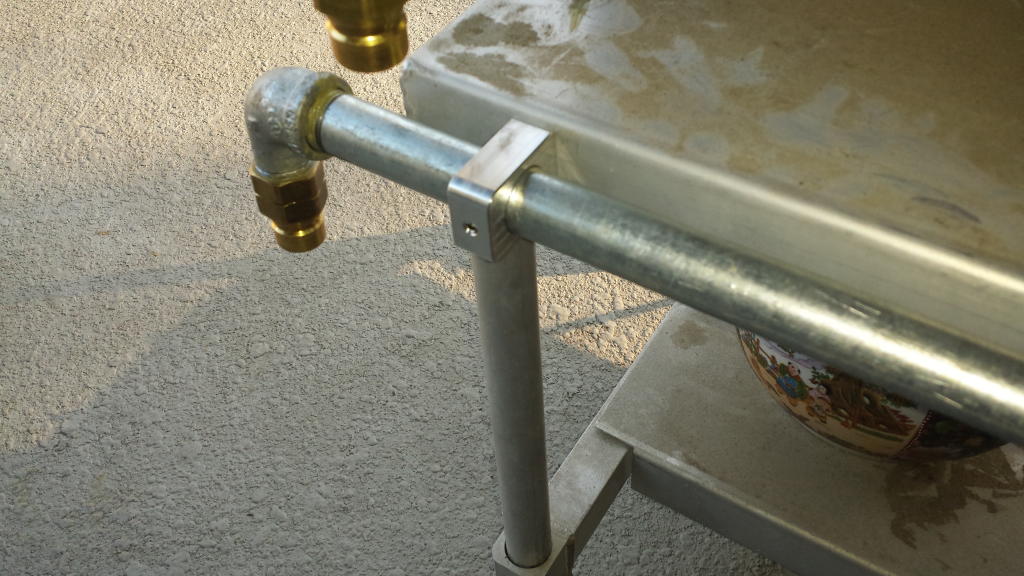

CNC Machined plumbing brackets installed. I used a long

 ¼ -20 bolt with a washer and flanged lock nut to secure the bracket to the table. By tightening the bolt the pipe is locked into the bracket to prevent rotation and the nut is used to tighten the bracket to the table. There is 1 ½” square tubing behind the lip of the table not shown in the photo. There is also a set screw tightened to help prevent rotation of the pipe.

20150827_074326

SAMSUNG-SGH-I337
08/27/15 7:43:26 AM

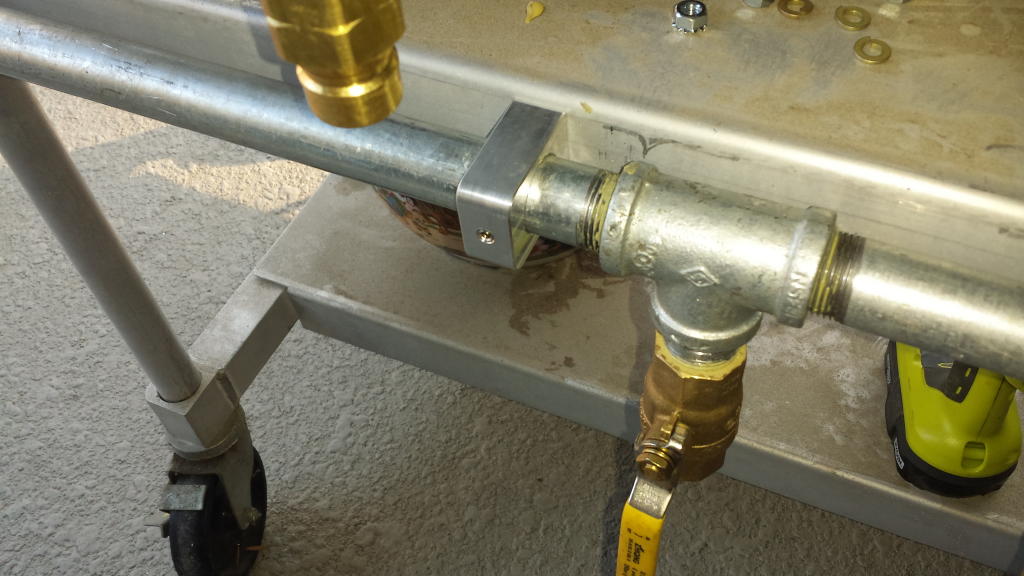

Gas pipe “goop” on all pipe joints to ensure a good seal!

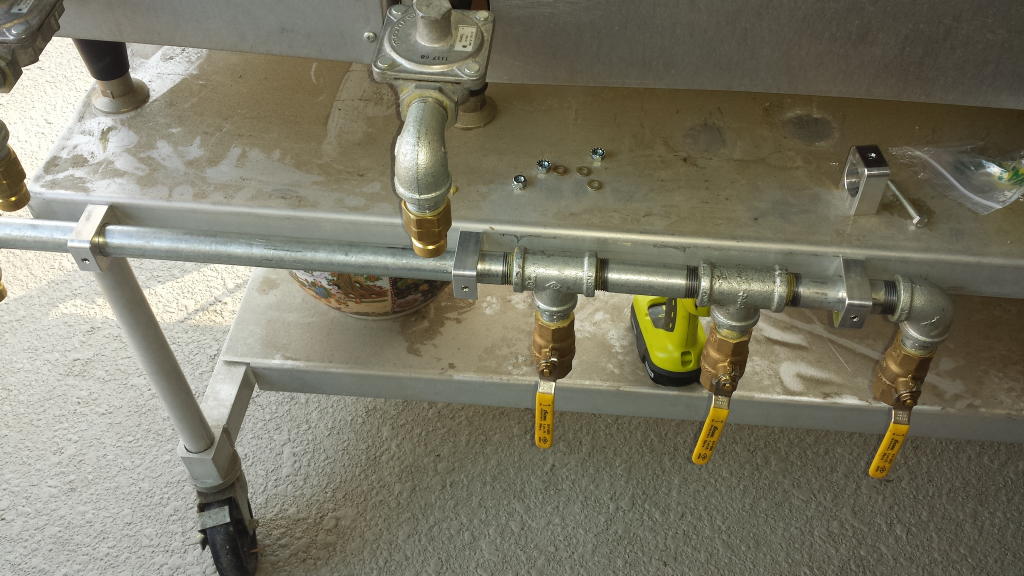

20150827_074318

SAMSUNG-SGH-I337
08/27/15 7:43:18 AM

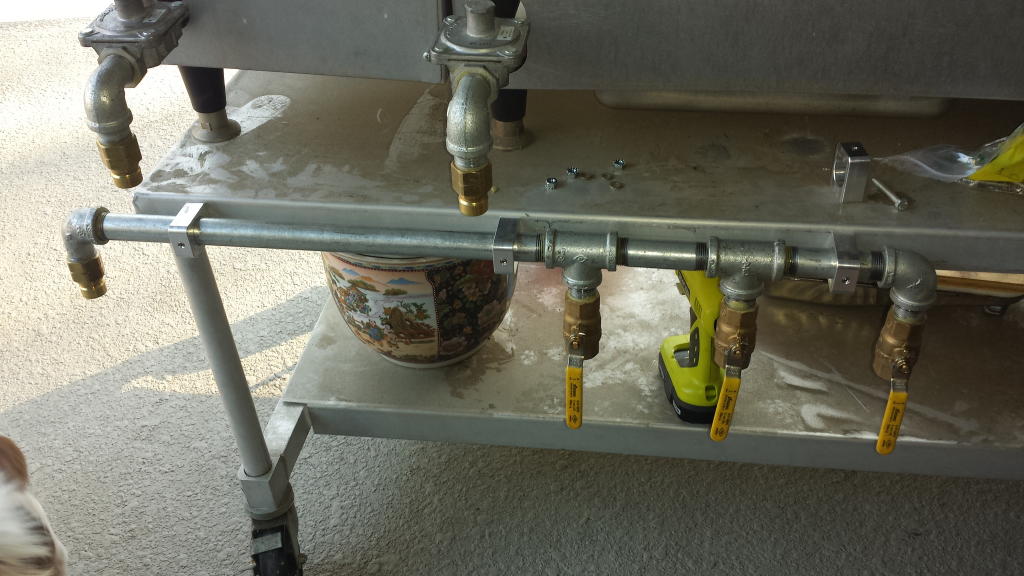

20150827_074313

SAMSUNG-SGH-I337
08/27/15 7:43:13 AM

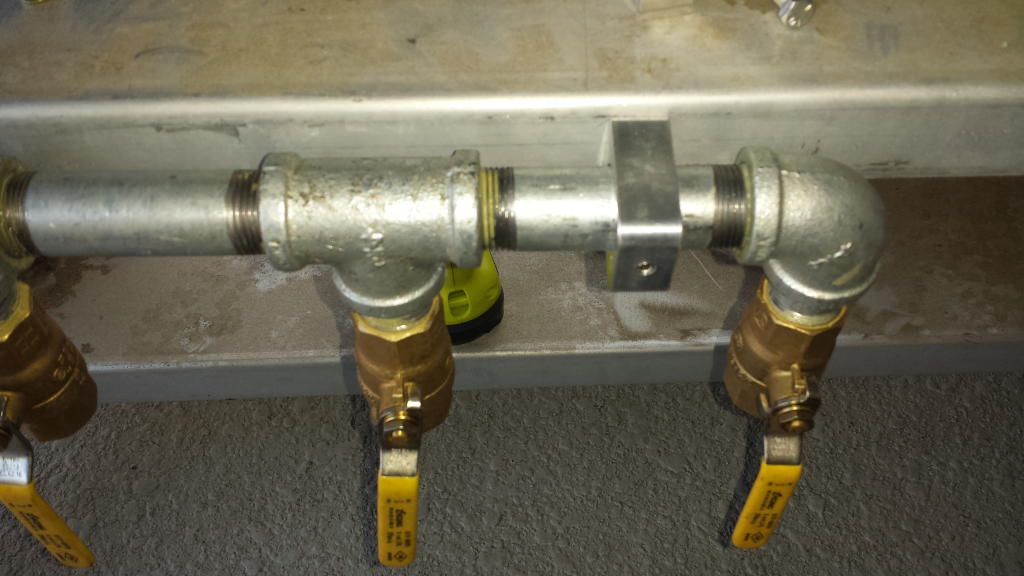

20150827_074322

SAMSUNG-SGH-I337
08/27/15 7:43:22 AM

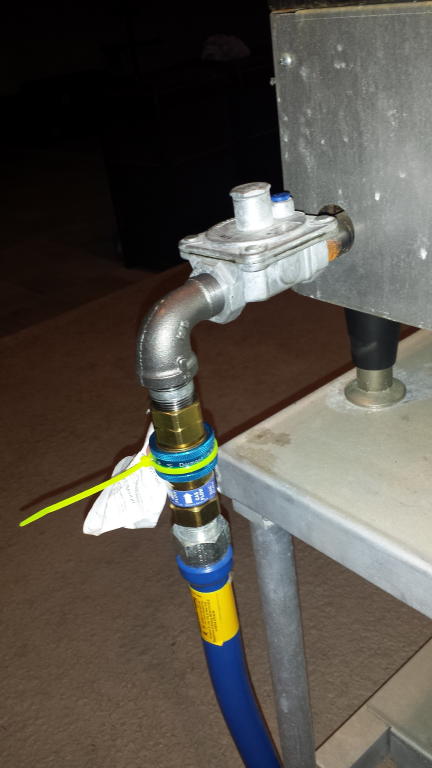

20150824_233513

SAMSUNG-SGH-I337
08/24/15 11:35:13 PM

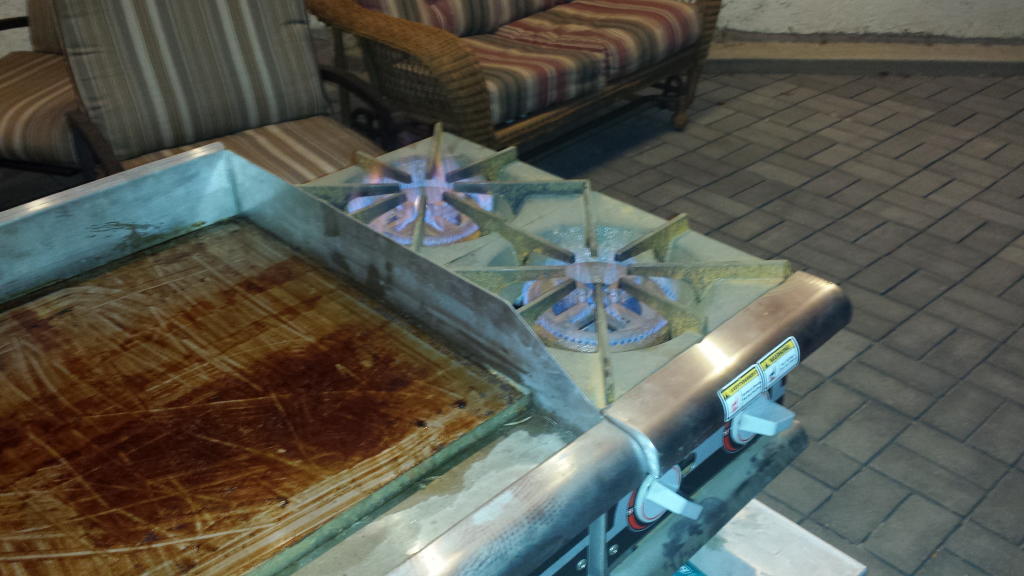

20150828_000316

SAMSUNG-SGH-I337
08/28/15 12:03:16 AM

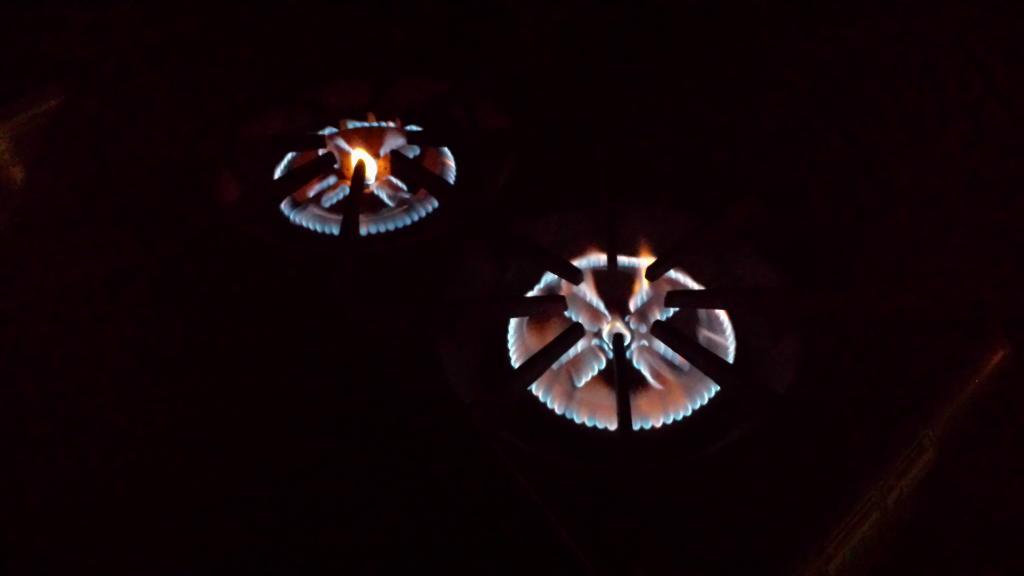

20150828_000521

SAMSUNG-SGH-I337
08/28/15 12:05:21 AM

20150828_000310

SAMSUNG-SGH-I337
08/28/15 12:03:10 AM

20150828_000340

SAMSUNG-SGH-I337
08/28/15 12:03:40 AM

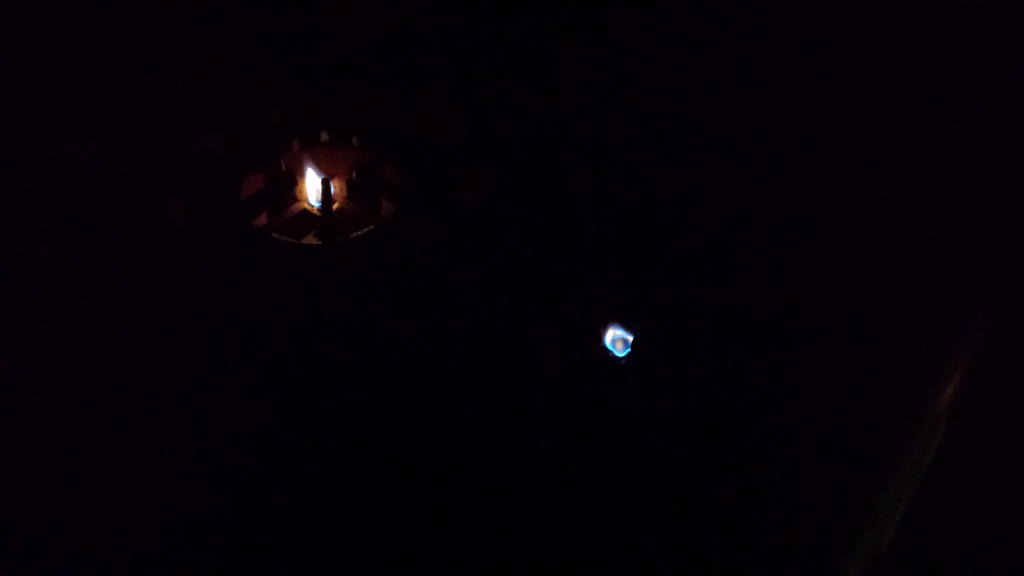

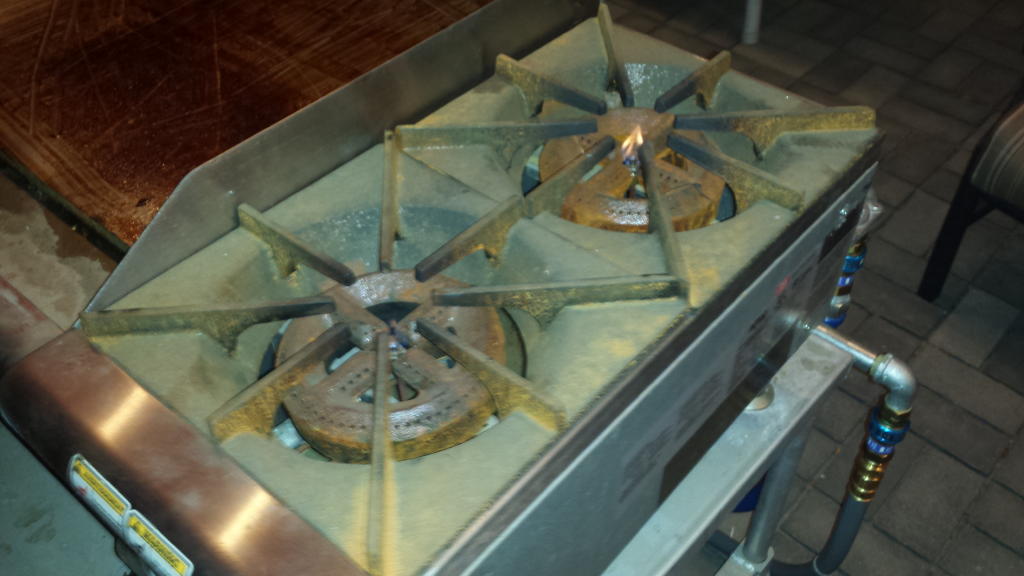

Pilot lights on.

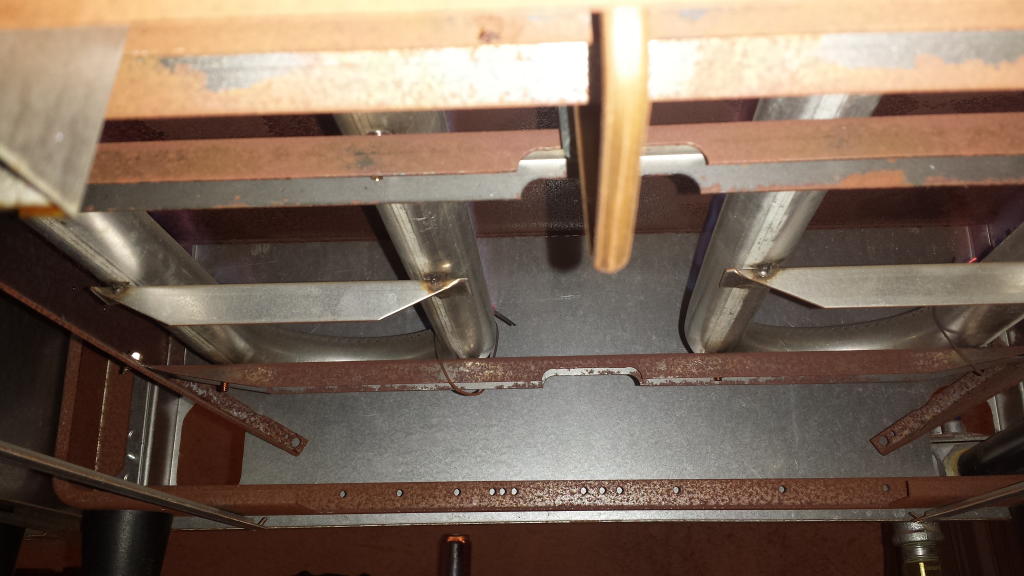

20150828_000354

SAMSUNG-SGH-I337
08/28/15 12:03:54 AM

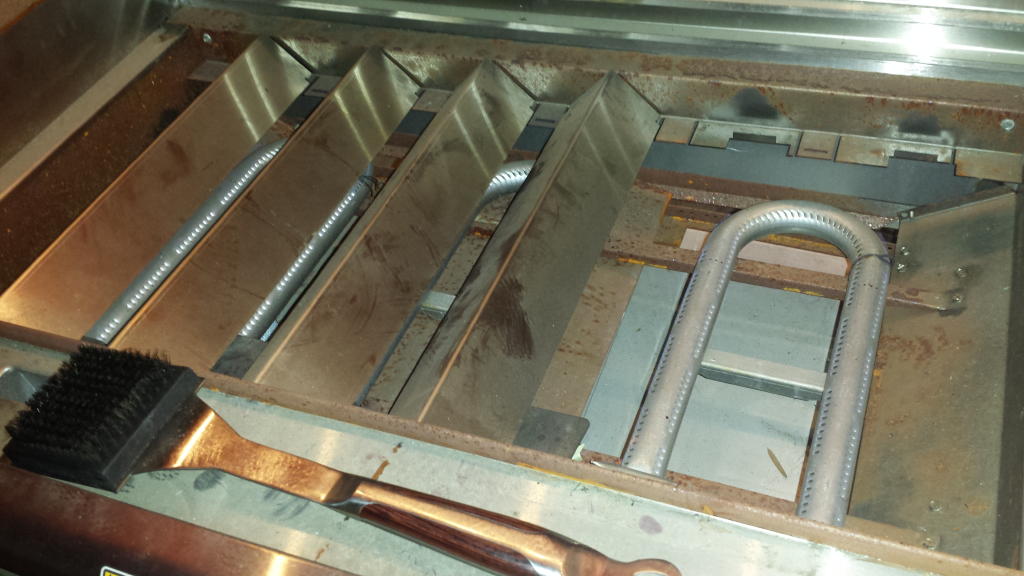

20150828_000412

SAMSUNG-SGH-I337
08/28/15 12:04:11 AM

20150828_000420

SAMSUNG-SGH-I337
08/28/15 12:04:20 AM

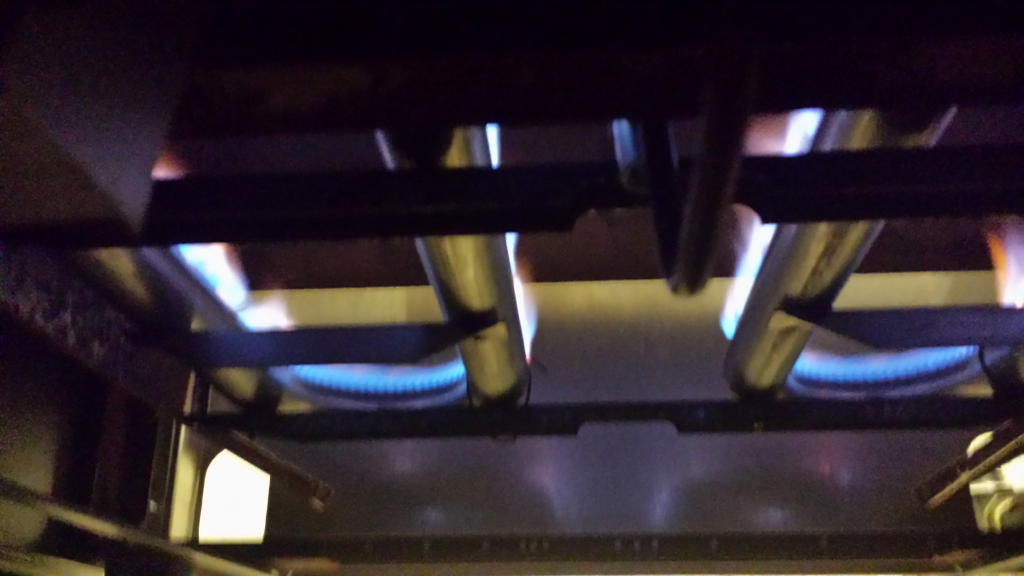

20150828_000427

SAMSUNG-SGH-I337
08/28/15 12:04:25 AM

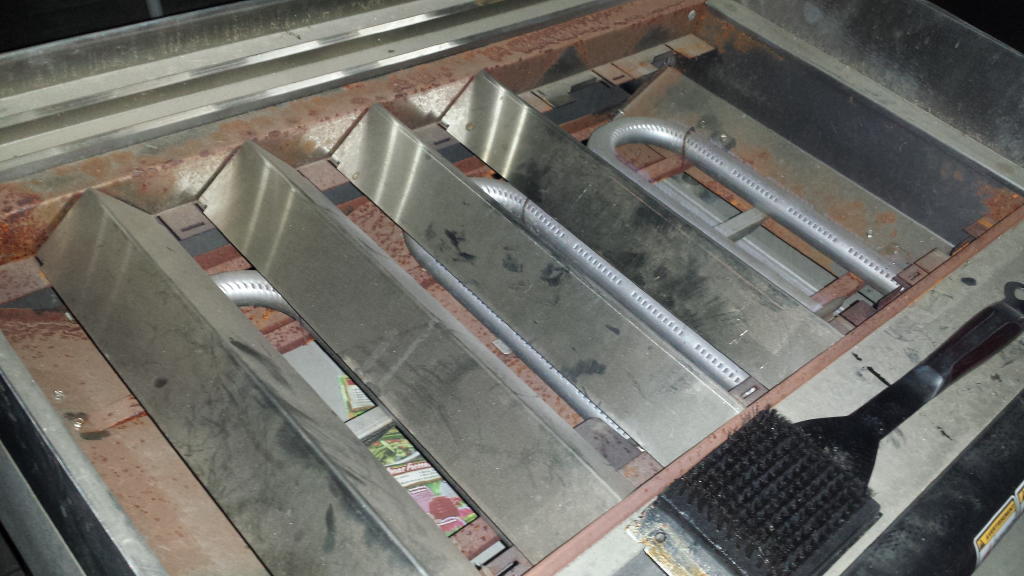

20150828_000451

SAMSUNG-SGH-I337
08/28/15 12:04:50 AM

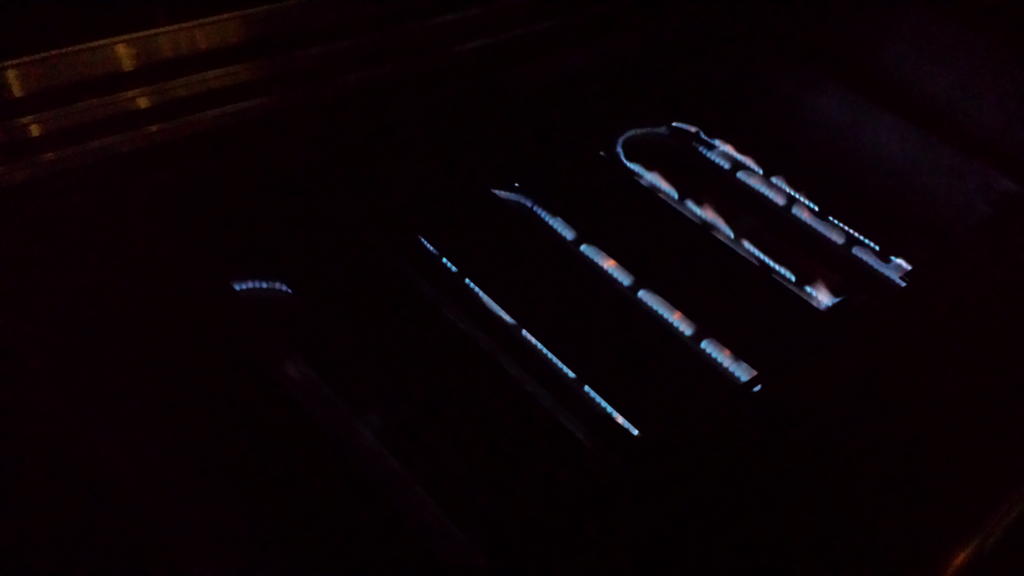

20150828_000458

SAMSUNG-SGH-I337
08/28/15 12:04:57 AM

20150828_000505

SAMSUNG-SGH-I337
08/28/15 12:05:04 AM

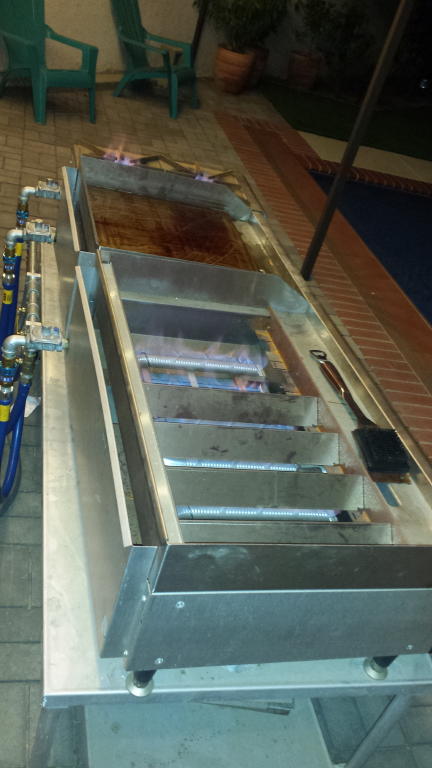

20150828_000301

SAMSUNG-SGH-I337
08/28/15 12:03:00 AM

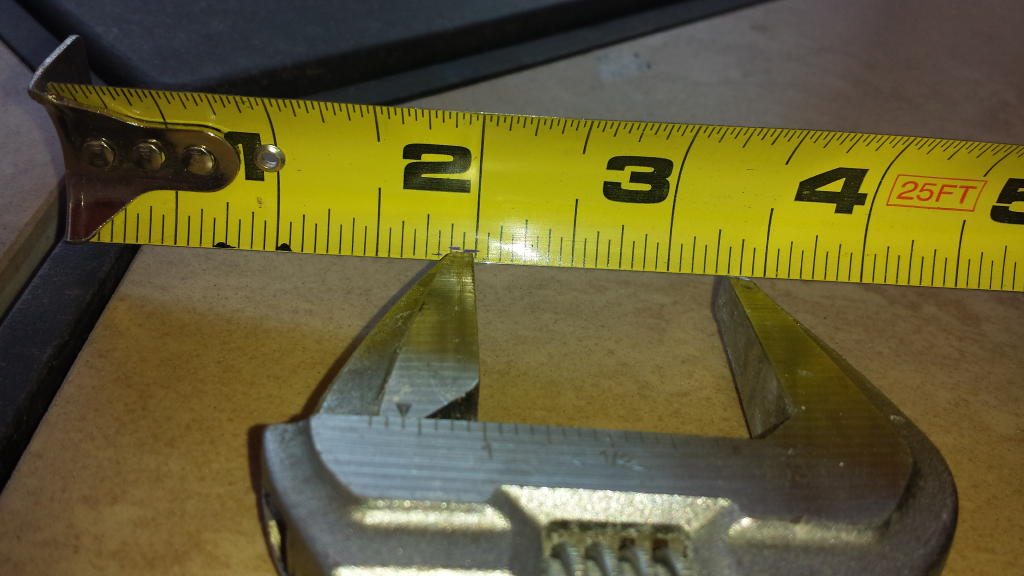

20150823_144154

SAMSUNG-SGH-I337
08/23/15 2:41:54 PM

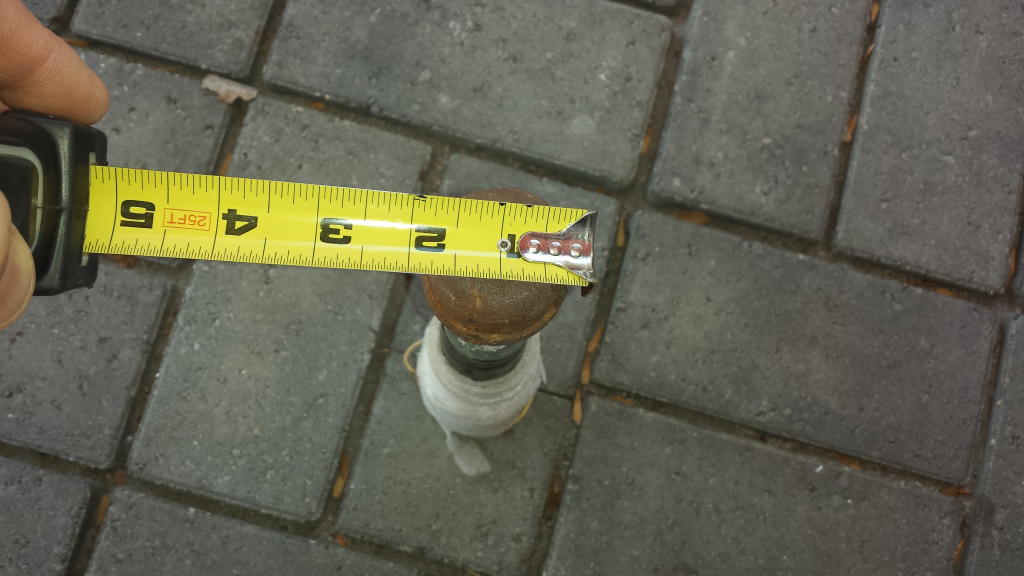

20150823_144258

SAMSUNG-SGH-I337
08/23/15 2:42:58 PM

20150824_230448

SAMSUNG-SGH-I337
08/24/15 11:04:47 PM

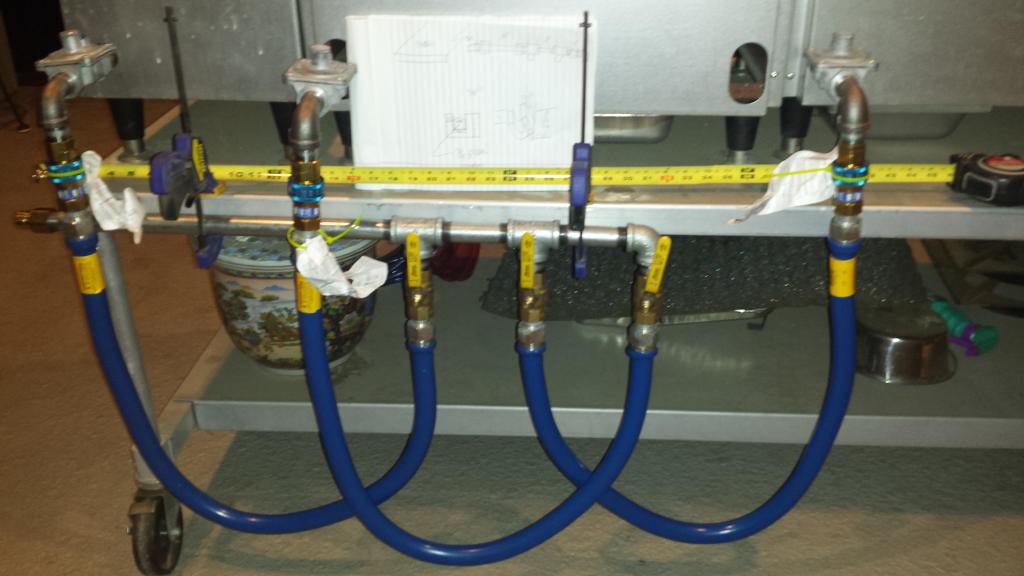

20150824_230453

SAMSUNG-SGH-I337
08/24/15 11:04:51 PM

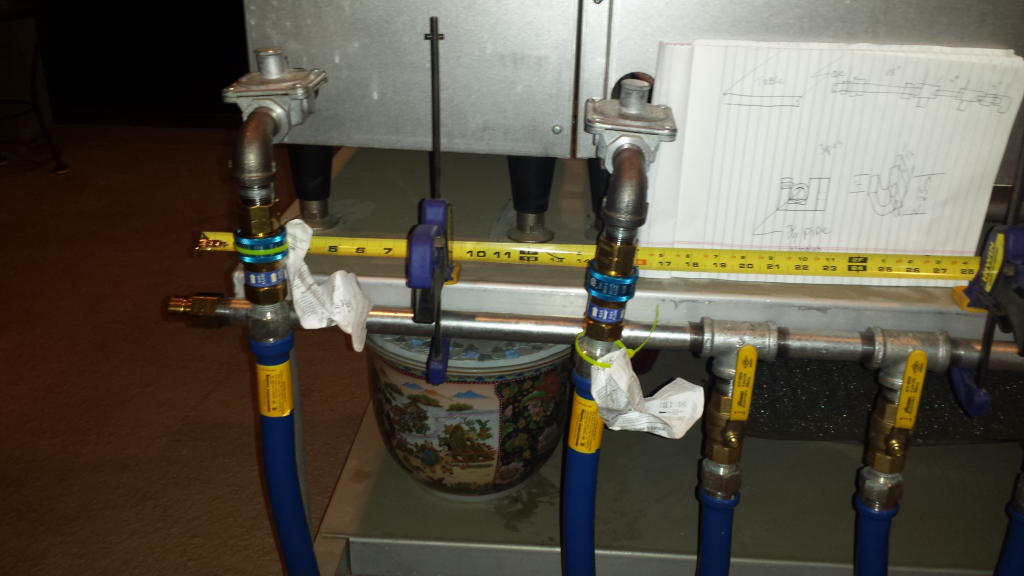

20150824_230458

SAMSUNG-SGH-I337
08/24/15 11:04:57 PM

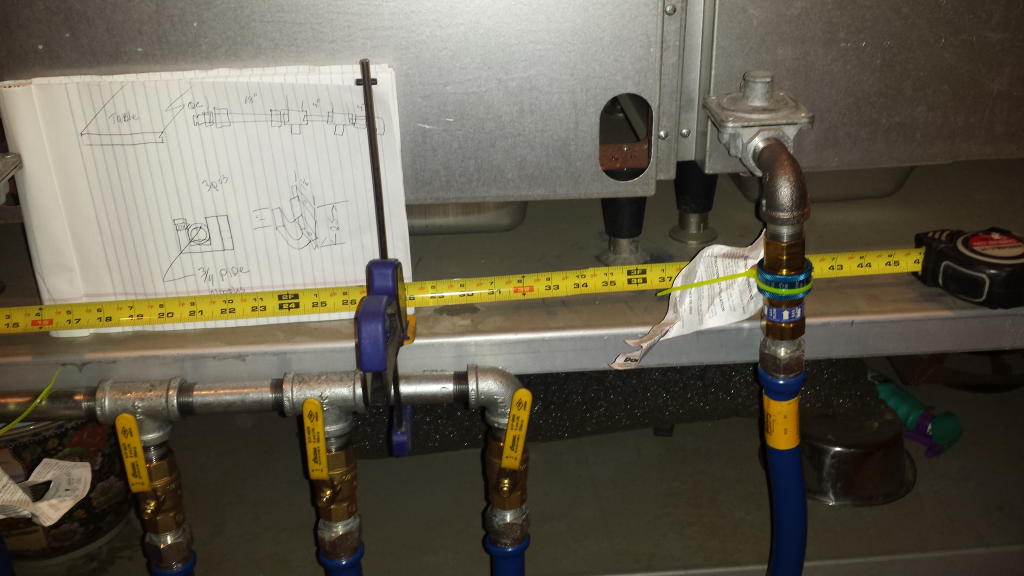

20150824_230506

SAMSUNG-SGH-I337
08/24/15 11:05:06 PM

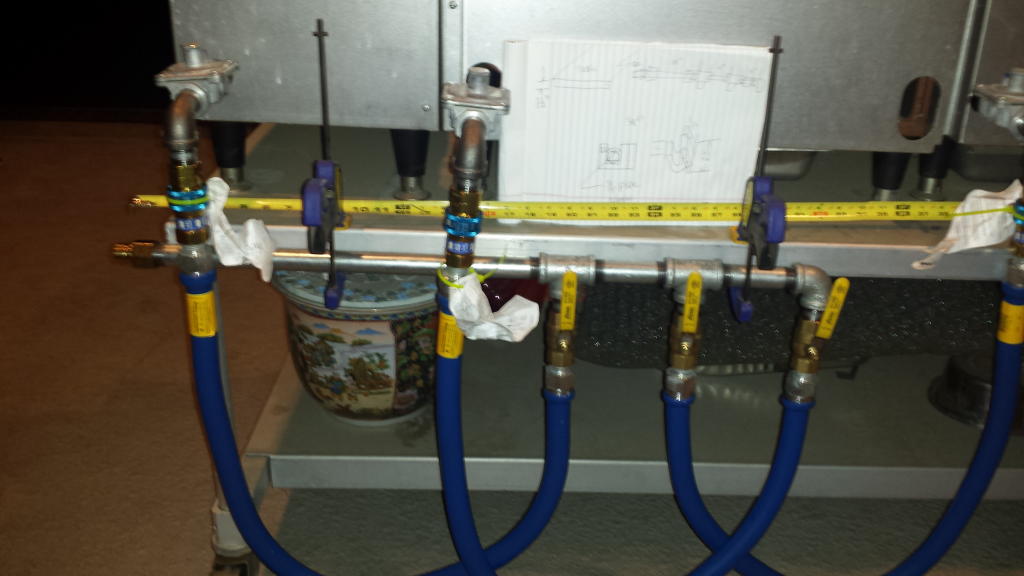

20150824_230706

SAMSUNG-SGH-I337
08/24/15 11:07:06 PM

20150824_230713

SAMSUNG-SGH-I337
08/24/15 11:07:13 PM

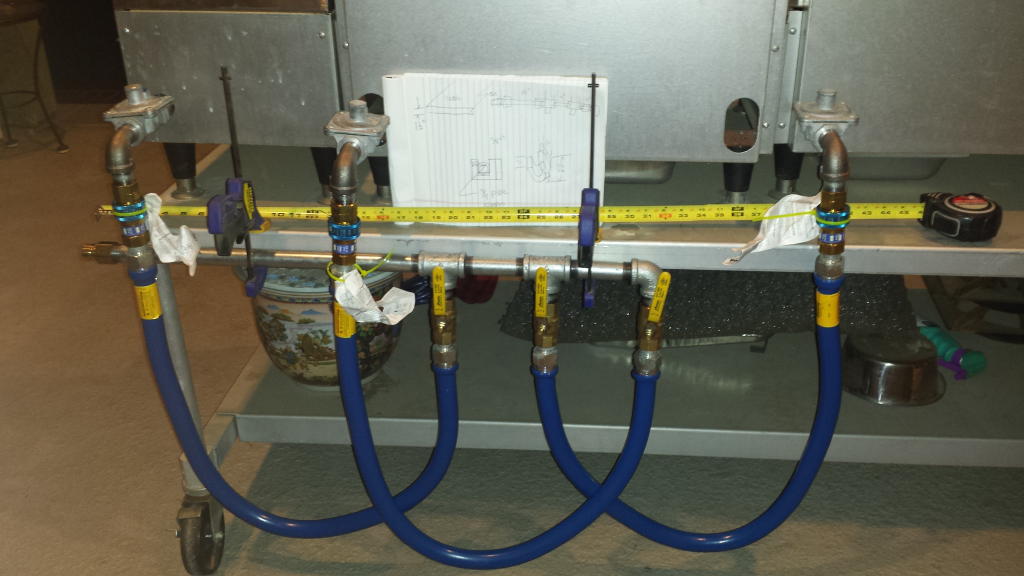

20150824_230718

SAMSUNG-SGH-I337
08/24/15 11:07:18 PM

20150824_233403

SAMSUNG-SGH-I337
08/24/15 11:34:03 PM

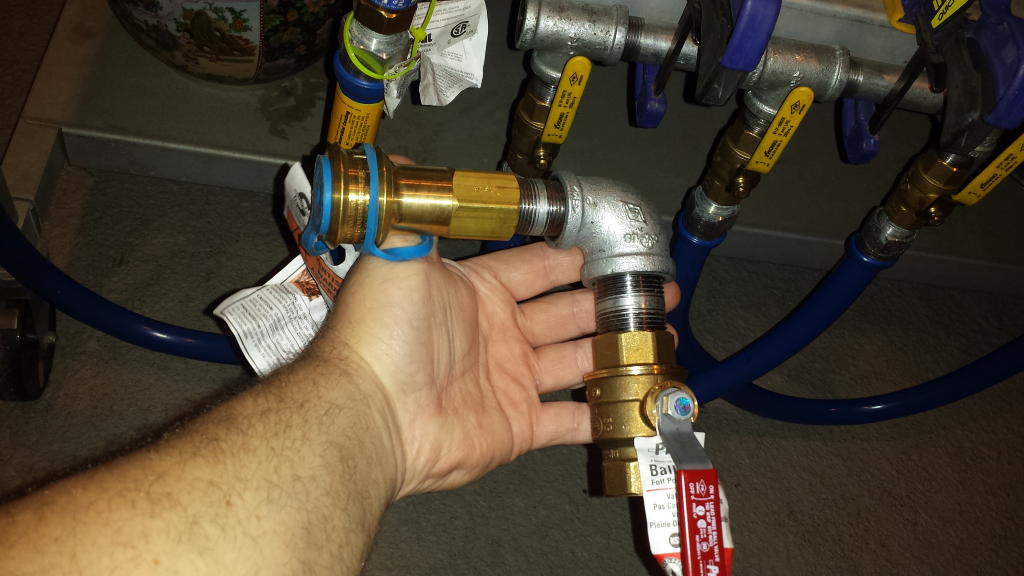

1” supply line ball valve and s/4” quick connect from Tejas Smokers

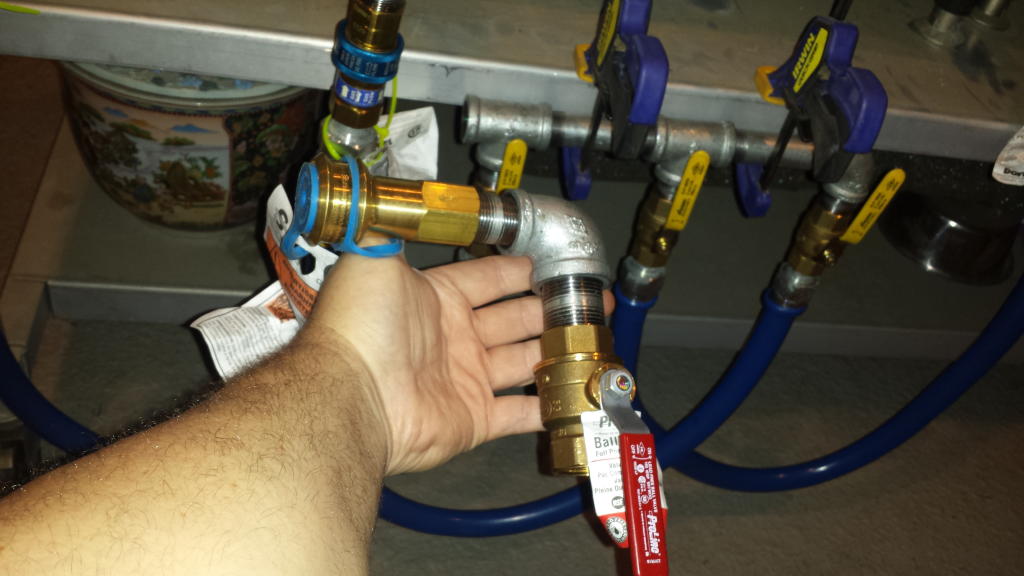

20150824_233409

SAMSUNG-SGH-I337
08/24/15 11:34:08 PM

20150824_233520

SAMSUNG-SGH-I337
08/24/15 11:35:19 PM

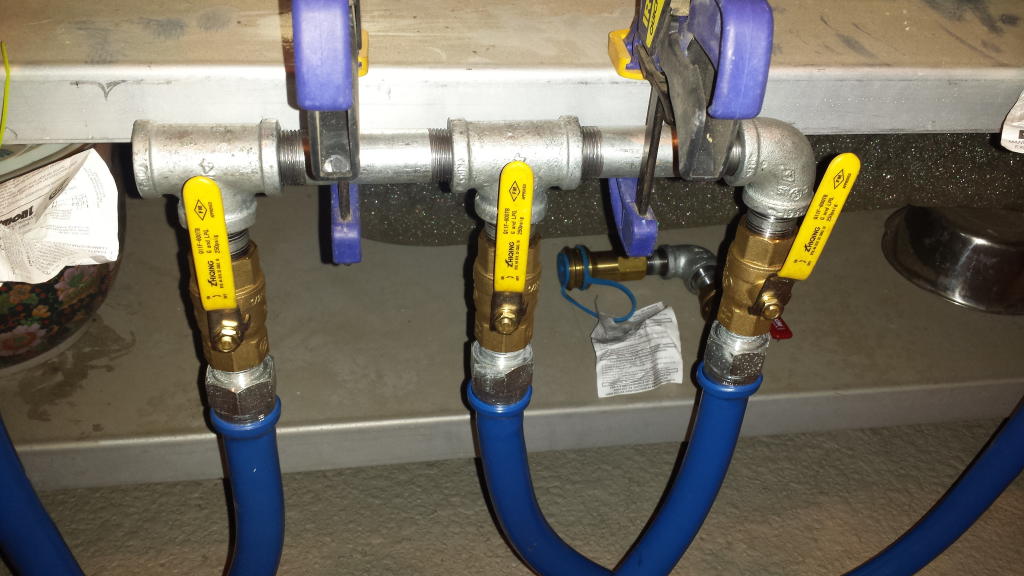

20150824_233528

SAMSUNG-SGH-I337
08/24/15 11:35:28 PM

20150824_233533

SAMSUNG-SGH-I337
08/24/15 11:35:33 PM

20150824_233539

SAMSUNG-SGH-I337
08/24/15 11:35:38 PM

20150824_230726

SAMSUNG-SGH-I337
08/24/15 11:07:25 PM

20150824_230737

SAMSUNG-SGH-I337
08/24/15 11:07:36 PM

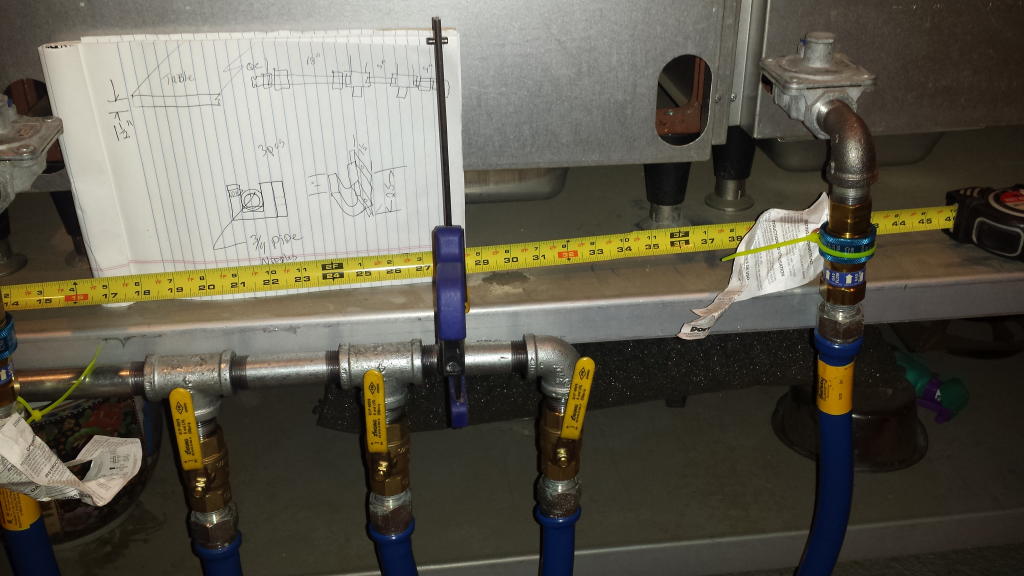

20150824_230744

SAMSUNG-SGH-I337
08/24/15 11:07:44 PM

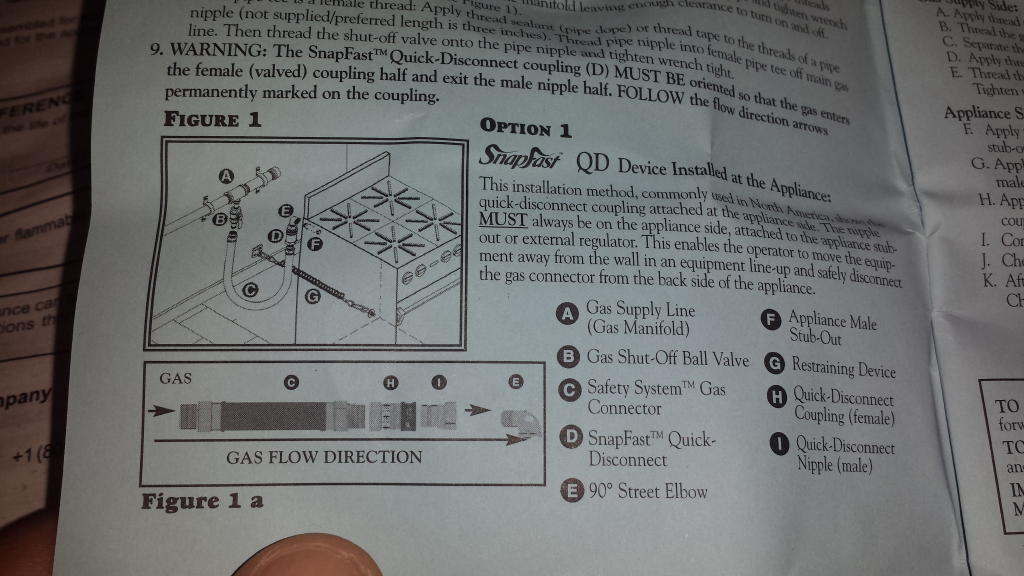

20150822_144750

SAMSUNG-SGH-I337
08/22/15 2:47:49 PM

20150824_231415

SAMSUNG-SGH-I337
08/24/15 11:14:15 PM

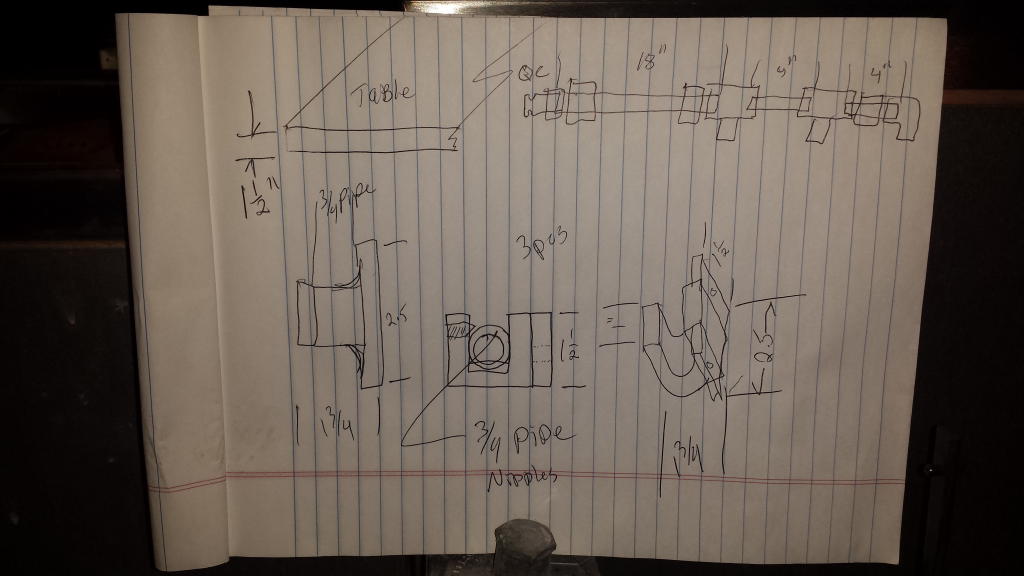

20150824_231420

SAMSUNG-SGH-I337
08/24/15 11:14:19 PM

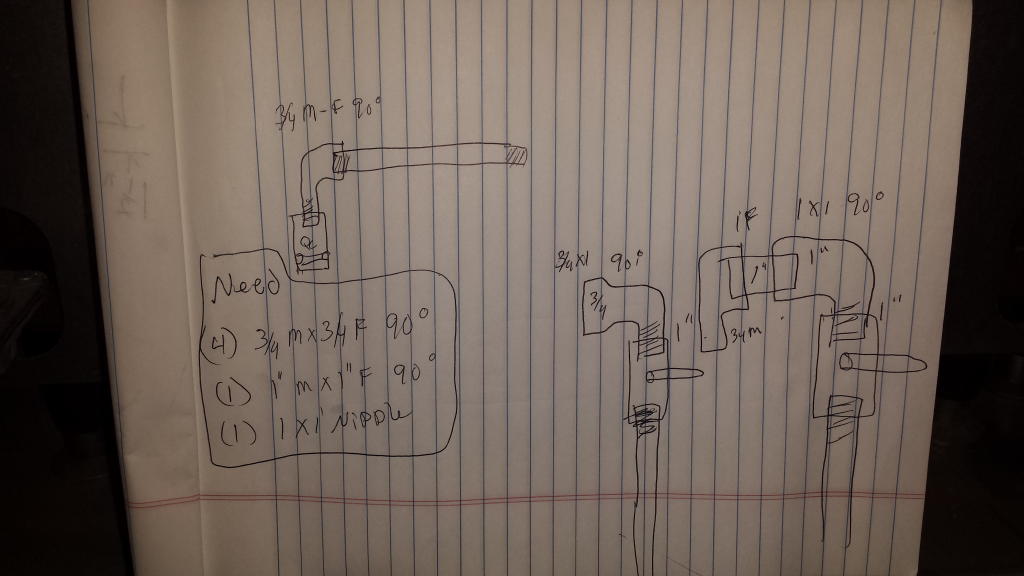

20150824_233300

SAMSUNG-SGH-I337
08/24/15 11:32:59 PM

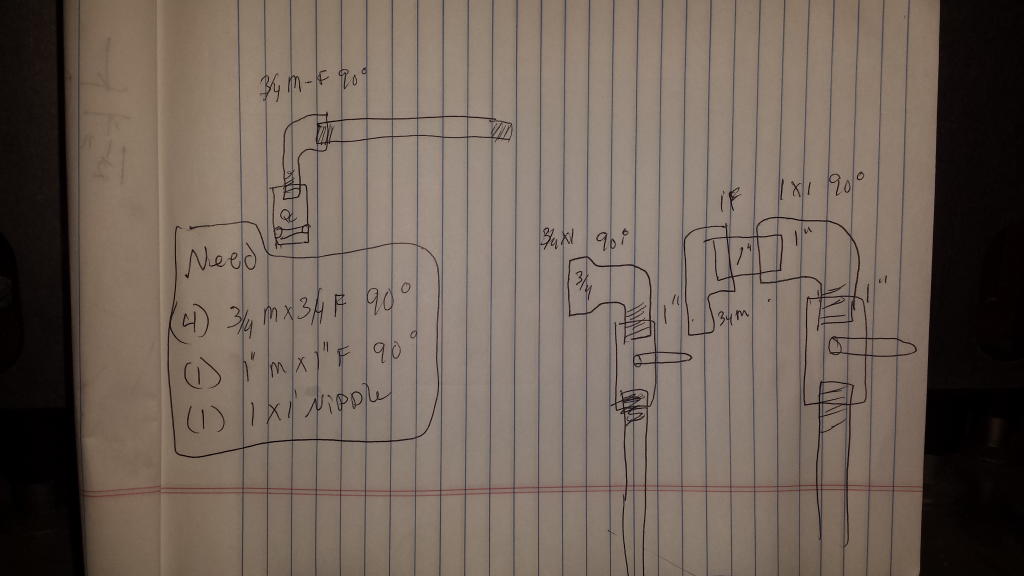

20150824_233304

SAMSUNG-SGH-I337
08/24/15 11:33:04 PM

20150824_001222

SAMSUNG-SGH-I337
08/24/15 12:12:22 AM

20150824_005124

SAMSUNG-SGH-I337
08/24/15 12:51:24 AM

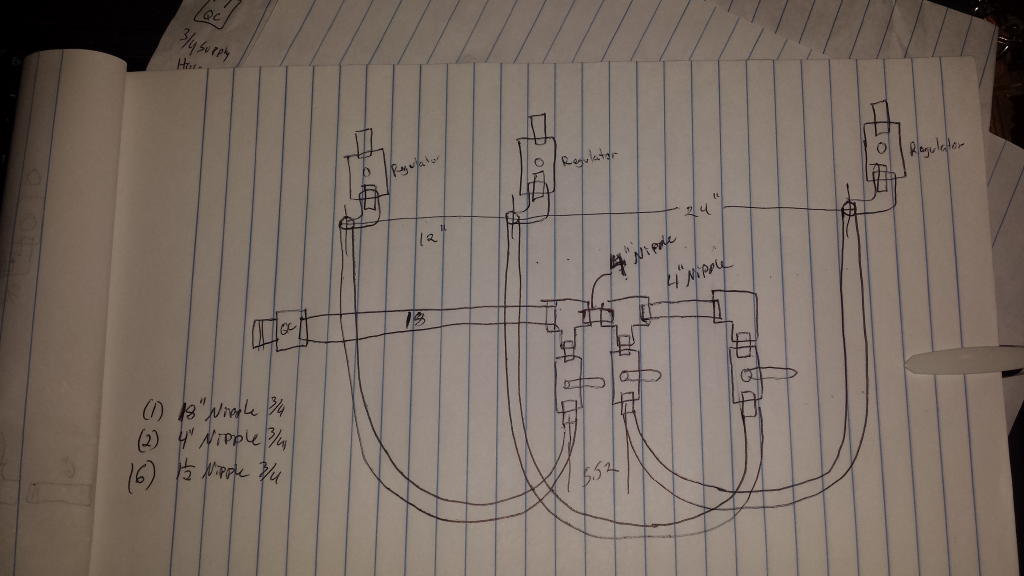

20150824_005129

SAMSUNG-SGH-I337
08/24/15 12:51:28 AM

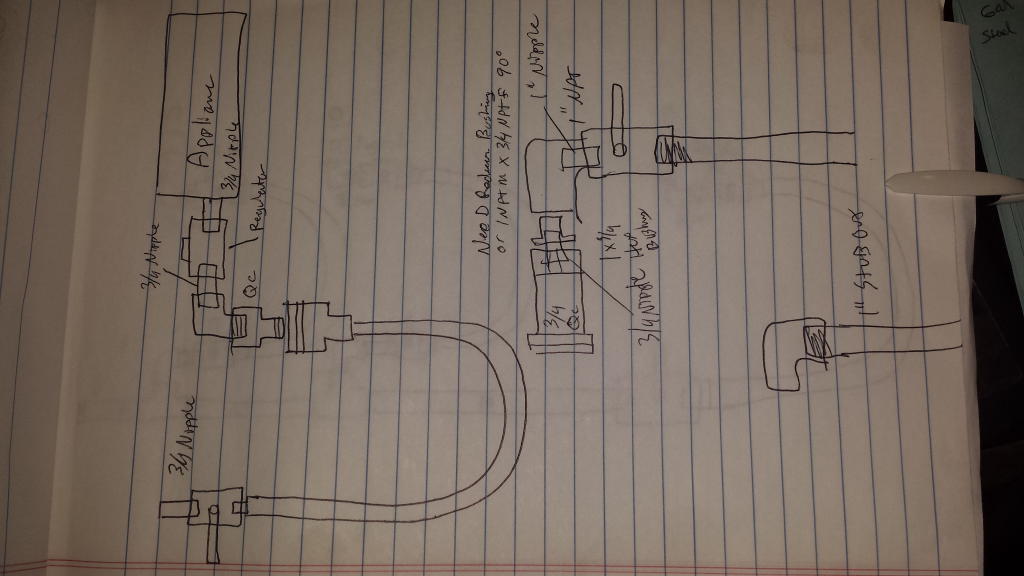

20150824_021426

SAMSUNG-SGH-I337
08/24/15 2:14:25 AM

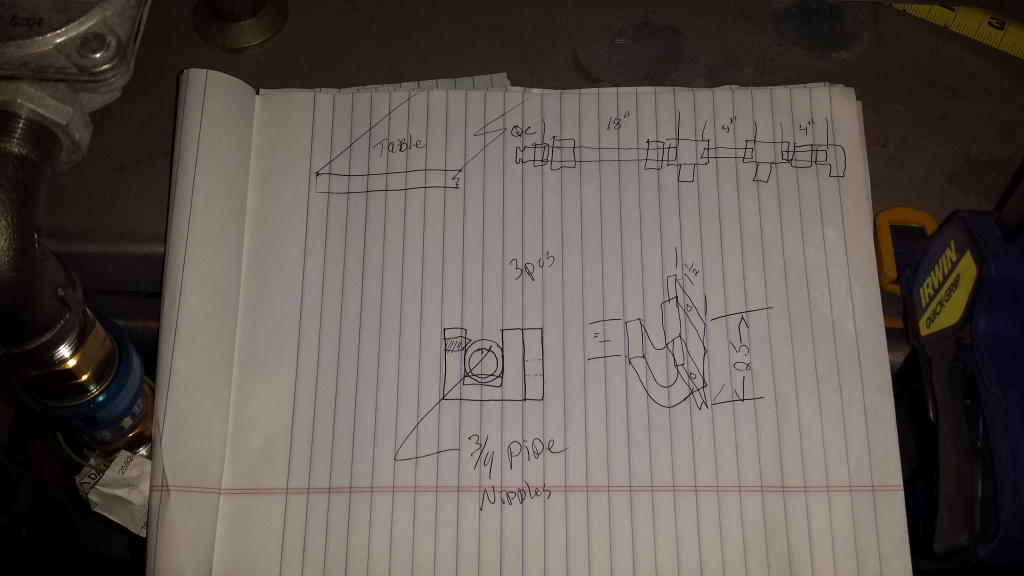

20150824_230347

SAMSUNG-SGH-I337
08/24/15 11:03:46 PM

20150824_230351

SAMSUNG-SGH-I337
08/24/15 11:03:50 PM

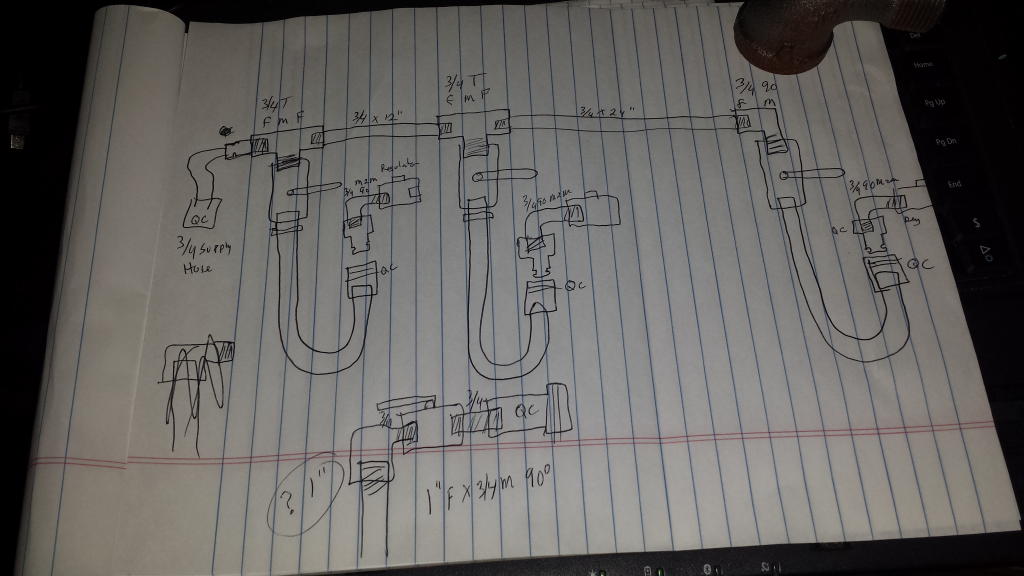

20150823_145639

SAMSUNG-SGH-I337
08/23/15 2:56:38 PM

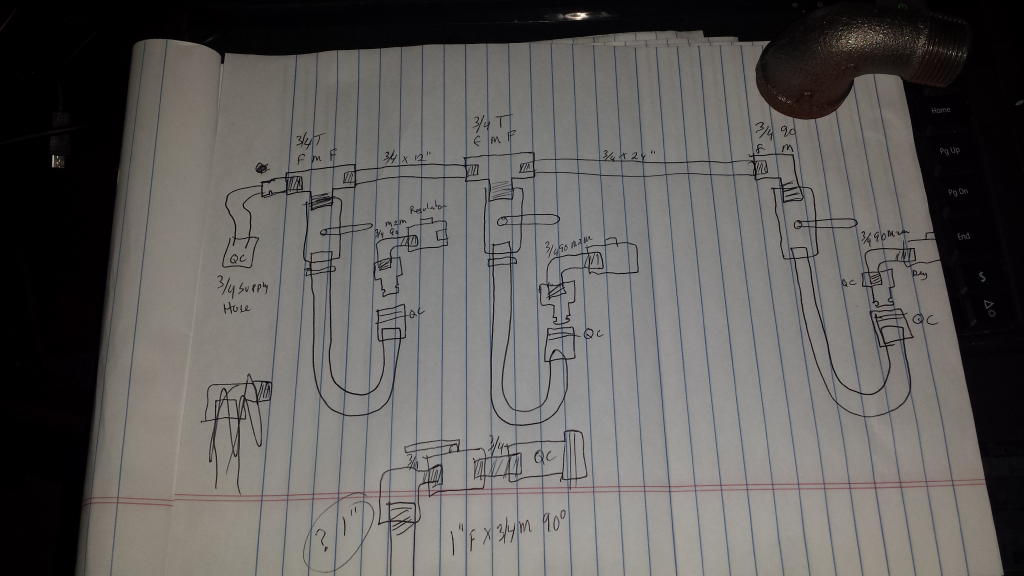

20150823_145642

SAMSUNG-SGH-I337
08/23/15 2:56:42 PM

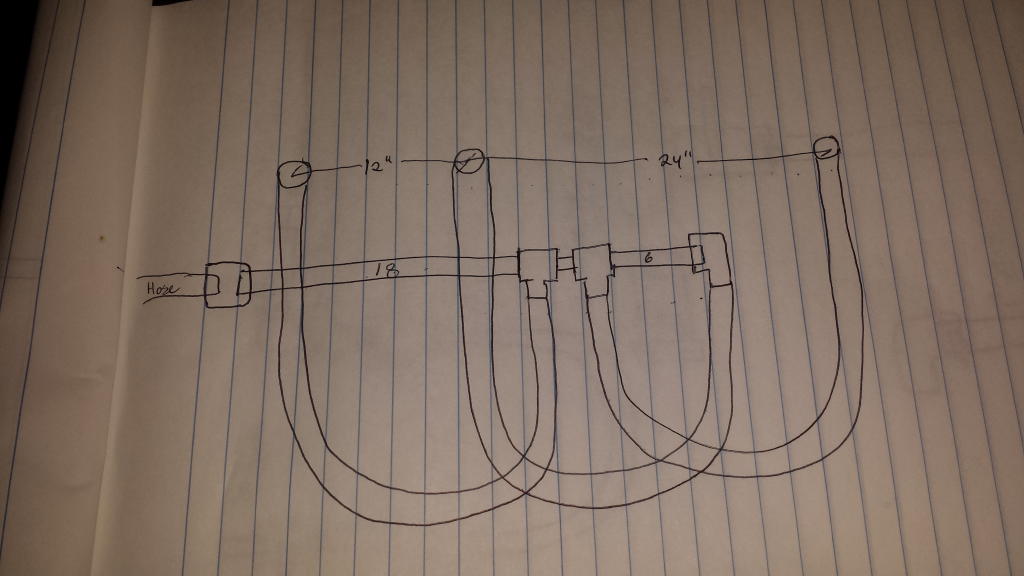

20150823_233841

SAMSUNG-SGH-I337
08/23/15 11:38:40 PM

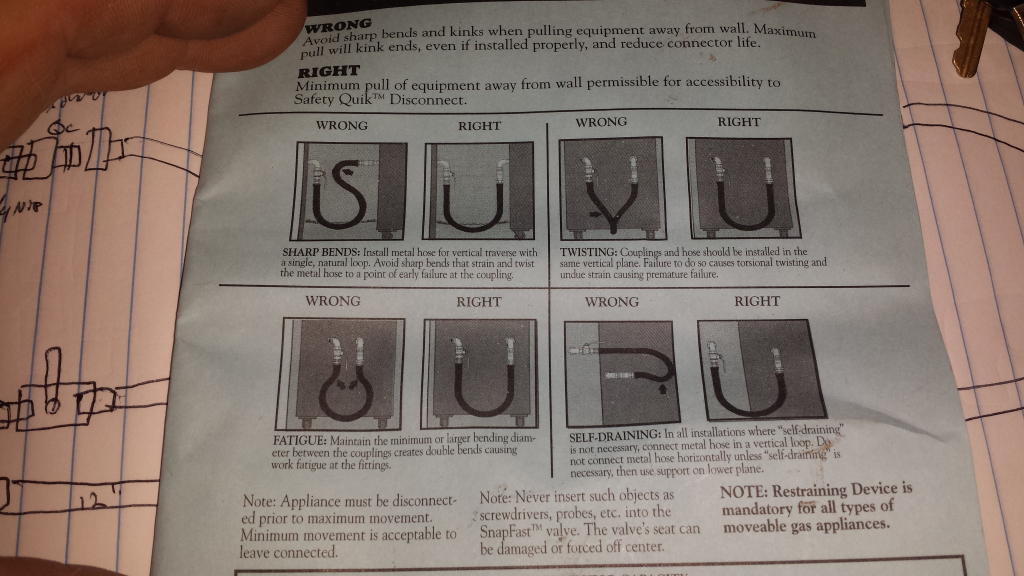

20150824_000858

SAMSUNG-SGH-I337
08/24/15 12:08:58 AM
