These pictures are from a part that I cut for Sensormatic Inc. they supplied the Solid Models and the G-Code, which were produced using Pro Engineer and Pro Manufacture. I cut the parts using one of my converted Sherline 5400 Mills and Ahha Artisan.

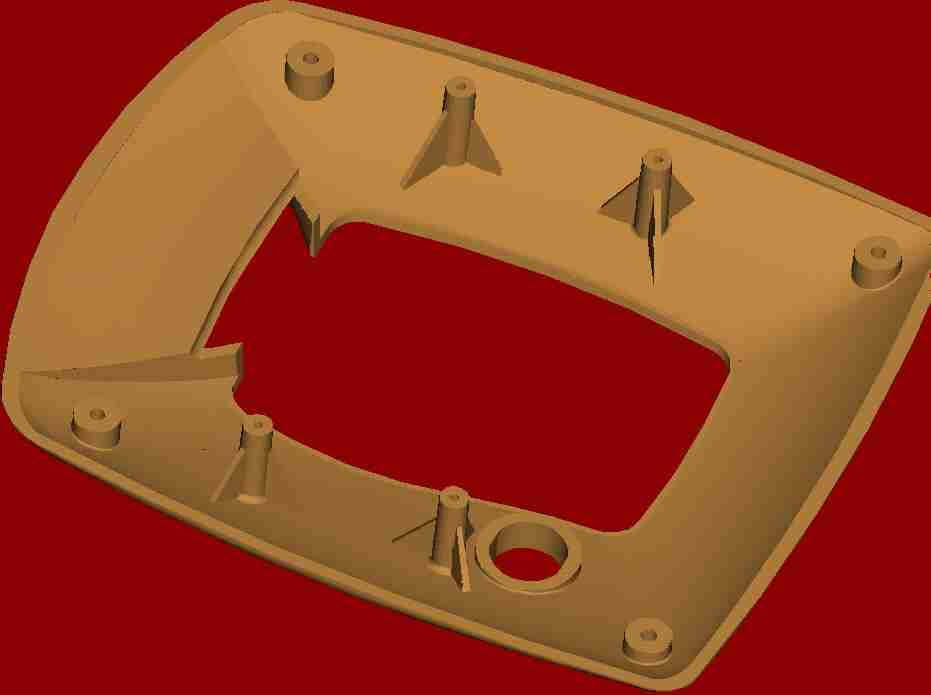

This is a jpeg from ProE of the bottom side of the part.

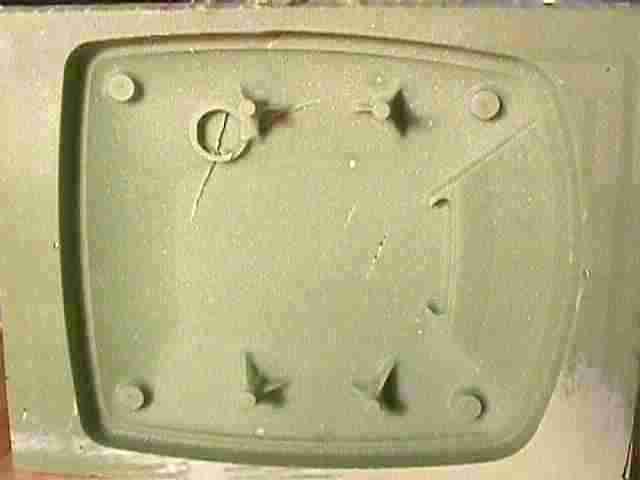

Here is the machined part. The cracks were in the ren shape material.

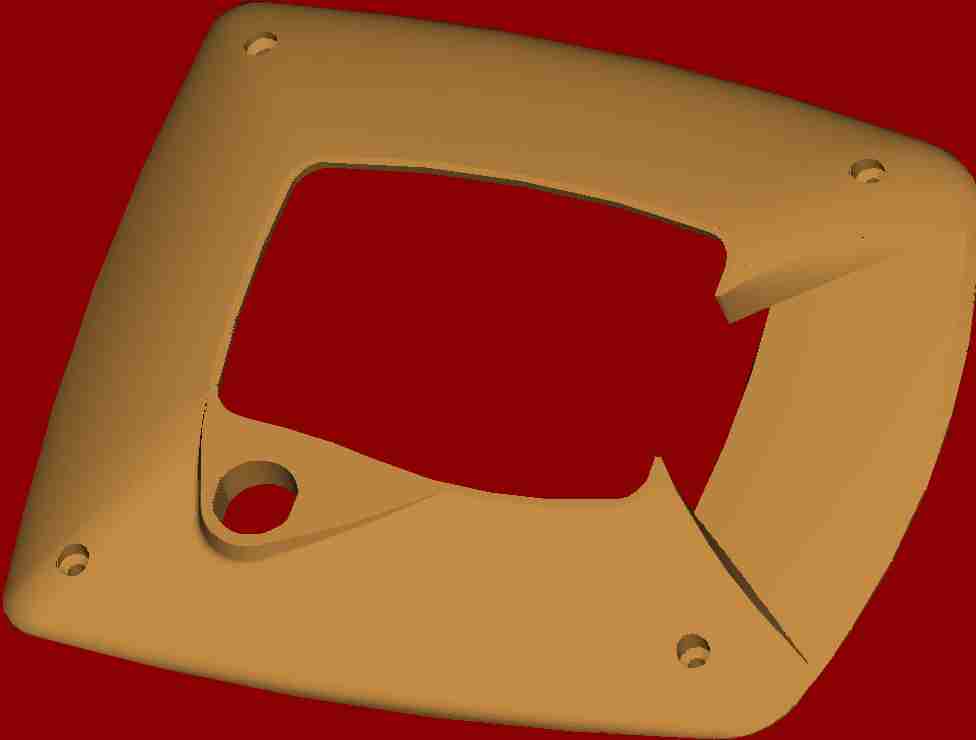

This is a ProE JPEG of the top of the part.

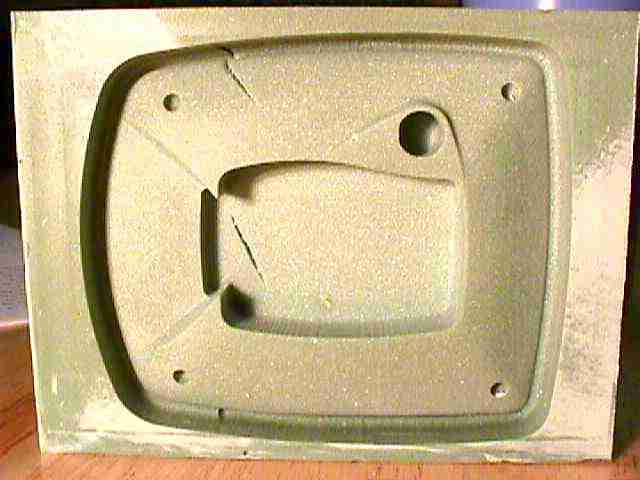

This is the machined top piece.

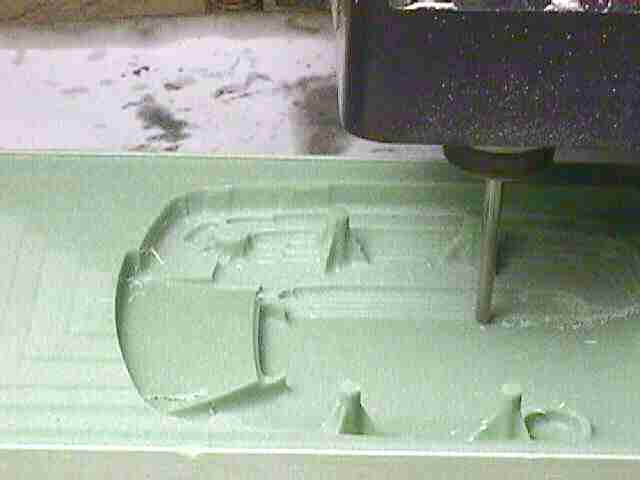

The bottom in process, 1/8 ball end mill.

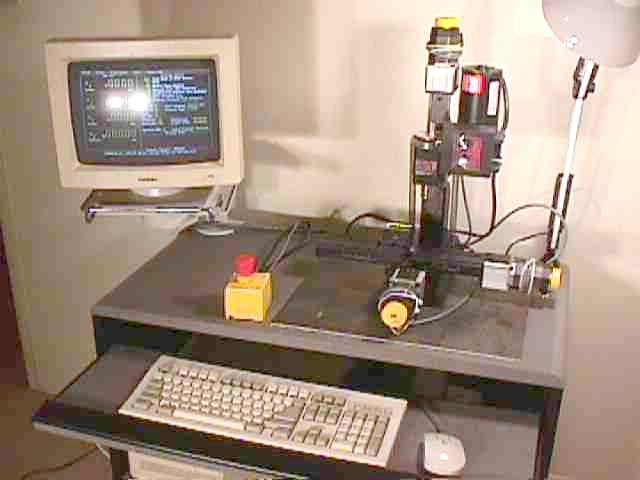

Here is the machine that was used to cut these parts. It is a standard Sherline 5400 mill, a GriffTek retrofit kit, and Ahha Artisan CNC.
